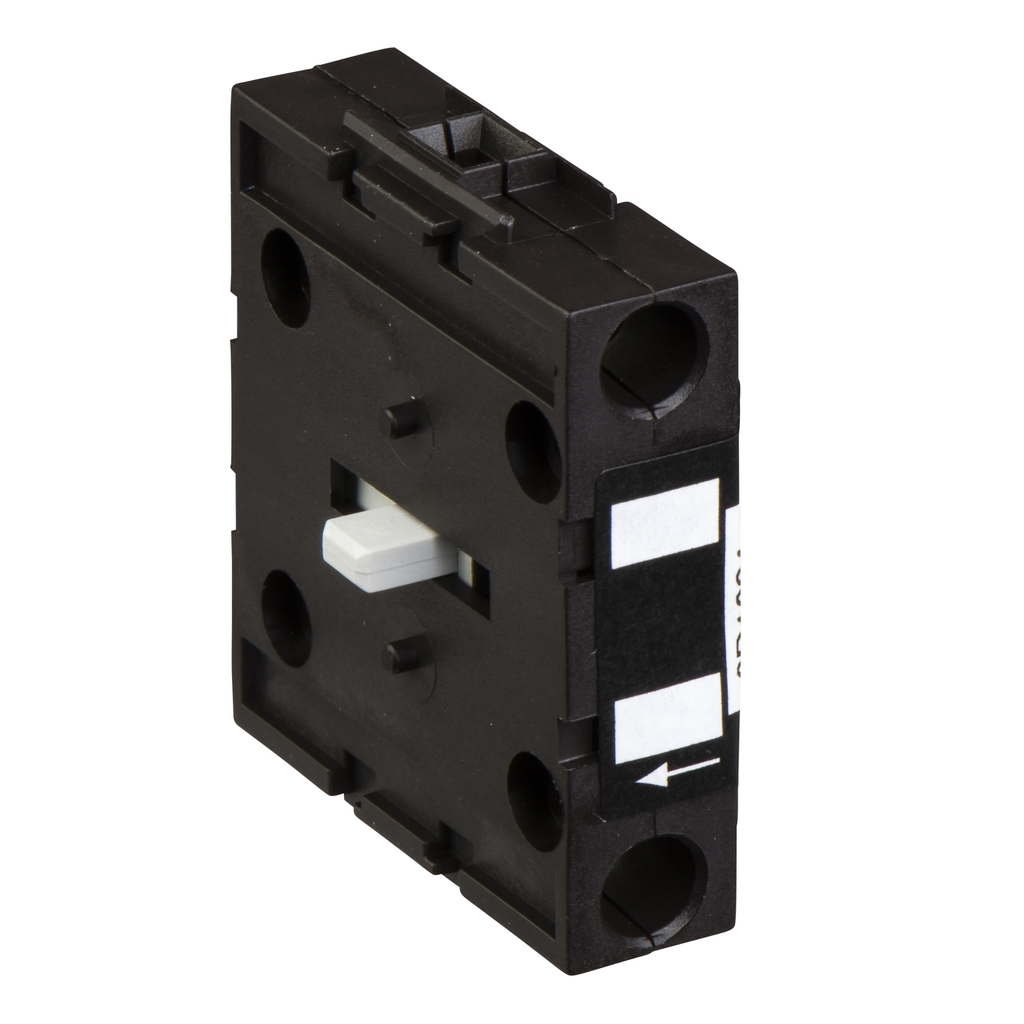

VZN20 is an add-on main pole module for TeSys Vario switch-disconnector from Schneider Electric. It is rated 20A 690V, compatible with switch types VN20. VZN20 is an add-on main pole module for TeSys Vario switch-disconnector from Schneider Electric. It is rated 20A 690V, compatible with switch types VN20. A maximum of 2 VZN20 main pole modules can be attached to a switch body VN20. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC). Add-on main pole module for Vario switch disconnector assemblies. Same AC and DC ratings as VN20 switch bodies. Other add-on modules available for VN20 switch bodies , neutral (VZN11), earthing (VZN14), auxiliary contacts (VZN05, VZN06).

• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Mounting Location : left, right
• Network Type : DC, AC
• Certificate Agency : GL, UL, CSA
• Connections - Terminals : power circuit screw clamp terminals 4-4 mm² flexible - with cable end, power circuit screw clamp terminals 4-4 mm² solid
• Carbon Footprint Of The Distribution Phase [A4] : 0.0023619537223242225, 0 kg CO2 eq.
• Carbon Footprint Of The End-of-life Phase [C1 To C4] : 0 kg CO2 eq., 0.04924551102448407
• Carbon Footprint Of The Installation Phase [A5] : 0.006060703945746572, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.1 kg CO2 eq., 0.12319508762000031
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 5 kg CO2 eq., 4.986699999999999
• Local Data Status : Publishable
• Local Publishable Date : 2026-06-27
• Return Indicator : N
• Stocking Flag : Y
• Stock Policy : 2
• Device Type : LV equipment - LV fuse - switch
• Serviceability : No
• Traceability : No
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1936
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Compatibility Code : main pole module
• Contacts Type And Composition : 1 NO
• Device Short Name : VZN
• Electrical Durability : 30000 cycles DC-1...550000 cycles AC-21
• Fire Resistance : 960 °C IEC 60695-2-1
• Mechanical Durability : 50000 cycles
• Mechanical Robustness : shocks 11 ms 15 gn) IEC 60068-2-27vibrations 10...150 Hz 1 gn) IEC 60068-2-6
• Network Frequency : 50/60 Hz
• Number Of Poles : 1P
• Performance Level : standard
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : additional pole
• Protective Treatment : TC
• Range : TeSys
• Returnability : No
• Software Version : v5.9.4
• Suitability For Isolation : yes
• Sustainable Packaging : No
• Tightening Torque : power circuit 0.7-0.7 N.m screw clamp terminals
• Total Lifecycle Carbon Footprint : 5 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Pep Code : ENVPEP2211017EN
• Database Version : 2022-01
• Pep Verification Date : 2025-08-05
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 690V and rated current 20A ensuring isolation characterized by rated voltage 6KV. This function is provided for 20 years.
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime, In Y : 20
• Energy Consumption On Product Lifetime, In Kwh : 74.6352
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; Production mix; Low voltage; CZ
• Energy Model - Installation [A5] : Electricity Mix; Production mix; Low voltage; FR
• Energy Model - Use [B6] : Electricity Mix; Production mix; Low voltage; FR
• Energy Model - End Of Life [C1-c4] : Electricity Mix; Production mix; Low voltage; FR
• Recyclability Potential, In % : 42
• Height Nominal : 45.5 mm
• Width Nominal : 12 mm
• [Ith] Conventional Free Air Thermal Current : 20 A
• [Ithe] Conventional Enclosed Thermal Current : 16 A
• [Ue] Rated Operational Voltage : 690 V AC 50/60 Hz
• [Uimp] Rated Impulse Withstand Voltage : 6 kV
• Nbr. Of Units In Pkg. : 1
• Package Weight(Lbs) : 22.0 g
• Take-back : No
• Warranty (In Months) : 18
• Customs Code : 8538908140
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Ambient Air Temperature For Operation : -20-50 °C, -20-50 °C
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Carbon Footprint : 5.167563256312554
• Environmental Disclosure : ENVPEP2211017EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP20 conforming to IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Product Compatibility : VN20
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2211017EN
• Pep Verification Date : 2025-08-05
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : additional pole
• ETIM
• ETIM 8 : EC000041
• ETIM 9 : EC000041
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Brazil, Czechia, France
• Depth : 39 mm
