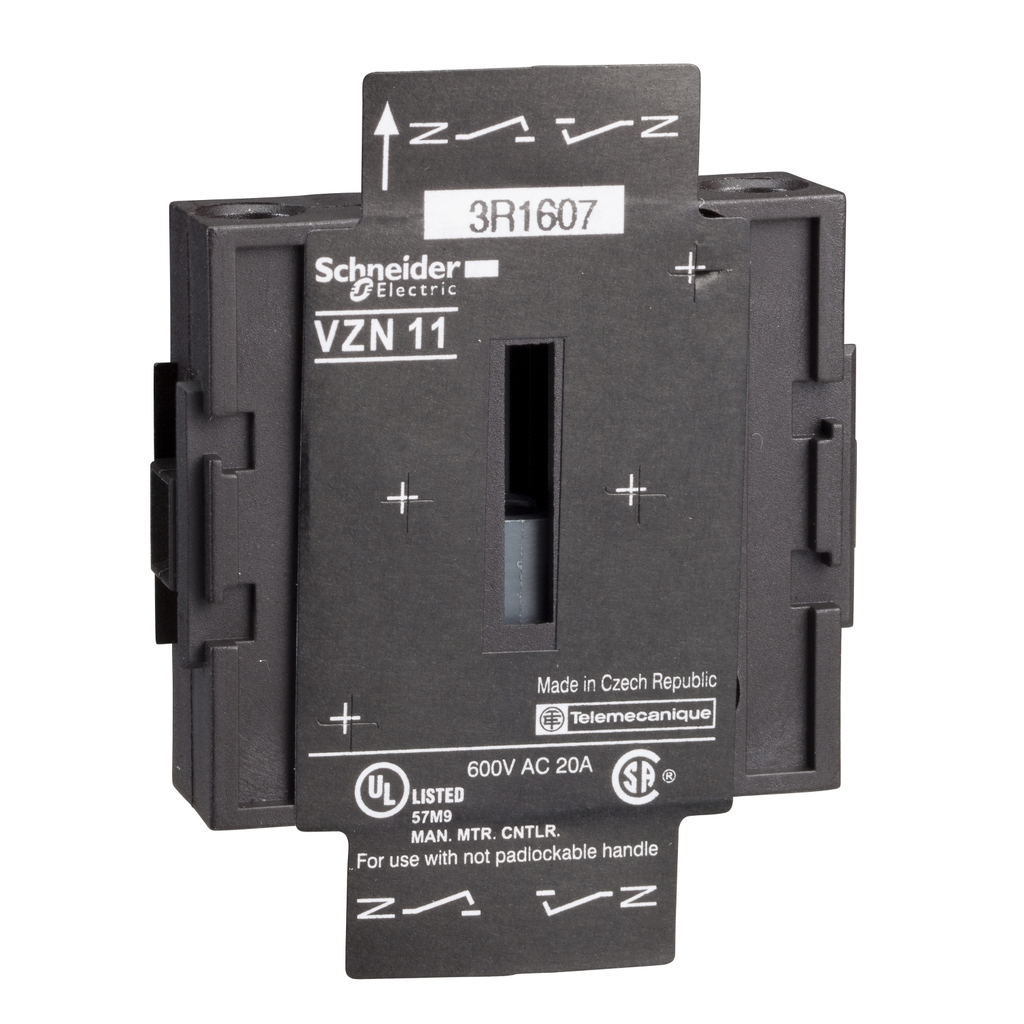

VZN11 is an add-on neutral pole module for TeSys Vario switch-disconnector from Schneider Electric. It is rated 12A to 20A 690V, compatible with switch types VN12 and VN20. VZN11 is an add-on neutral pole module for TeSys Vario switch-disconnector from Schneider Electric. It is rated 12A to 20A 690V, compatible with switch types VN12 and VN20. It behaves as an "early make" and "late break" contact. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC). Add-on neutral pole module for Vario switch disconnector assemblies. Rated 12A to 20A 690VAC to be used with VN12 and VN20 switch bodies. Other add-on modules available for VN12 and VN20 switch bodies , main poles (VZN12 and VZN20), earthing (VZN14), auxiliary contacts (VZN05, VZN06).

• Features
• Good stability of contacts designed with early make and late break action
• Compliance with multi standards and certified
• With numerous advantages to meet OEM’s most common needs
• Simple and reliable installation

• Complementary Attributes
• Ue Rated Operational Voltage : 690 V AC 50/60 Hz
• Uimp Rated Impulse Withstand Voltage : 6 kV
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Network Type : AC, DC
• Connections Terminals : screw clamp terminals 4-4 mm² flexible - with cable end, screw clamp terminals 4-4 mm² solid
• Certificate Agency : CSA, GL, UL
• Carbon Footprint Of The Distribution Phase A4 : 0.0023619537223242225, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.04924551102448407
• Carbon Footprint Of The Installation Phase A5 : 0.006060703945746572, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.1 kg CO2 eq., 0.12319508762000031
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 5 kg CO2 eq., 4.986699999999999
• Local Data Status : Publishable
• Local Publishable Date : 2026-06-27
• Return Indicator : N
• Device Type : LV equipment - LV fuse - switch
• Serviceability : No
• Traceability : No
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1936
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Compatibility Code : neutral pole module
• Contact Operation : early make, late break
• Contacts Type And Composition : 1 NO
• Device Short Name : VZN
• Electrical Durability : 30000 cycles DC-1...550000 cycles AC-21
• Fire Resistance : 960 °C IEC 60695-2-1
• Mechanical Durability : 50000 cycles
• Mechanical Robustness : vibrations 10...150 Hz 1 gn) IEC 60068-2-6shocks 11 ms 15 gn) IEC 60068-2-27
• Mounting Location : right
• Network Frequency : 50/60 Hz
• Number Of Poles : 1N
• Performance Level : standard
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : additional neutral block
• Protective Treatment : TC
• Range : TeSys
• Returnability : No
• Software Version : v5.9.4
• Sustainable Packaging : No
• Tightening Torque : 0.7-0.7 N.m screw clamp terminals
• Total Lifecycle Carbon Footprint : 5 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Database Version : 2022-01
• Data Source : extrapolated product
• Height Nominal : 45.5 mm
• Width Nominal : 12 mm
• Nbr. Of Units In Pkg. : 1
• Customs Code : 8538908180
• Ith Conventional Free Air Thermal Current : 20 A
• Ithe Conventional Enclosed Thermal Current : 16 A
• Warranty In Months : 18
• Functional Unit Description : Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 690V and rated current 20A ensuring isolation characterized by rated voltage 6KV. This function is provided for 20 years.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 20
• Energy Consumption On Product Lifetime In Kwh : 74.6352
• Recyclability Potential In % : 42
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Ambient Air Temperature For Operation : -20-50 °C, -20-50 °C
• Product Compatibility : VN12, VN20
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Carbon Footprint : 5.167563256312554
• Environmental Disclosure : ENVPEP2211017EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP20 conforming to IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2211017EN
• Pep Verification Date : 2025-08-05
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : additional neutral block
• ETIM
• ETIM 8 : EC000041
• ETIM 9 : EC000041
• ETIM 10 : EC000041
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Czechia
• Weight : 20 g
• Depth : 39 mm
