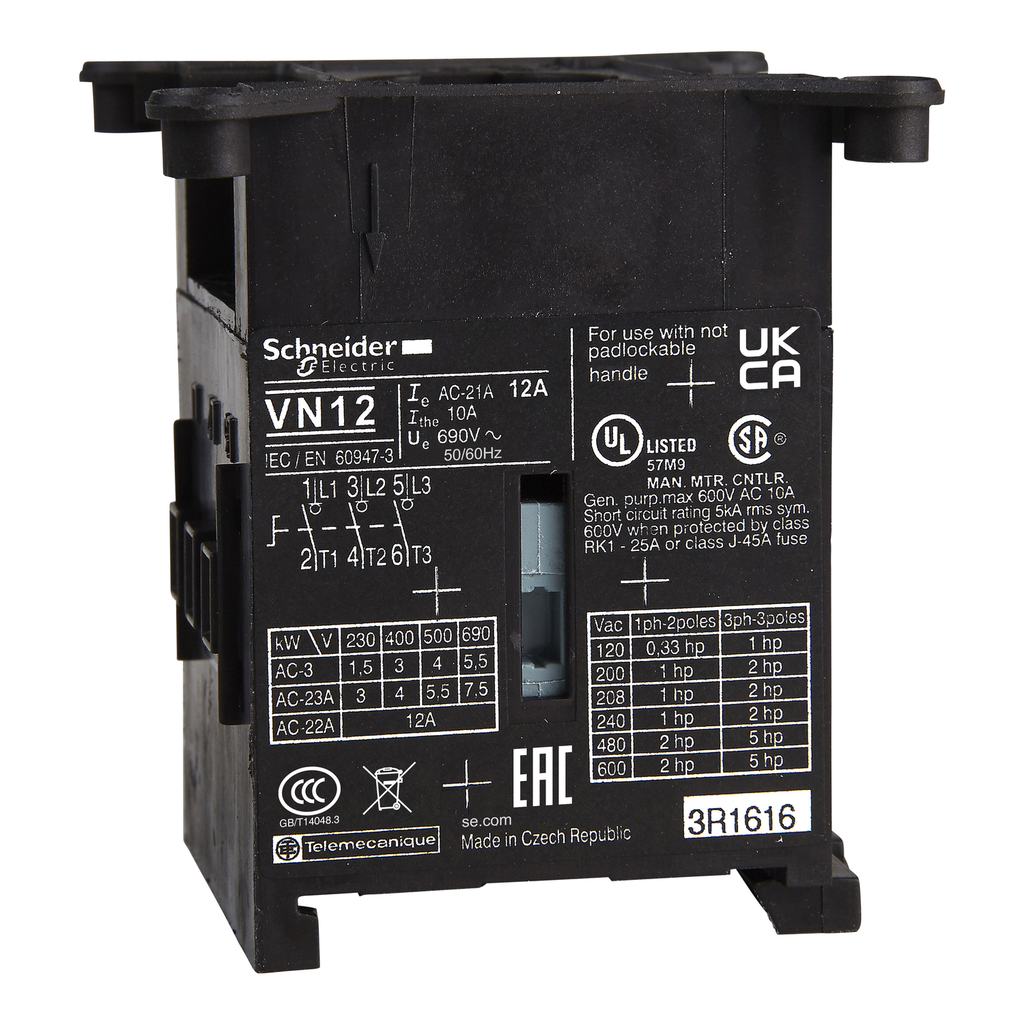

Switch body,TeSys Control,3 poles,12A,compact size

DISCONNECT SWITCH BODY 10 AMP

SQDVN12 VN12 785901335597
58.10 / EA
http://schema.org/OutOfStock
Mayer-DDS-Switch body,TeSys Control,3 poles,12A,compact size-1
  • Warranty Length: 18 mth
VN12 is a 3-pole switch body for TeSys Vario switch-disconnector from Schneider Electric for motor applications 4kW@400V AC-23. It requires an operating handle and extension shaft to form a complete unit for enclosure mounting. VN12 is a 3-pole switch body for TeSys Vario switch-disconnector from Schneider Electric. Rated 12A 690V, it is used in motor applications 4kW@400V AC-23. It requires an operating handle and extension shaft to form a main or emergency stop switch disconnector. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) can complete the assembly. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Vario 3-pole switch body for rotary switch disconnector assemblies. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 2 add-on poles (1 on each side) , main (VZN12), neutral (VZN11), earthing (VZN14), auxiliary (VZN05, VZN06).
QTY
  • Product Description
  • Specifications
VN12 is a 3-pole switch body for TeSys Vario switch-disconnector from Schneider Electric for motor applications 4kW@400V AC-23. It requires an operating handle and extension shaft to form a complete unit for enclosure mounting. VN12 is a 3-pole switch body for TeSys Vario switch-disconnector from Schneider Electric. Rated 12A 690V, it is used in motor applications 4kW@400V AC-23. It requires an operating handle and extension shaft to form a main or emergency stop switch disconnector. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) can complete the assembly. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Vario 3-pole switch body for rotary switch disconnector assemblies. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 2 add-on poles (1 on each side) , main (VZN12), neutral (VZN11), earthing (VZN14), auxiliary (VZN05, VZN06).
  • Complementary Attributes
    • Rated Conditional Short Circuit Current : 6 kA 400 V 12 A aM, 6 kA 400 V 12 A gG
    • Rated Operational Power In W : 3 kW 400...415 V AC-3), 4 kW 500 V AC-3), 4 kW 690 V AC-3), 1.5 kW 230...240 V AC-3), 5.5 kW 500 V AC-23A), 7.5 kW 690 V AC-23A), 3 kW 230...240 V AC-23A), 4 kW 400...415 V AC-23A)
    • ICM Rated Short Circuit Making Capacity : 0.5 kA 400 V at Ipeak
    • ICW Rated Short Time Withstand Current : 140 A 400 V 1 s
    • IE Rated Operational Current : 8.1 A AC-23)400 V
    • UE Rated Operational Voltage : 690 V AC 50/60 Hz
    • UIMP Rated Impulse Withstand Voltage : 6 kV
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM, OM8, PB
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Electrical Durability : 30000 cycles DC-1...5, 50000 cycles AC-21
    • Making Capacity : 120 A 400 V AC-21A, 120 A 400 V AC-22A, 120 A 400 V AC-23A
    • Mechanical Robustness : vibrations 10...150 Hz 5 gn) IEC 60068-2-6, shocks 11 ms 15 gn) IEC 60068-2-27
    • Network Type : DC, AC
    • Carbon Footprint Of The Distribution Phase A4 : 0.012990745472783224, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2708503106346624, 0.3 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.03333387170160615
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.7 kg CO2 eq., 0.6775729819100018
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 5 kg CO2 eq., 4.986699999999999
    • Connections Terminals : power circuit screw clamp terminals 4-4 mm² solid, power circuit screw clamp terminals 4-4 mm² flexible - with cable end
    • Add Ons : VZN11, VZN05
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-04-05
    • Device Type : LV equipment - LV switch - disconnector
    • Serviceability : No
    • Traceability : No
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Compatibility Code : V
    • Device Short Name : VN
    • Fire Resistance : 960 °C IEC 60695-2-1
    • Halogen Free Status : Halogen free product
    • Package Weight Lbs : 119.000 g
    • Performance Level : standard
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : switch body
    • Protective Treatment : TC
    • Range : TeSys
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Tightening Torque : power circuit 7-7 N.m screw clamp terminals
    • Total Lifecycle Carbon Footprint : 6 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • ICM Rated Short Circuit Making Capacity : 0.5 kA 400 V at Ipeak
    • ICW Rated Short Time Withstand Current : 140 A 400 V 1 s
    • IE Rated Operational Current : 8.1 A AC-23)400 V
    • ITH Conventional Free Air Thermal Current : 12 A
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2211017EN
    • Pep Verification Date : 2025-08-05
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 690V and rated current 20A ensuring isolation characterized by rated voltage 6KV. This function is provided for 20 years.
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
    • Product Manager : XINYUE LIU
