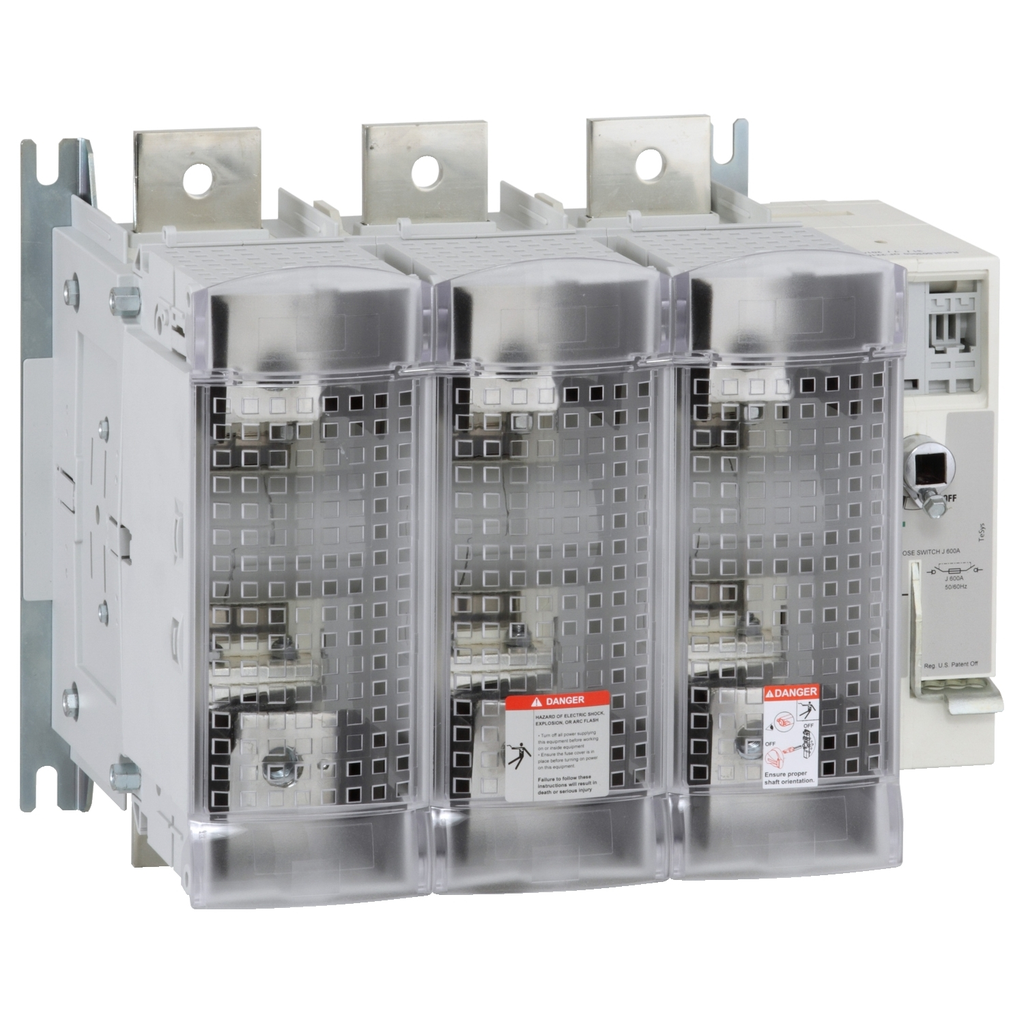

TeSys GS fuse switch-disconnector, 3 poles (3P), 600A/1000V, to be used with class J fuse links up to 600A, for motor applications up to 355kW@400V AC-23. To be equipped with an external front side mounting operating handle GS2AH (several models available). Screw terminals to be equipped with upstream and downstream 3P terminal shrouds GS1AP73 (to be ordered separately), it provides high short circuit current rating 200kA@600V. Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately). UL/CSA certified.

• Prop 65
• WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

• Environment
• Ambient Air Temperature For Operation : -20-70 °C
• Height : 300 mm
• Standards : CSA C22.2 No 4 || UL98
• Net Weight : 29 kg
• Ambient Air Temperature For Storage : -40-80 °C
• Ip Degree Of Protection : IP20 IEC 60529 with terminal cover)
• Fire Resistance : 960 °C body
• Width : 364 mm
• Depth : 250 mm
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2003010EN
• Packaging Without Single Use Plastic : No
• Toxic Heavy Metal Free : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc : Yes
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : ENVEOLI2003010EN
• Take-Back : No
• Eu Rohs Directive : Compliant
• Complementary
• Type Of Operating Handle : external frontal
• Mounting Support : plate
• Connections - Terminals : power circuit lugs-ring terminals 2 150-150 mm² || power circuit bars 100-100 mm²
• [Uimp] Rated Impulse Withstand Voltage : 12 kV
• Short-Circuit Withstand : 200 kA
• Tightening Torque : power circuit 35-35 N.m
• Specifications
• Country of Origin : France
• Width : 364 mm
• Height : 300 mm
• Weight : 29 kg
• Network Frequency : 50/60 Hz
• Fuse Size : J
• [Ith] Conventional Free Air Thermal Current : 600 A (at 40 °C)
• Network Type : AC || DC
• Protected Poles Description : 3t
• Product Or Component Type : switch-disconnector-fuse
• Product Name : TeSys GS
• Range : TeSys
• Contacts Type And Composition : 3 NO
• [Ie] Rated Operational Current : 600 A AC-22A || 600 A AC-23A
• Fuse Type : UL
• Poles Description : 3P
• Device Short Name : GS2S
