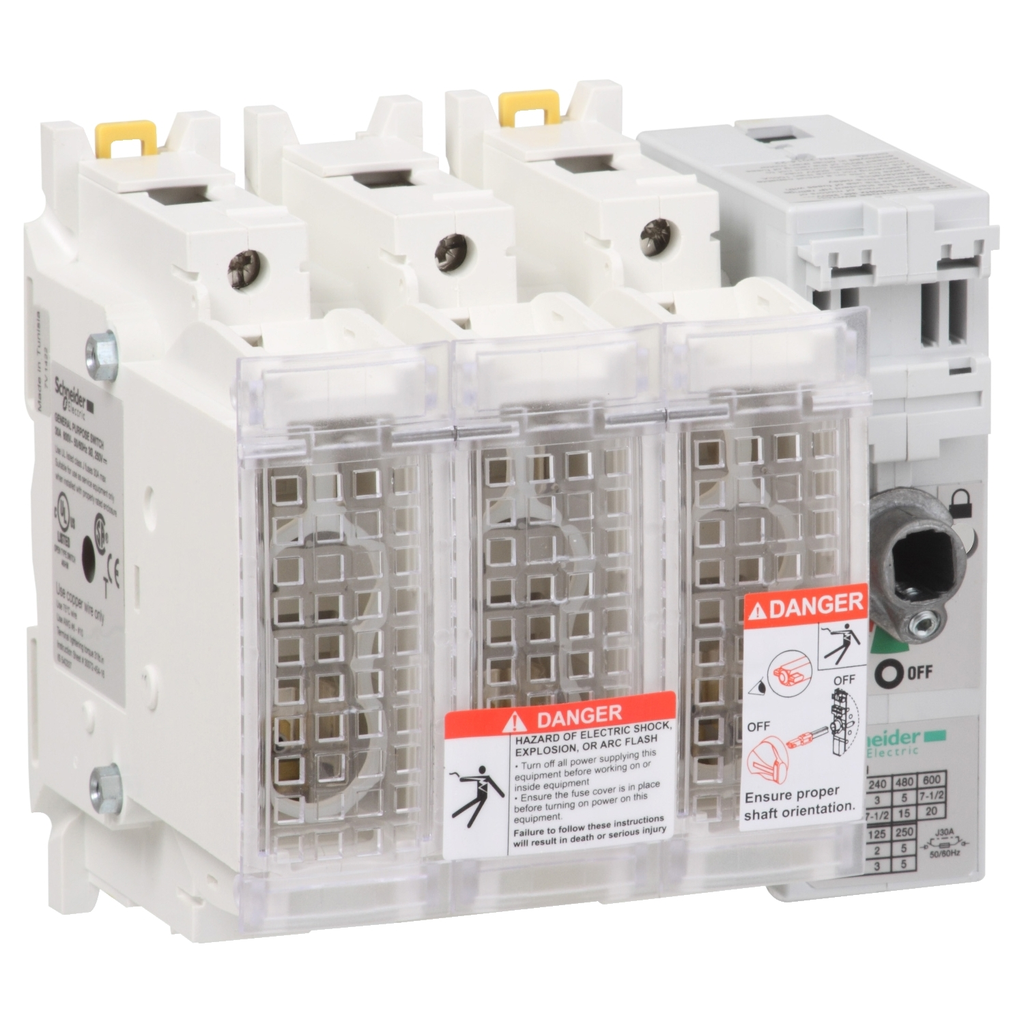

TeSys GS fuse switch-disconnector, 3 poles (3P), 30A/750V, to be used with class J fuse links up to 30A, for motor applications up to 15kW@400V AC-23. To be equipped with an external front side mounting operating handle GS2AH (several models available).

• Connections Terminals
• power circuit lugs-ring terminals 2-13 mm²
• Mounting Support
• rail
• plate
• Prop 65
• WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Standards
• UL98
• CSA C22.2 No 4
• Ip Degree Of Protection
• IP20 IEC 60529 with terminal cover)
• Rated Operational Power In W
• 15 kW 400 V
• 18.5 kW 500 V
• 25 kW 690 V
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Fire Resistance
• 960 °C body
• Persona Type Ids
• EU
• LC
• OM
• OM8
• PB
• Tightening Torque
• power circuit 6.6-6.6 N.m
• Ith Conventional Free Air Thermal Current
• 30 A (at 40 °C)
• Network Type
• DC
• AC
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL

• Physical Attributes
• Fuse Size : J
• Complementary Attributes
• Short Circuit Withstand : 17.6 kA
• Ie Rated Operational Current : 30 A
• Ui Rated Insulation Voltage : 750 V
• Uimp Rated Impulse Withstand Voltage : 8 kV
• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : Equipped with an external front side mounting operating handle
• B2B Bullet Point 2 : Lockable with door interlock
• B2B Bullet Point 3 : To be used with class J fuse links
• B2B Bullet Point 4 : High short circuit performance up to 100 KA
• B2B Bullet Point 5 : Robust and compact handles
• B2B Bullet Point 6 : Effective protection thanks to fuse speed fusion
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• ETIM 10 : EC001040
• Device Type : LV equipment - LV fuse - switch
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• WEEE Applicability : Finished product
• WEEE Scope : In
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2003008EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1911
• ROHS Eur Full Compliance Status : Compliant
• ROHS Eur Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : A - SELECTED - PCE ONLY (Migration)
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Contacts Type And Composition : 3 NO
• Device Short Name : GS2EU
• Electrical Durability : 6000 cycles
• Energy Efficiency Optimized : False
• Fuse Type : UL
• Mechanical Durability : 10000 cycles
• Network Frequency : 50/60 Hz
• Package Weight Lbs : 2.1 kg
• Poles Description : 3P
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : switch-disconnector-fuse
• Protected Poles Description : 3t
• Range : TeSys
• Returnability : Yes
• Short Circuit Withstand : 17.6 kA
• Sustainable Packaging : No
• Type Of Operating Handle : external frontal
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Ie Rated Operational Current : 30 A
• General Attributes
• Product Or Component Type : switch-disconnector-fuse
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=402914699&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Operation : -20-70 °C
• Ambient Air Temperature For Storage : -40-80 °C
• Circularity Profile : ENVEOLI2003008EN
• Environmental Disclosure : ENVPEP2003008EN
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Specifications
• Country of Origin : Tunisia
• Height : 5.35 in
• Width : 5.88 in
• Depth : 4.84 in
