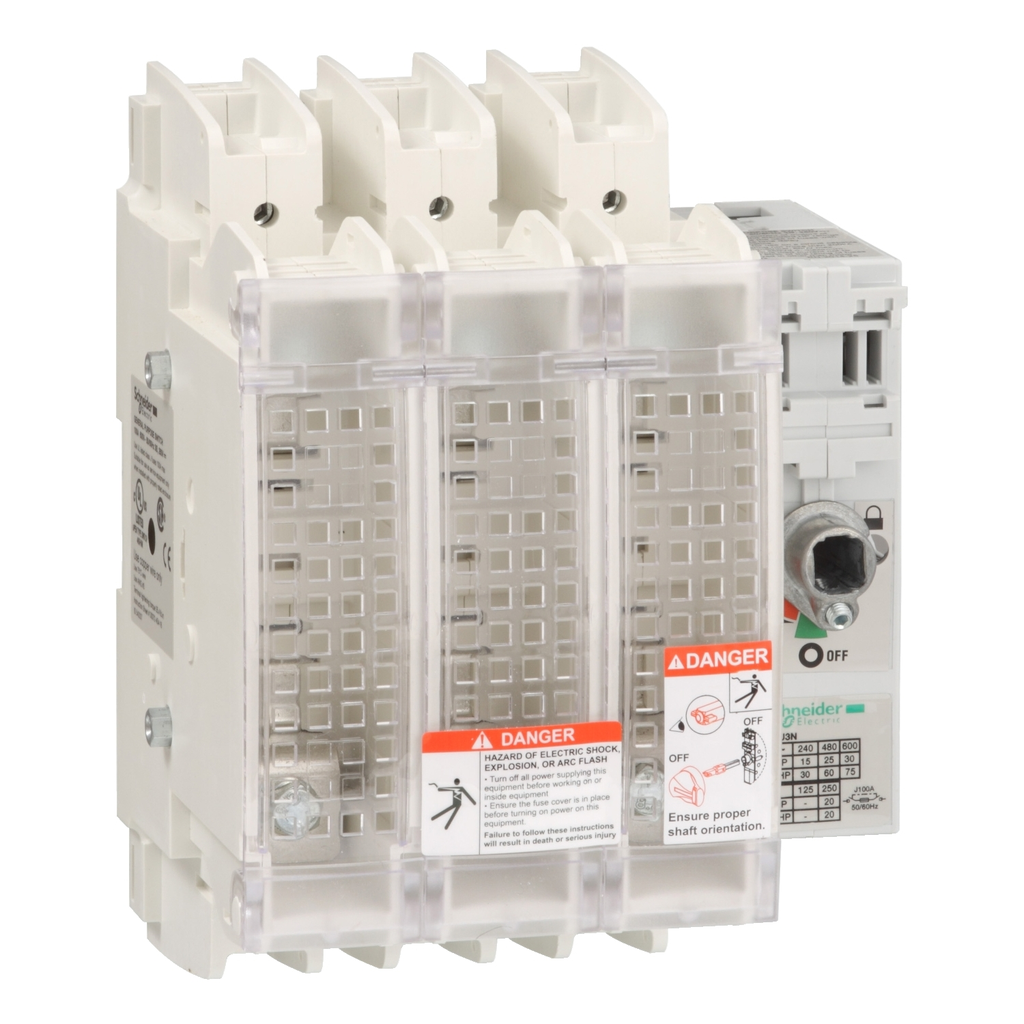

TeSys GS fuse switch-disconnector, 3 poles (3P), 100A/750V, to be used with class J fuse links up to 100A, for motor applications up to 51kW@400V AC-23. To be equipped with an external front side mounting operating handle GS2AH (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 200kA@600V. Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately). UL/CSA certified.

• Prop 65
• WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

• Environment
• Ambient Air Temperature For Operation : -20-70 °C
• Height : 186 mm
• Standards : CSA C22.2 No 4 || UL98
• Net Weight : 2.761 kg
• Ambient Air Temperature For Storage : -40-80 °C
• Ip Degree Of Protection : IP20 IEC 60529 with terminal cover)
• Fire Resistance : 960 °C body
• Width : 149.3 mm
• Depth : 122.2 mm
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2003009EN
• Packaging Without Single Use Plastic : No
• Toxic Heavy Metal Free : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc : Yes
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : ENVEOLI2003009EN
• Take-Back : No
• Eu Rohs Directive : Compliant
• Complementary
• Type Of Operating Handle : external frontal
• Mounting Support : plate
• Connections - Terminals : lugs-ring terminals || power circuit bars 34-42 mm²
• [Uimp] Rated Impulse Withstand Voltage : 8 kV
• Short-Circuit Withstand : 200 kA
• [Ui] Rated Insulation Voltage : 750 V
• Electrical Durability : 6000 cycles
• Mechanical Durability : 10000 cycles
• Tightening Torque : power circuit 4-4 N.m
• Rated Operational Power In W : 51 kW 400 V || 63 kW 500 V || 90 kW 690 V
• Specifications
• Country of Origin : France
• Width : 149.3 mm
• Height : 186 mm
• Weight : 2.761 kg
• Network Frequency : 50/60 Hz
• Fuse Size : J
• [Ith] Conventional Free Air Thermal Current : 100 A (at 40 °C)
• Network Type : AC || DC
• Protected Poles Description : 3t
• Product Or Component Type : switch-disconnector-fuse
• Product Name : TeSys GS
• Range : TeSys
• Contacts Type And Composition : 3 NO
• [Ie] Rated Operational Current : 100 A
• Fuse Type : UL
• Poles Description : 3P
• Device Application : protection
• Device Short Name : GS2JU
