Enclosed Devices are designed for reliability and safety. Indoor NEMA type 1 and outdoor NEMA type 3R options are available. Enclosed Devices provide an easy installation for residential and commercial air conditioning systems and other single phase applications. Metallic and non-metallic enclosure options are available as well. This molded case switch is 100A and 2 pole. It has 10kA rating, 240VAC, and NEMA 1. This product is UL listed. QO and QOB miniature switches in an enclosure are UL listed under UL file E59921 and are CSA certified under file 025490_S_000 class 465204.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Specifications
• Country of Origin : Mexico

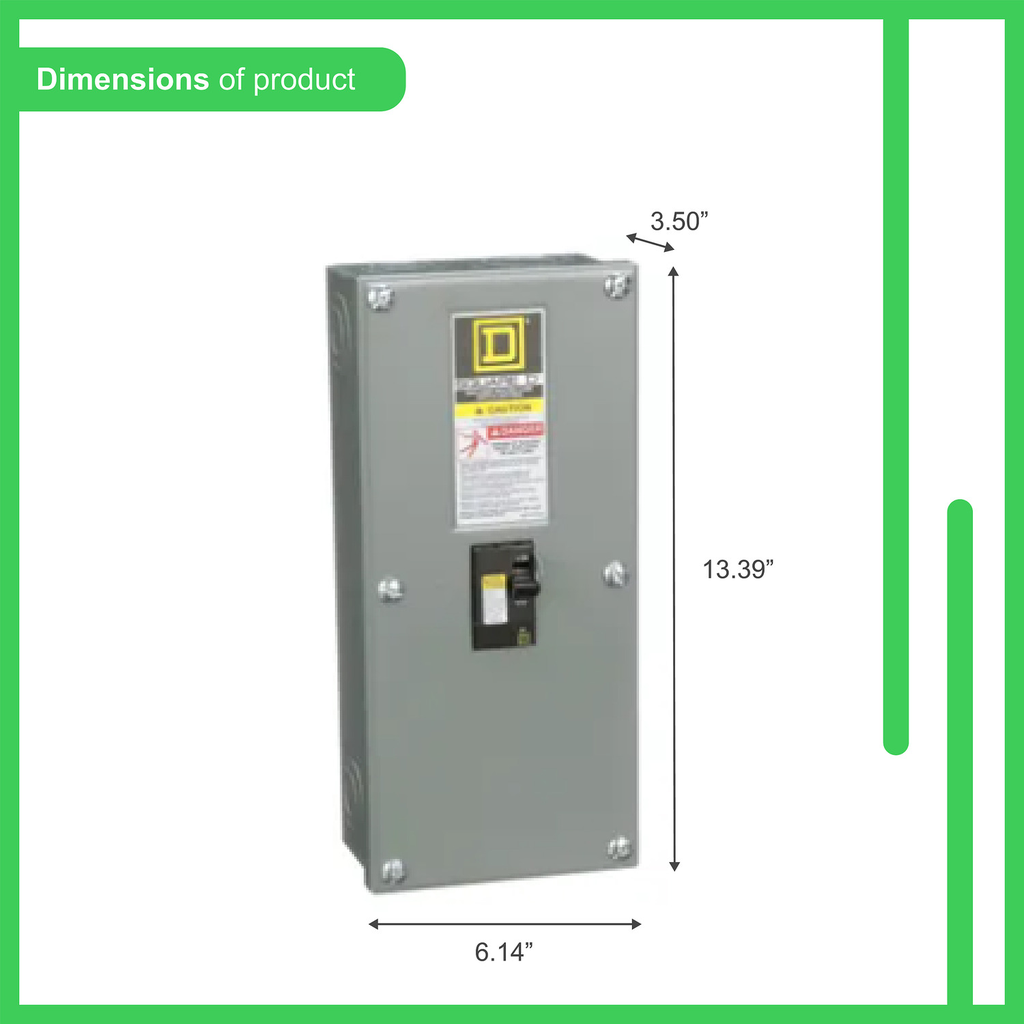

• Width : 156 mm
• Height : 340 mm
• Weight : 2.930 kg
• Range Of Product : QO
• Product Or Component Type : enclosed molded case switch
• Environmental data
• Packaging Made With Recycled Cardboard : No
• Environmental Disclosure : ENVPEP2212001
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Circularity Profile : N/A
• Take-Back : No
• Sustainable Packaging : No
• Eu Rohs Directive : Under investigation
• Complementary
• Product Certifications : UL Listed || CSA
• Height : 340 mm
• Net Weight : 2.930 kg
• Poles Description : 2P
• Line Rated Current : 100 A
• Width : 156 mm
• Depth : 89 mm
• Contractual warranty
• Warranty : 18 months
