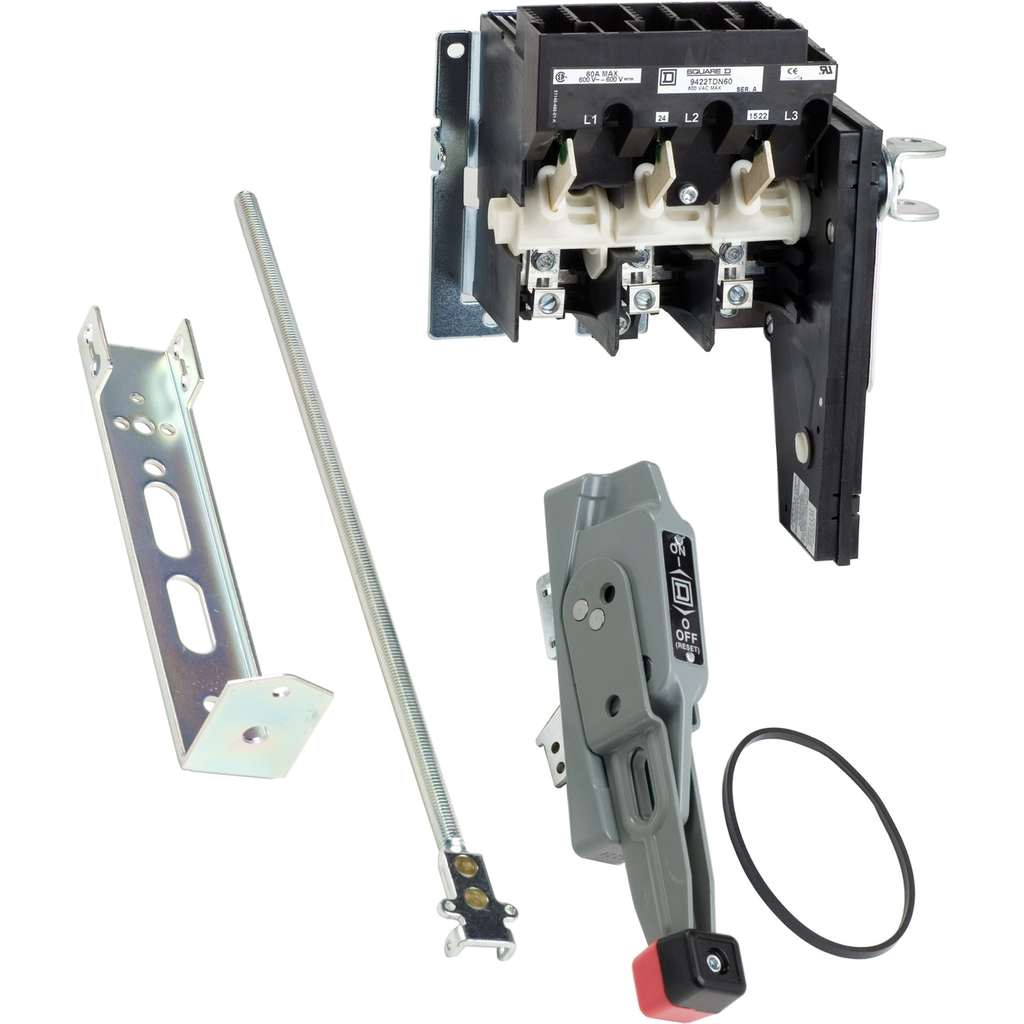

Operating mechanism, flange mounted, variable depth, 60A, 600V, no fuse, switch mechanism, 6 inch handle, NEMA 4

SQD 9422ATDN601 DISCONNECT SWI

SQD9422ATDN601 9422ATDN601 785901872177
621.32 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Operating mechanism, flange mounted, variable depth, 60A, 600V, no fuse, switch mechanism, 6 inch handle, NEMA 4-1
  • Country of Origin: Mexico
  • Warranty Length: 18 mth
9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch is without fuse clips. This 60 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 15 HP at 240 VAC, 30 HP at 480 VAC and 50 HP at 600 VAC. Switch is also rated for 10 HP at 250 VDC and 30 HP at 600 VDC when using two poles. 9422A1 operating handle is overpacked with this disconnect switch. Disconnect switch lugs are rated for #14 to #2 AWG with copper wire and #14 to #2 with aluminum wire. Disconnect switch is UL Component Recognized and CSA certified
QTY
  • Product Description
  • Features
  • Specifications
9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch is without fuse clips. This 60 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 15 HP at 240 VAC, 30 HP at 480 VAC and 50 HP at 600 VAC. Switch is also rated for 10 HP at 250 VDC and 30 HP at 600 VDC when using two poles. 9422A1 operating handle is overpacked with this disconnect switch. Disconnect switch lugs are rated for #14 to #2 AWG with copper wire and #14 to #2 with aluminum wire. Disconnect switch is UL Component Recognized and CSA certified
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : CSA || UL Recognized
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Take-Back : No
    • Pvc Free : Yes
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Provided Equipment : 6 in handle included NEMA 1/3/3R/4 enclosures sheet steel
    • Product Mounting : flange rod variable depth
    • Line Rated Current : 60 A
    • Maximum Horse Power Rating : 15 hp 200 V AC || 15 hp 230 V AC || 30 hp 460 V AC || 50 hp 575 V AC || 10 hp 250 V DC
  • Specifications
    • Country of Origin : Mexico
    • Disconnector Device Type : non-fusible disconnect switch
    • Range Of Product : 9422T
    • Product Or Component Type : Disconnect Switch
