SQUARE D

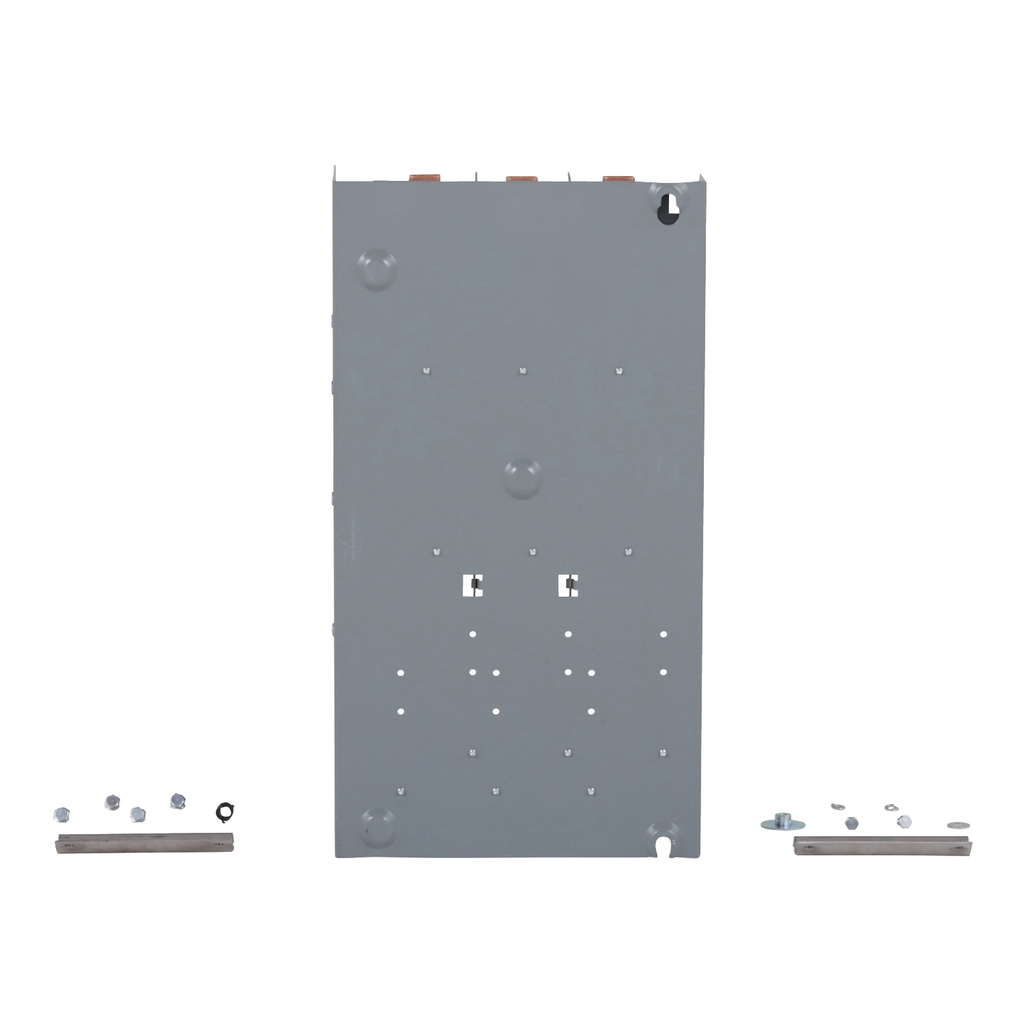

Operating mechanism, flange mounted, variable depth, 400A, 600V, H, K, J, R fuseholder, switch mechanism

DISCONNECT SWITCH 600VAC 400AM

SQD9422TG2 9422TG2 785901728412
3921.53 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Operating mechanism, flange mounted, variable depth, 400A, 600V, H, K, J, R fuseholder, switch mechanism-2
  • Country of Origin: Mexico
  • Fuse Type: H, J, K, R
  • Warranty Length: 18 mth
9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch will accept Class H, J, K or R fuses only. It has a rating of 400 Amps up to 250 V and 400 Amps up to 600 V. This 400 A disconnect switch is designed for flange mounting. The variable depth mounting range is 11.38 inches. Disconnect switch has horsepower ratings of 75 HP at 208 VAC, 125 HP at 240 VAC, 250 HP at 480 VAC and 350 HP at 600 VAC. Switch is also rated for 50 HP at 250 VDC and 50 HP at 600 VDC when using two poles. This disconnect switch uses 9422A operating handles. Handle is to be ordered seoparately. Disconnect switch is UL Component Recognized and CSA certified
QTY
  • Product Description
  • Features
  • Specifications
9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch will accept Class H, J, K or R fuses only. It has a rating of 400 Amps up to 250 V and 400 Amps up to 600 V. This 400 A disconnect switch is designed for flange mounting. The variable depth mounting range is 11.38 inches. Disconnect switch has horsepower ratings of 75 HP at 208 VAC, 125 HP at 240 VAC, 250 HP at 480 VAC and 350 HP at 600 VAC. Switch is also rated for 50 HP at 250 VDC and 50 HP at 600 VDC when using two poles. This disconnect switch uses 9422A operating handles. Handle is to be ordered seoparately. Disconnect switch is UL Component Recognized and CSA certified
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL Recognized || CSA
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : N/A
    • Take-Back : No
    • Pvc Free : Yes
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Provided Equipment : ordered separately
    • Product Mounting : flange rod variable depth
    • Associated Fuse Rating : 400 A 250/600 V
    • Fuse Type : R || K || J || H
    • Line Rated Current : 400 A
    • Maximum Horse Power Rating : 75 hp 200 V AC || 125 hp 230 V AC || 250 hp 460 V AC || 350 hp 575 V AC || 50 hp 250 V DC
  • Specifications
    • Country of Origin : Mexico
    • Disconnector Device Type : fusible disconnect switch
    • Range Of Product : 9422T
    • Product Or Component Type : Disconnect Switch
