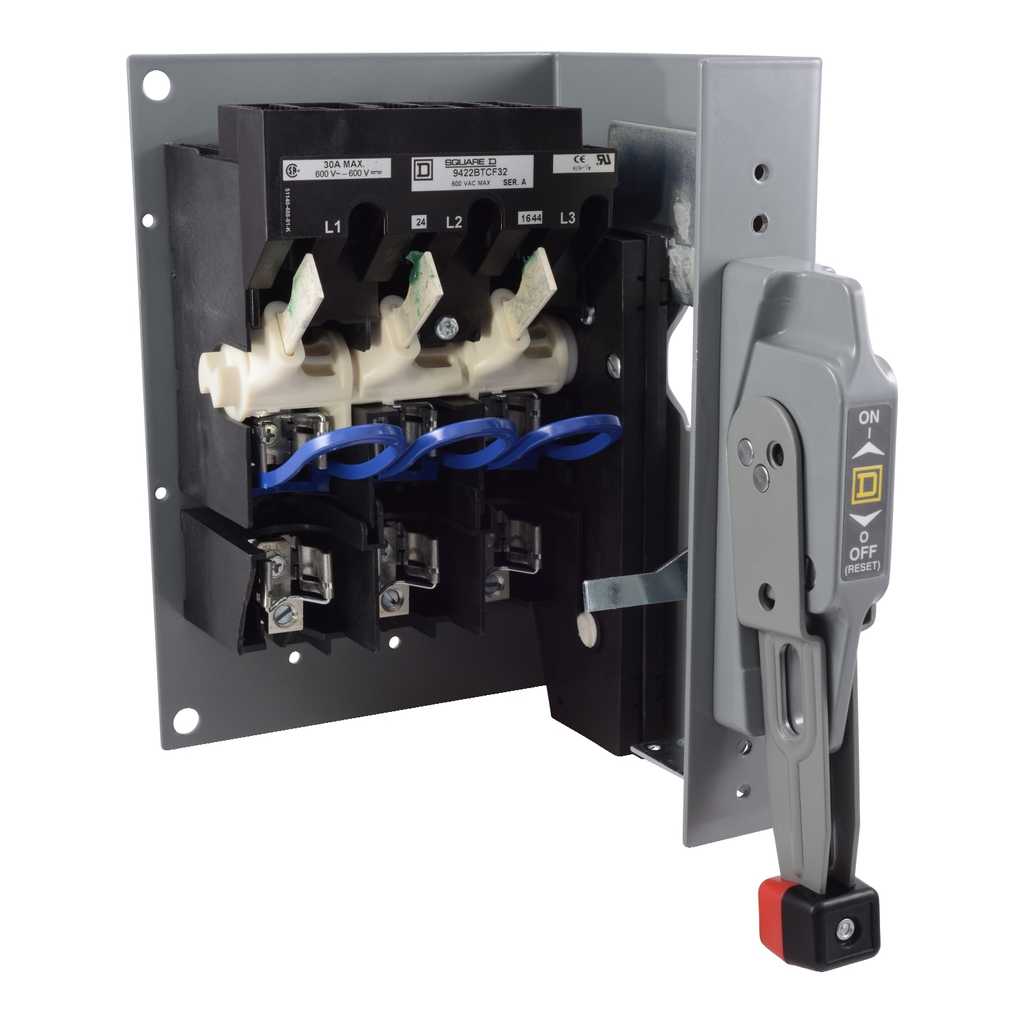

Bracket mount disconnect switches are designed for combiner boxes and control panel applications. The bracket mount disconnect switch is shipped with the switch and external handle assembled to a bracket, ready for quick installation. A protective trim plate is provided to prevent any mounting screws from being accessible from the front. These switches are fully compatible with the 9423 closing mechanisms. This disconnect switch will accept Class H, J, K or R fuses only. It has a rating of 60 Amps up to 250 V and 30 Amps up to 600 V. This bracket mount mount disconnect switch is rated at 30 A. Disconnect switch has horsepower ratings of 7.5 HP at 208 VAC, 7.5 HP at 240 VAC, 15 HP at 480 VAC and 20 HP at 600 VAC. Switch is also rated for 5 HP at 600 VDC. Disconnect switch lugs are rated for 14 AWG to 2 AWG copper or aluminum wire. Disconnect switch is UL component recognized and CSA certified.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Maximum Horse Power Rating
• 7.5 hp 200 V AC
• 7.5 hp 230 V AC
• 15 hp 460 V AC
• 20 hp 575 V AC
• 5 hp 250 V DC
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Persona Type Ids
• LC
• OM
• OM8
• PB
• Product Mounting
• bracket fixed depth
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Associated Fuse Rating
• 60 A 250 V
• 30 A 600 V

• Important Information Attributes
• B2B Bullet Point 1 : Used with all disconnect switch and circuit breaker installations
• B2B Bullet Point 2 : Designed for variable depth, flange mounting applications
• B2B Bullet Point 3 : Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure
• B2B Bullet Point 4 : Two mounting methods offered for flexibility
• B2B Bullet Point 5 : Disconnect switches were designed for control panel installations
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Device Type : LV equipment - LV fuse - switch
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 2541
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• China ROHS Label : 7
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Energy Efficiency Optimized : False
• Package Weight Lbs : 10.479 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : Disconnect Switch
• Provided Equipment : 6 in handle included
• Range Of Product : 9422T
• Returnability : No
• Sustainable Packaging : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : Disconnect Switch
• Provided Equipment : 6 in handle included
• Range Of Product : 9422T
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=565649&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• EU ROHS Directive : Compliant with Exemptions
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
