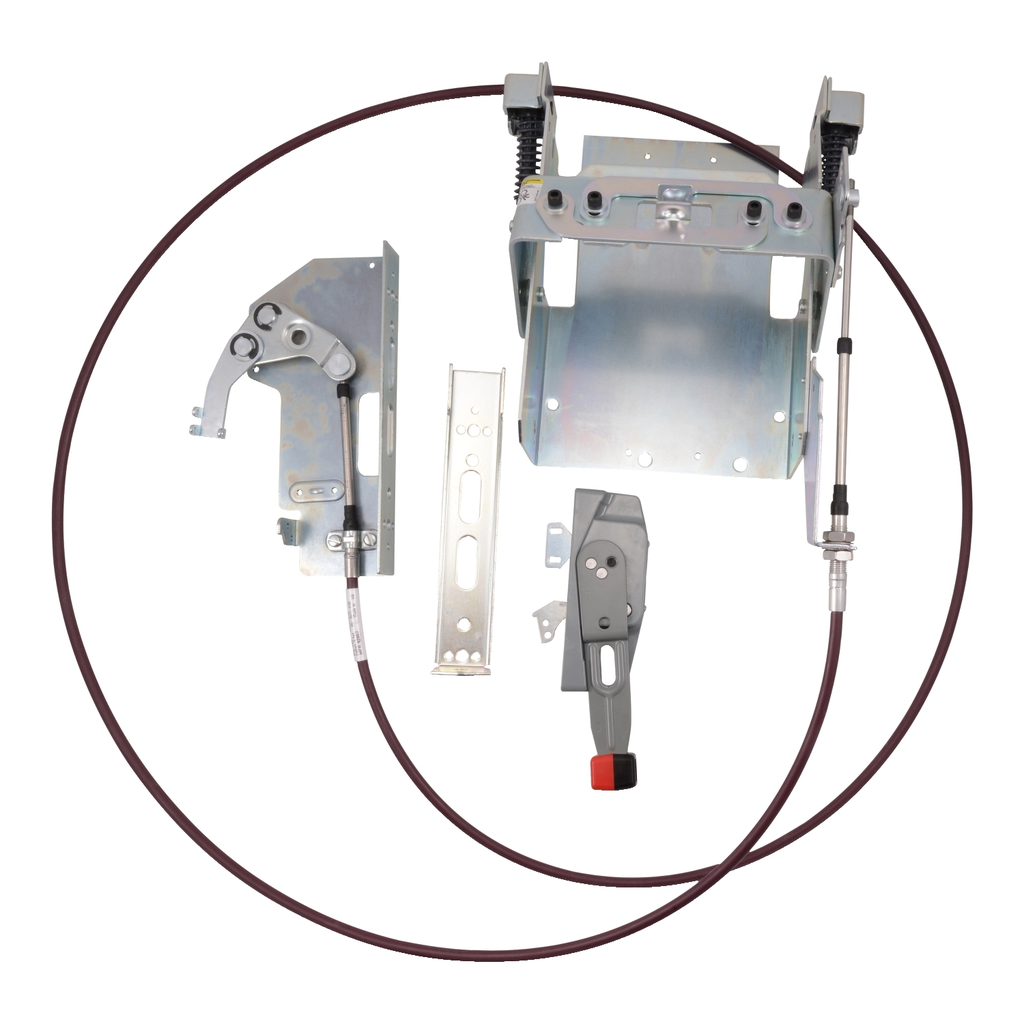

Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Mechanism will work with LAL, LHL and Q4L circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 400A. This mechanism has a 60 inch long cable. 9422A1 operating handle is overpacked with this disconnect switch. The handle is NEMA 1, 3, 3R and 12 rated. Cable operated mechanism is UL Component Recognized and CSA certified.

• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=9422_CLA_OUTLINE_001&p_File_name=9422_CLA_OUTLINE_001.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=9422_CLA_OUTLINE_001&p_File_name=9422_CLA_OUTLINE_001.dxf
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Circuit Breaker Name
• LAL/LHL 2
• LAL/LHL 3
• Q4L 2
• Q4L 3
• Persona Type Ids
• EU
• LC
• OM
• OM8
• PB
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL

• Important Information Attributes
• B2B Bullet Point 1 : Used with all disconnect switch and circuit breaker installations
• B2B Bullet Point 2 : Designed for variable depth, flange mounting applications
• B2B Bullet Point 3 : Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure
• B2B Bullet Point 4 : Two mounting methods offered for flexibility
• B2B Bullet Point 5 : Disconnect switches were designed for control panel installations
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 1545
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Energy Efficiency Optimized : False
• Package Weight Lbs : 6.372 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : Single Cable Operating Mechanism
• Range Of Product : 9422C
• Returnability : No
• Sustainable Packaging : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : Single Cable Operating Mechanism
• Range Of Product : 9422C
• Environment Attributes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
