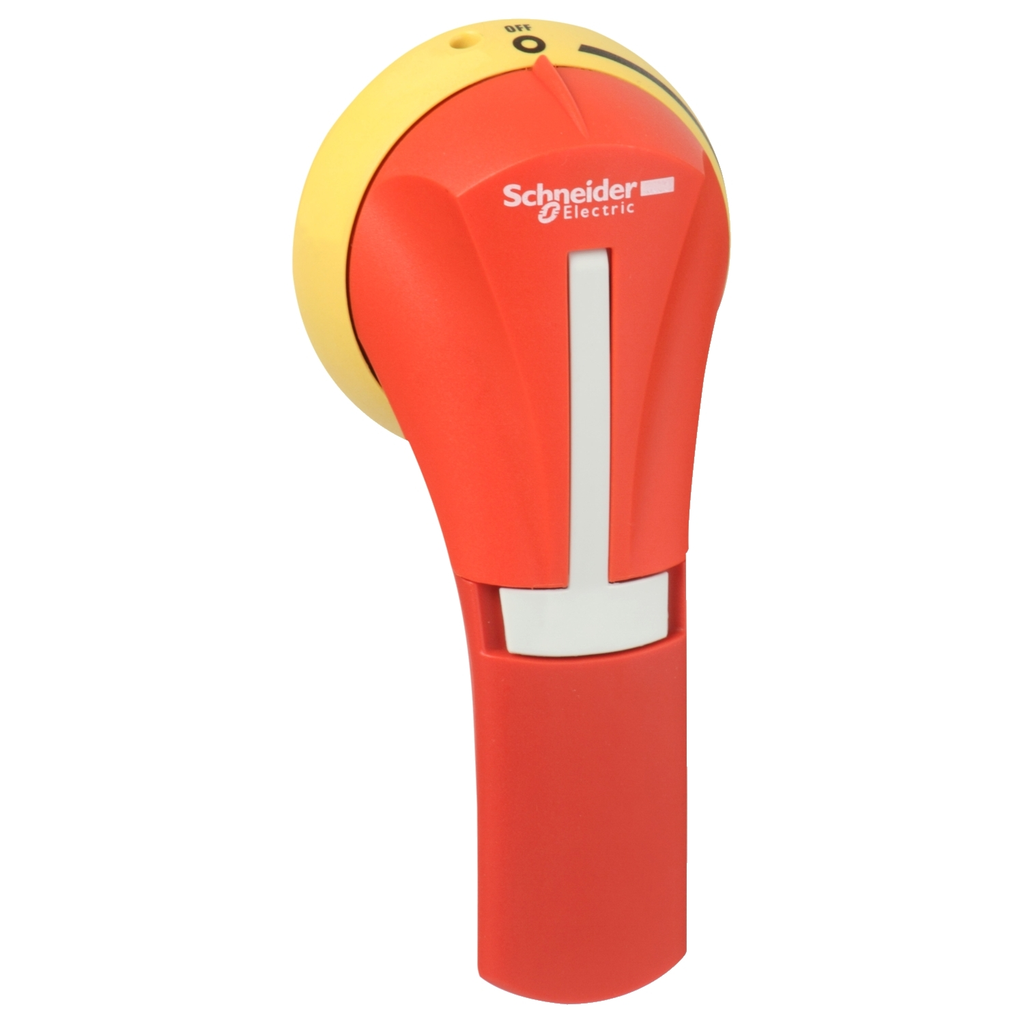

External rotary handle, TeSys GS, red handle, front mounting, 2 positions I-O, NEMA 4-4X, for GS 30-400A UL

HANDLE RED/YELLOW OFF ON

SQDGS2AH440 GS2AH440 3389119411882
91.83 / EA
http://schema.org/OutOfStock
Mayer-DDS-External rotary handle, TeSys GS, red handle, front mounting, 2 positions I-O, NEMA 4-4X, for GS 30-400A UL-1
  • Country of Origin: Tunisia
  • Handle Color: Red
  • Net Weight: 0.24 kg
  • Warranty Length: 18 mth
  • Weight: 0.24 kg
TeSys GS external operating handle for 3-pole 30-400A UL fuse switch-disconnectors GS2EEU, GS2EU, GS2GU, GS2JU, GS2MU, GS2QU. Black handle with grey front plate, padlockable, to be mounted on door of an enclosure with NEMA protection 1, 3R, 4, 4X, 12, for front side operation. To be completed with a shaft for external operator GS2AE, several lengths available (to be ordered separately).
QTY
  • Product Description
  • Features
  • Specifications
TeSys GS external operating handle for 3-pole 30-400A UL fuse switch-disconnectors GS2EEU, GS2EU, GS2GU, GS2JU, GS2MU, GS2QU. Black handle with grey front plate, padlockable, to be mounted on door of an enclosure with NEMA protection 1, 3R, 4, 4X, 12, for front side operation. To be completed with a shaft for external operator GS2AE, several lengths available (to be ordered separately).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Nema Degree Of Protection : NEMA 4/4X
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Recycled Metal Content At Cr Level : 0
    • Take-Back : No
    • Eu Rohs Directive : Compliant
  • Complementary
    • Standards : CSA || UL
    • Marking : O-I
    • Net Weight : 0.24 kg
    • Rotary Handle Padlocking : with
    • Line Rated Current : 30 A || 60 A || 100 A || 200 A || 400 A
  • Specifications
    • Country of Origin : Tunisia
    • Weight : 0.24 kg
    • Range Of Product : TeSys
    • Type Of Operating Handle : external frontal
    • Range Compatibility : TeSys TeSys GS GS2EU || TeSys TeSys GS GS2GU || TeSys TeSys GS GS2JU || TeSys TeSys GS GS2MU || TeSys TeSys GS GS2QU
    • Handle Front Plate Colour : yellow
    • Handle Colour : red
    • Product Or Component Type : rotary handle
    • Range : TeSys
    • Device Short Name : GS2AH
