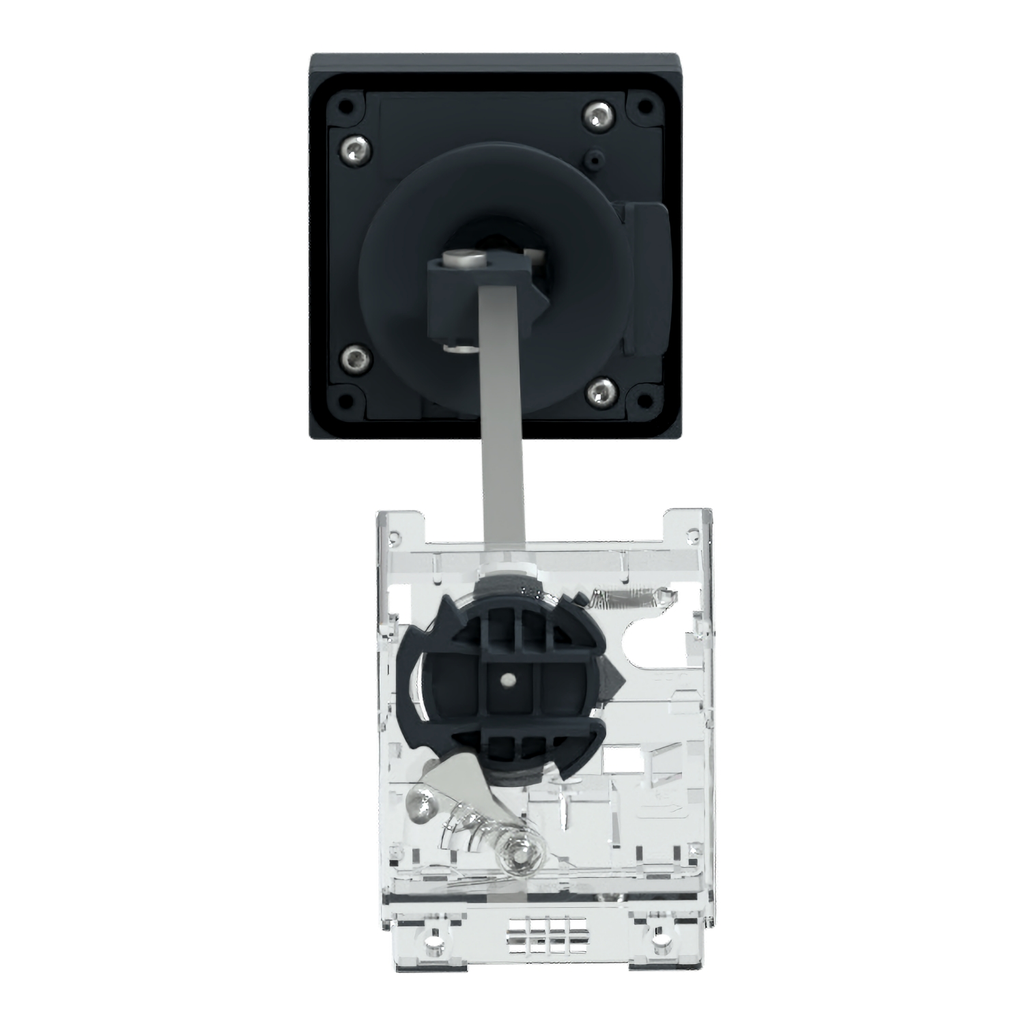

Extended rotary handle kit, TeSys Deca, IP65, black handle, without trip indication, for GV2L-GV2P

Extended rotary handle kit, TeSys Deca, IP65, black handle, without trip indication, for GV2L-GV2P

SQDGV2APN03 GV2APN03 3606481205391
155.76 / EA
http://schema.org/OutOfStock

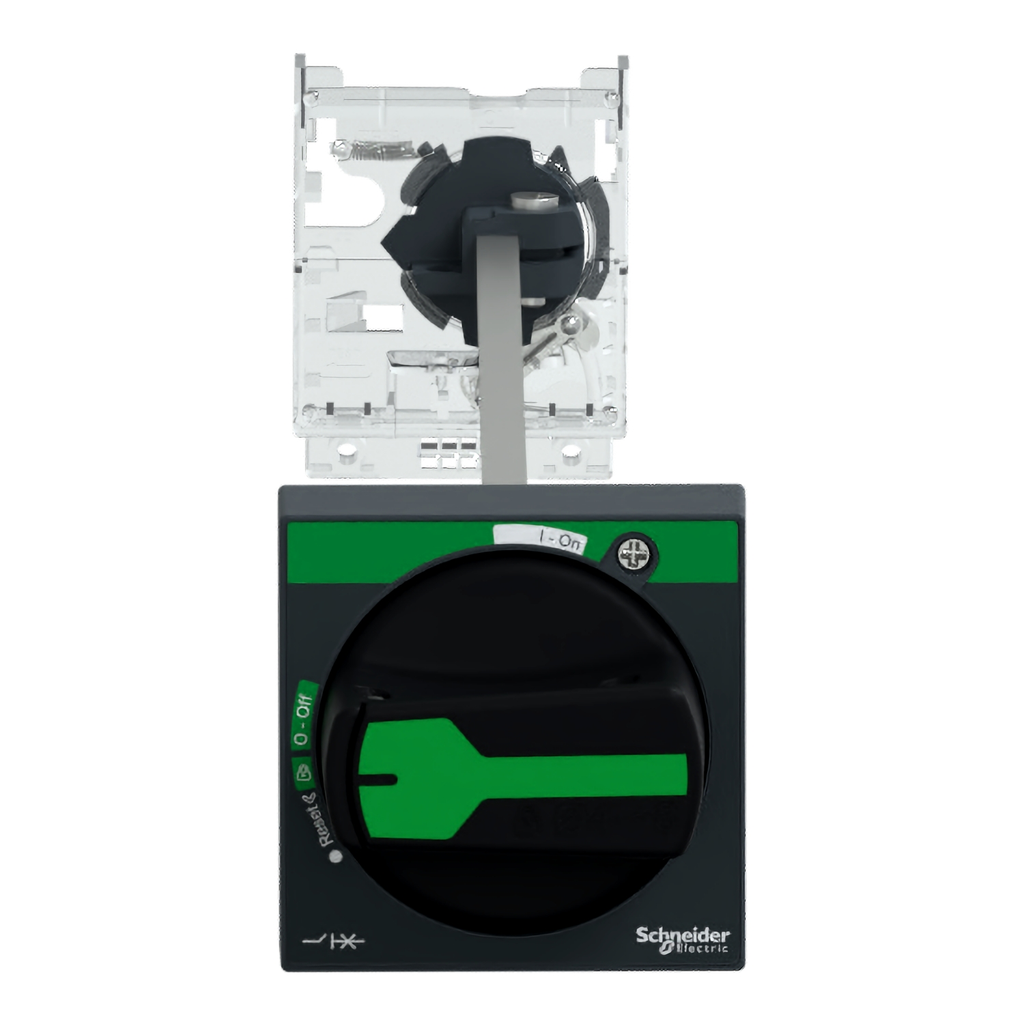

Mayer-DDS-Extended rotary handle kit, TeSys Deca, IP65, black handle, without trip indication, for GV2L-GV2P-1
  • Country of Origin: Czechia
  • Warranty Length: 18 mth
TeSys GV extended rotary handle, for motor circuit breakers GV2L, GV2P mounted inside an enclosure and to be operated externally. For main switch usage, it provides a black handle on grey front plate with indication of 2 positions OFF, ON. To be mounted on the door of the enclosure, the handle mechanism ensures an IP65 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 146-256mm). Padlockable in OFF or ON position with up to 3 padlocks (to be ordered separately). Locking in ON position does not prevent the circuit breaker from tripping (unlocking is required for fault reset).
QTY
  • Product Description
  • Features
  • Specifications
TeSys GV extended rotary handle, for motor circuit breakers GV2L, GV2P mounted inside an enclosure and to be operated externally. For main switch usage, it provides a black handle on grey front plate with indication of 2 positions OFF, ON. To be mounted on the door of the enclosure, the handle mechanism ensures an IP65 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 146-256mm). Padlockable in OFF or ON position with up to 3 padlocks (to be ordered separately). Locking in ON position does not prevent the circuit breaker from tripping (unlocking is required for fault reset).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Handle Color : black
    • Handle Front Plate Color : grey
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM, OM8, PB, SC
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-04-05
    • Return Indicator : Y
    • Stocking Flag : Y
    • Stock Policy : 1
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2207006
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 2030
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Compatibility Code : GV2AP
    • Device Short Name : GV2AP
    • Energy Efficiency Optimized : False
    • Locking Options Description : 1 to 3 padlocks
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : rotary handle kit
    • Range : TeSys
    • Range Of Product : TeSys Deca
    • Returnability : Yes
    • Rotary Handle Mounting Style : extended
    • Rotary Handle Padlocking : padlock in OFF position
    • Sustainable Packaging : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Handle Color : black
    • Handle Front Plate Color : grey
    • Accessory Separate Part Category : control accessory
    • Warranty In Months : 18
    • Pep Code : ENVPEP2207006EN
    • Offer Owner Code : 190788
    • Pn : 1
    • Certificate Agency : cULus
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Product Compatibility : GV2P, GV2L
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2207006
    • Environmental Disclosure : ENVPEP2207006EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP65
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2207006EN
  • General Attributes
    • Product Or Component Type : rotary handle kit
    • Range Of Product : TeSys Deca
  • ETIM
    • ETIM 8 : EC000230
    • ETIM 9 : EC000230
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Czechia
