Disconnect switch, TeSys VLS, 300 mm shaft extension, 7 mm shaft

11.81" SHAFT

SQDVLSS3007N VLSS3007N 3606481818331
27.44 / EA
http://schema.org/OutOfStock

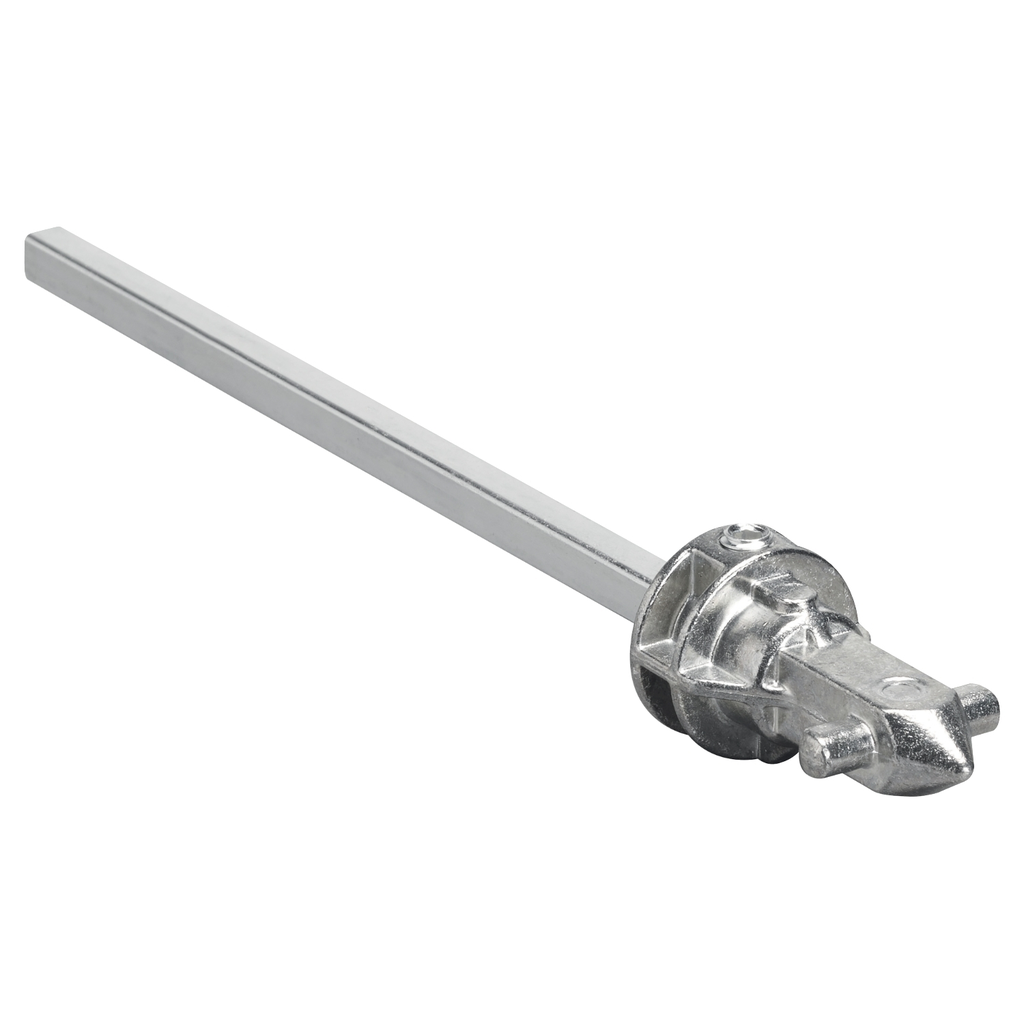

Mayer-DDS-Disconnect switch, TeSys VLS, 300 mm shaft extension, 7 mm shaft-1
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. Shaft extension is for rear-mounting handles VLSH3S7RD or VLSH3S7BD. It can also be used with a mechanical coupling system VLS8M2. This shaft extension is 0.28 inches by 0.28 inches and 11.81 inches long. The shaft extension weighs 0.40 lbs. The shaft extension is cULus Listed and meets IEC 60947-3 requirements.
QTY
  • Product Description
  • Specifications
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. Shaft extension is for rear-mounting handles VLSH3S7RD or VLSH3S7BD. It can also be used with a mechanical coupling system VLS8M2. This shaft extension is 0.28 inches by 0.28 inches and 11.81 inches long. The shaft extension weighs 0.40 lbs. The shaft extension is cULus Listed and meets IEC 60947-3 requirements.
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM, OM8, PB
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Compatibility Code : VLS
    • Device Short Name : VLSS
    • Energy Efficiency Optimized : False
    • Package Weight Lbs : 164.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : shaft extension
    • Range : TeSys
    • Range Compatibility : TeSys TeSys VARIO LS VLSH
    • Returnability : Yes
    • Sustainable Packaging : No
    • Product Kit Identifier : N
    • Product Manager : STEVEN NATALE
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • General Attributes
    • Product Or Component Type : shaft extension
