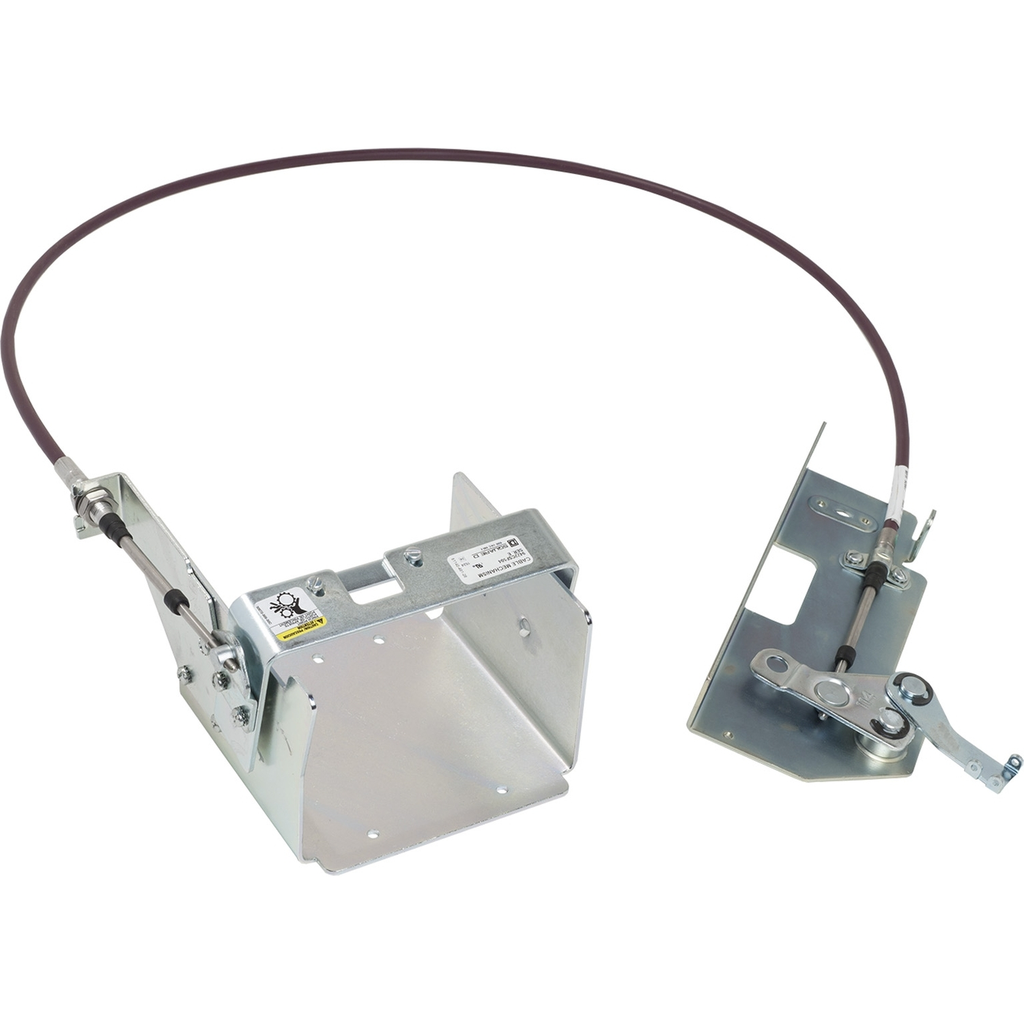

Disconnect mechanism, circuit breaker, cable operated, 250A, 4 poles, MG-NSF circuit breaker, 60 inch cable

OPERATING MECHANISM CABLE MECH

SQD9422CSF504 9422CSF504 785901928294
370.15 / EACH
http://schema.org/OutOfStock
  • Cable Length: 60 in
  • Country of Origin: Mexico
  • Warranty Length: 18 mth
Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Mechanism will work with MG-NSF circuit breakers. This mechanism can be used with 250A 4 pole MG-NSF circuit breakers. This mechanism has a 60 inch long cable. A 9422A operating handle is ordered separately. Cable operated mechanism is UL Component Recognized and CSA certified
QTY
  • Product Description
  • Features
  • Specifications
Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Mechanism will work with MG-NSF circuit breakers. This mechanism can be used with 250A 4 pole MG-NSF circuit breakers. This mechanism has a 60 inch long cable. A 9422A operating handle is ordered separately. Cable operated mechanism is UL Component Recognized and CSA certified
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Toxic Heavy Metal Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Take-Back : No
    • Pvc Free : Yes
    • Sustainable Packaging : No
    • Eu Rohs Directive : Compliant
  • Complementary
    • Number Of Cables : 1
    • Cable Length : 60 in
    • Circuit Breaker Name : MG-NSF 4
    • Provided Equipment : ordered separately
  • Specifications
    • Country of Origin : Mexico
    • Range Of Product : 9422C
    • Product Or Component Type : Single Cable Operating Mechanism
  • Contractual warranty
    • Warranty : 18 months
