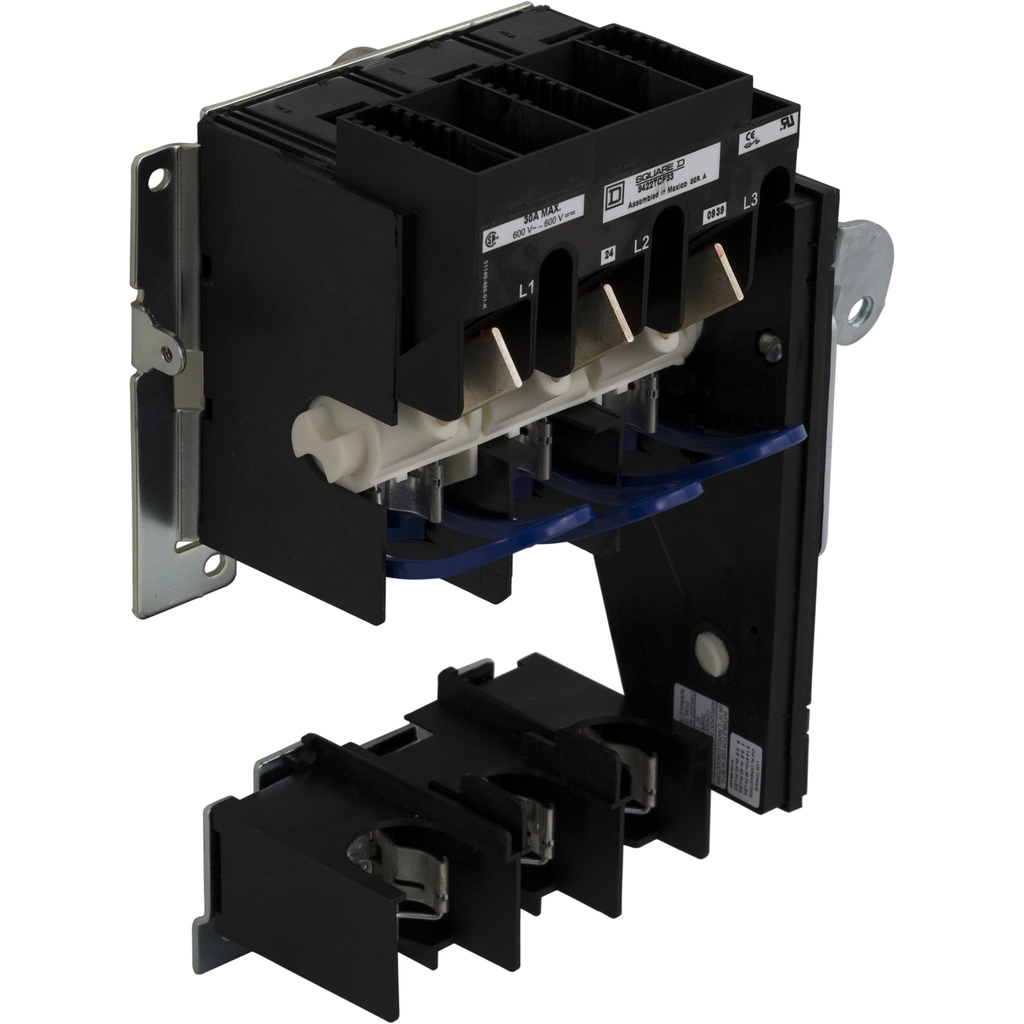

Disconnect switch, 9422T, fixed flange rod depth, max 30A rated, 20hp at 575VAC, fuse type J/K/H/R

DISCONNECT SWITCH 600VAC 30A N

SQD9422FTCF33 9422FTCF33 785901162186
628.21 / EA
http://schema.org/OutOfStock
Mayer-DDS-Disconnect switch, 9422T, fixed flange rod depth, max 30A rated, 20hp at 575VAC, fuse type J/K/H/R-1
  • Fuse Type: H, J, K, R
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Prop 65
    • "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
  • Environment
    • Product Certifications : UL Recognized || CSA
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Take-Back : No
    • Pvc Free : Yes
  • Complementary
    • Provided Equipment : ordered separately
    • Product Mounting : flange rod fixed depth
    • Associated Fuse Rating : 60 A 250 V || 30 A 600 V
    • Fuse Type : J || K || H || R
    • Line Rated Current : 30 A
    • Maximum Horse Power Rating : 7.5 hp 200 V AC || 7.5 hp 230 V AC || 15 hp 460 V AC || 20 hp 575 V AC || 5 hp 250 V DC
  • Specifications
    • Country of Origin : Mexico
    • Disconnector Device Type : fusible disconnect switch
    • Range Of Product : 9422T
    • Product Or Component Type : Disconnect Switch
