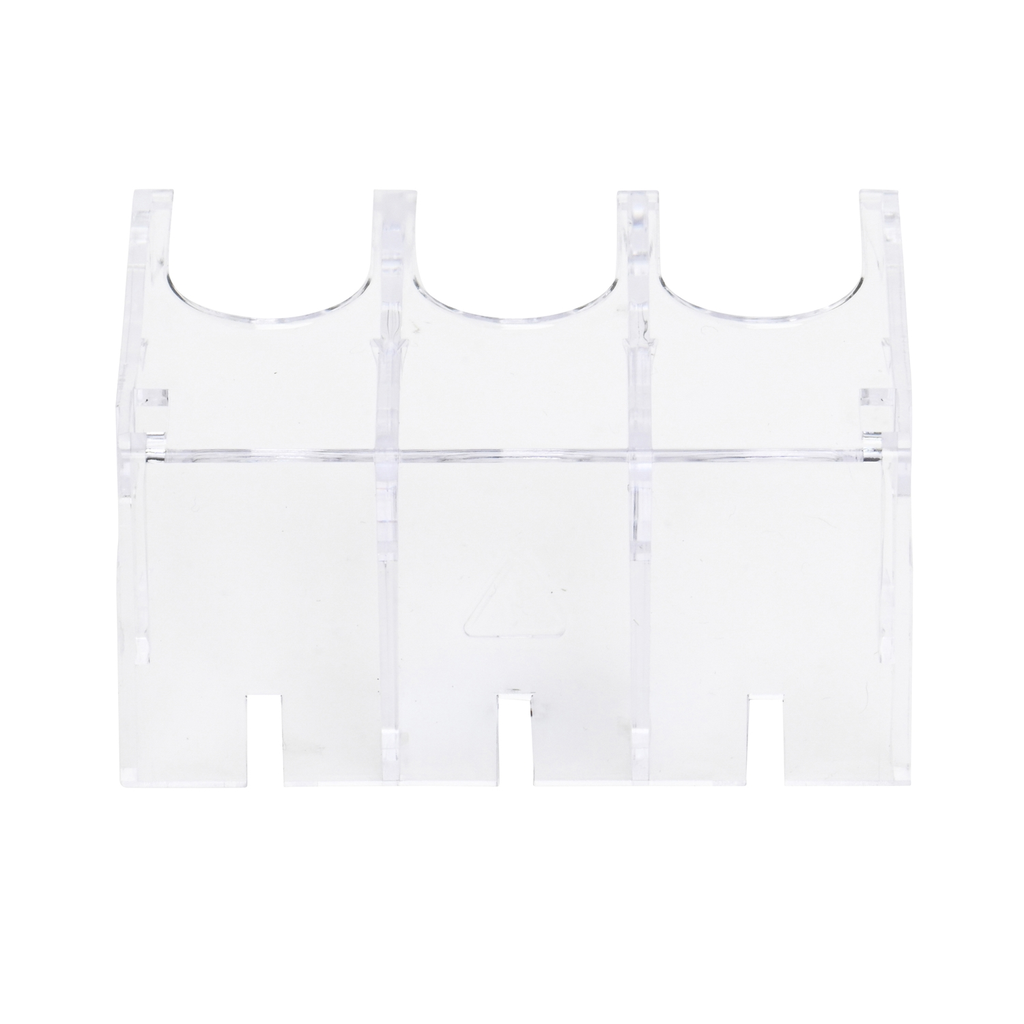

Disconnect switch, Tesys VLS, set of 2 terminal covers, for 3 pole unit terminals, 30A to 125A devices

3 POLE TERMINAL COVER FOR 63-1

SQDVLSC3P2 VLSC3P2 3606481157133
51.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Disconnect switch, Tesys VLS, set of 2 terminal covers, for 3 pole unit terminals, 30A to 125A devices-1
  • Depth: 46 mm
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This protective terminal cover is for the three poles of the main VLS disconnect switch. This protective cover can be added to a VLS3P032R2, VLS3P063R2, VLS3P080R2, VLS3P100R2 or VLS3P125R2 DIN rail mount disconnect switch. This protective cover can be added to a VLS3P032D2, VLS3P063D2, VLS3P080D2, VLS3P100D2 or VLS3P125D2 door mount disconnect switch. Each package has two of these terminal protective covers. This protective terminal cover is 1.46 inches tall, 2.76 inches wide and 1.81 inches deep. The switch weighs 0.07 lbs. This protective cover is cULus Listed and meets IEC 60947-3 requirements.
QTY
  • Product Description
  • Specifications
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This protective terminal cover is for the three poles of the main VLS disconnect switch. This protective cover can be added to a VLS3P032R2, VLS3P063R2, VLS3P080R2, VLS3P100R2 or VLS3P125R2 DIN rail mount disconnect switch. This protective cover can be added to a VLS3P032D2, VLS3P063D2, VLS3P080D2, VLS3P100D2 or VLS3P125D2 door mount disconnect switch. Each package has two of these terminal protective covers. This protective terminal cover is 1.46 inches tall, 2.76 inches wide and 1.81 inches deep. The switch weighs 0.07 lbs. This protective cover is cULus Listed and meets IEC 60947-3 requirements.
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-03-26
    • Return Indicator : Y
    • Stocking Flag : Y
    • Stock Policy : 1
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1943
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • China Rohs Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Device Short Name : VLSC
    • Energy Efficiency Optimized : False
    • Fixing Mode : clipped
    • Poles Description : 3P
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : terminal cover
    • Quantity Per Set : set of 2
    • Range : TeSys
    • Returnability : Yes
    • Sustainable Packaging : No
    • Accessory Separate Part Category : protection accessory
    • Warranty In Months : 18
    • Offer Owner Code : 190788
    • Height Nominal : 37 mm
    • Width Nominal : 70 mm
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • General Attributes
    • Product Or Component Type : terminal cover
  • ETIM
    • ETIM 8 : EC002498
    • ETIM 9 : EC002498
  • Specifications
    • Country of Origin : Italy, United States
    • Depth : 46 mm
