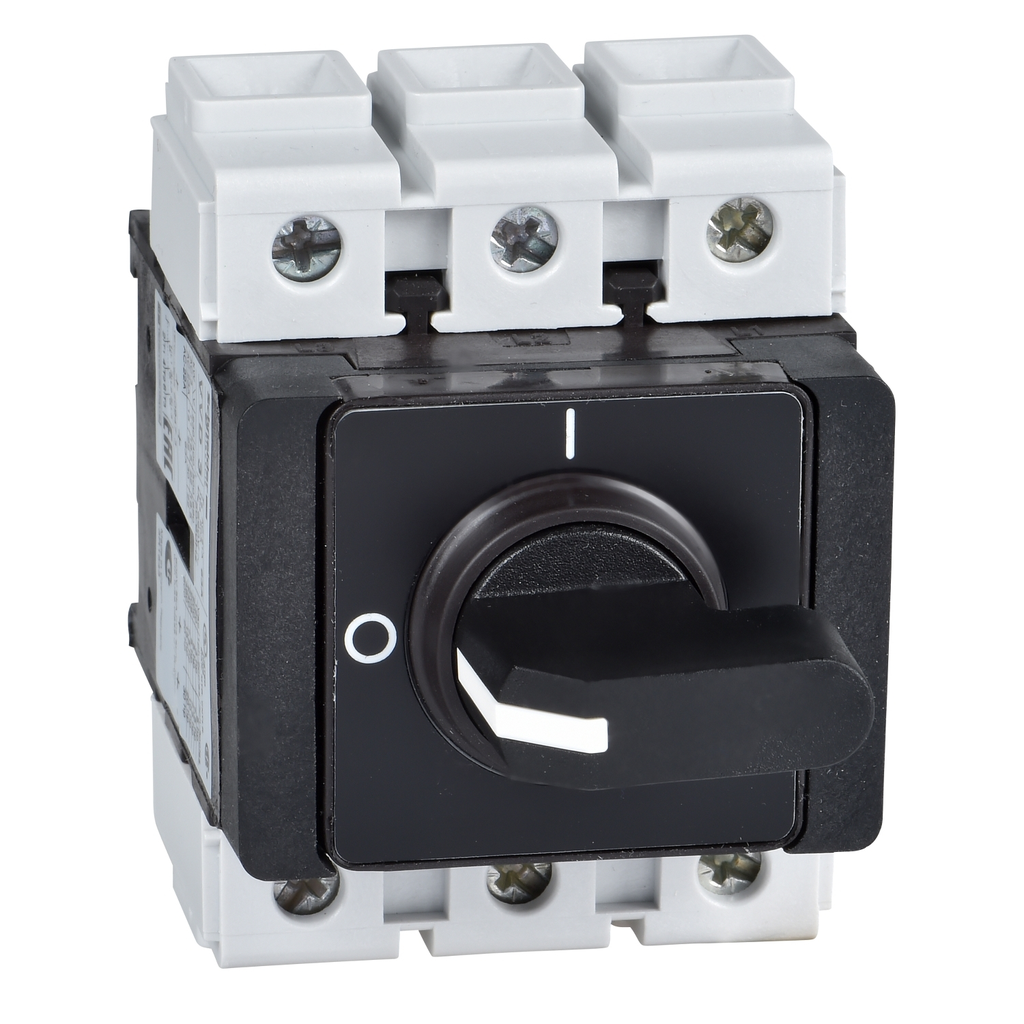

Switch disconnector,TeSys Control,for ON/OFF,32A,for mounting at back of an enclosure

20A SW KIT W/BLACK/GRAY OPER.A

SQDVVD1 VVD1 3389110553215
174.33 / EA
http://schema.org/OutOfStock
Mayer-DDS-Switch disconnector,TeSys Control,for ON/OFF,32A,for mounting at back of an enclosure-1
  • Country of Origin: Czechia
  • Depth: 106 mm
  • Handle Color: Black
  • Height: 74 mm
  • Net Weight: 0.25 kg
  • Warranty Length: 18 mth
  • Weight: 0.25 kg
  • Width: 55 mm
VVD1 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric. Rated 32A 690V, it is used for main switching in motor applications 11KW@400V AC-23. Composed of a V1 switch body, and a black not padlockable handle, and a black 45x45mm front plate. For mounting in modular panels, it ensures IP20 front face. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
QTY
  • Product Description
  • Features
  • Specifications
VVD1 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric. Rated 32A 690V, it is used for main switching in motor applications 11KW@400V AC-23. Composed of a V1 switch body, and a black not padlockable handle, and a black 45x45mm front plate. For mounting in modular panels, it ensures IP20 front face. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL || GL || CSA || UKCA
    • Ambient Air Temperature For Operation : -20-50 °C
    • Standards : IEC 60947-3
    • Ip Degree Of Protection : IP65 || IP65 conforming to IEC 60529
    • Protective Treatment : TC
    • Compatibility Code : main switch disconnector
    • Mechanical Robustness : vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
    • Fire Resistance : 960 °C IEC 60695-2-1
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2211006
    • Halogen Content Performance : Halogen free product
    • Packaging Without Single Use Plastic : Yes
    • Scip Number : 63dc4fbe-3f44-4801-881b-22a3bb8008d9
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : N/A
    • Take-Back : No
    • Pvc Free : Yes
    • Sustainable Packaging : Yes
    • Global Warming ; Total Life Cycle​ : 62 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 62.03758486203566
  • Complementary
    • Rotary Handle Padlocking : without
    • Rotary Handle Mounting Style : direct
    • [Ue] Rated Operational Voltage : 690 V AC 50/60 Hz
    • Height : 74 mm
    • Intermittent Duty Class : 30
    • [Ith] Conventional Free Air Thermal Current : 32 A
    • Network Type : DC || AC
    • Handle Front Plate Colour : black
    • Fixing Mode : by clips switch || by screws switch
    • [Ithe] Conventional Enclosed Thermal Current : 25 A
    • Handle Colour : black
    • Marking : 0 - 1
    • Base Dimension : 45 x 45 mm
    • Net Weight : 0.25 kg
    • Performance Level : high performance
    • [Uimp] Rated Impulse Withstand Voltage : 8 kV
    • Making Capacity : 320 A 400 V AC-21A || 320 A 400 V AC-22A || 320 A 400 V AC-23A
    • Control Type : rotary handle
    • Connections - Terminals : power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 6-6 mm² flexible - with cable end
    • Contacts Type And Composition : 3 NO
    • [Icm] Rated Short-Circuit Making Capacity : 1 kA 400 V at Ipeak
    • Electrical Durability : 100000 cycles AC-21 || 30000 cycles DC-1...5
    • Suitability For Isolation : yes
    • [Ie] Rated Operational Current : 21.8 A AC-23 Ue: 400 V
    • Mounting Support : switch symmetrical rail || switch plate
    • Mechanical Durability : 100000 cycles
    • Poles Description : 3P
    • Width : 55 mm
    • Tightening Torque : power circuit 2.1-2.1 N.m screw clamp terminals
    • Depth : 106 mm
    • Device Composition : handle || switch
    • Breaking Capacity : 250 A 400 V AC-21A) || 250 A 400 V AC-22A) || 250 A 400 V AC-23A)
    • Rated Operational Power In W : 11 kW 500 V AC-23A) || 15 kW 690 V AC-23A) || 7.5 kW 500 V AC-3) || 7.5 kW 690 V AC-3) || 1.5 kW 230...240 V AC-3) || 5.5 kW 230...240 V AC-23A) || 11 kW 400...415 V AC-23A) || 7.5 kW 400...415 V AC-3)
    • Rated Conditional Short-Circuit Current : 10 kA 400 V 35 A aM || 10 kA 400 V 35 A gG
    • [Icw] Rated Short-Time Withstand Current : 384 A 400 V 1 s
  • Specifications
    • Country of Origin : Czechia
    • Width : 55 mm
    • Height : 74 mm
    • Weight : 0.25 kg
    • Product Or Component Type : switch disconnector
    • Product Name : TeSys VARIO
    • Range : TeSys
    • Device Application : preventive maintenance
    • Device Short Name : VVD
