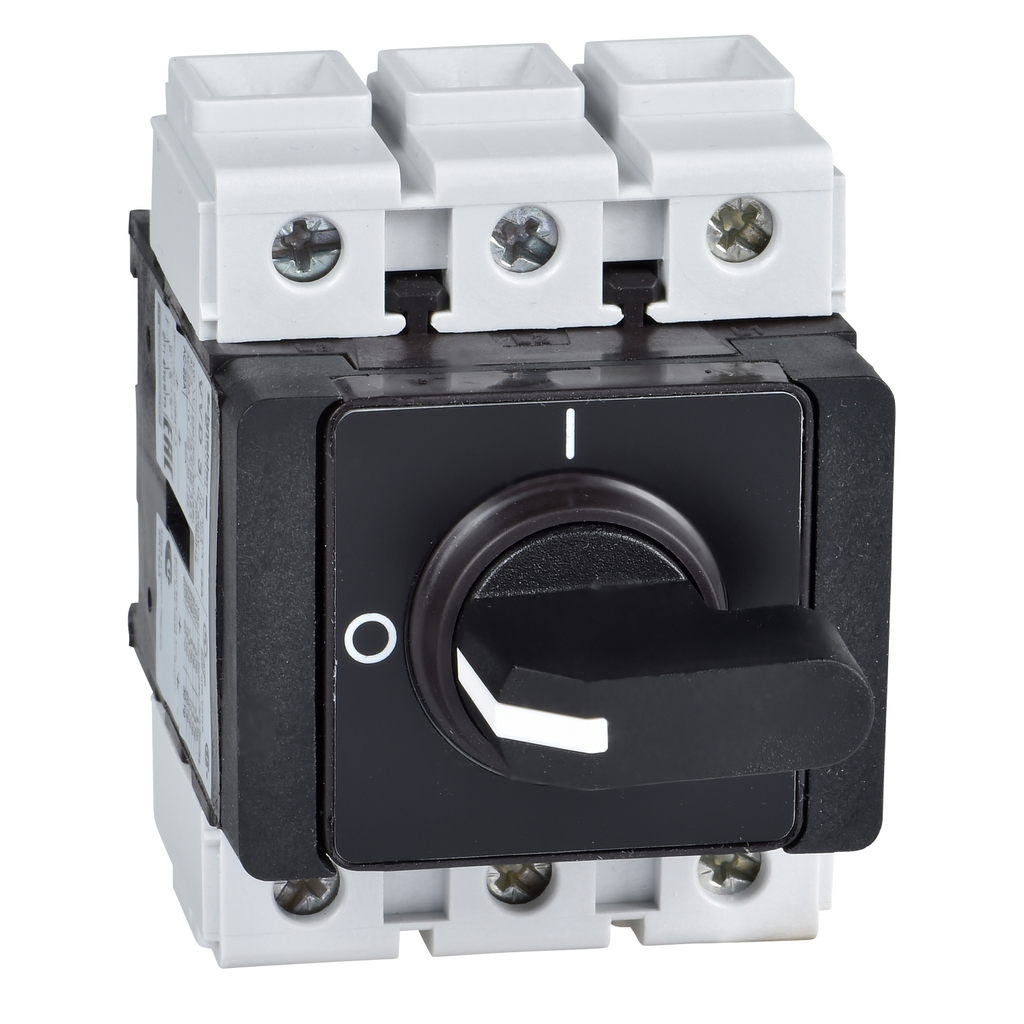

VVD0 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 7.5kW@400V AC-23. For mounting in modular panels, it provides a black & grey operator and IP20 protection front face. VVD0 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 7.5kW@400V AC-23. It consists of a V0 Vario switch body with a black & grey operator to be mounted in modular panels. It ensures an IP20 protection front face. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Vario 3-pole rotary switch disconnector for installation in modular panels. Composed with a switch body V0 and a black & grey operator, for main switching (not padlockable). Ensures an IP20 protection degree front face. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 4 add-on poles (2 in each side) , main (VZ0), neutral (VZ11), earthing (VZ14), auxiliary (VZ7, VZ20).

• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : GL || CSA || UL || UKCA
• Ambient Air Temperature For Operation : -20-50 °C
• Standards : IEC 60947-3
• Ip Degree Of Protection : IP65 || IP65 conforming to IEC 60529
• Protective Treatment : TC
• Compatibility Code : main switch disconnector
• Mechanical Robustness : vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
• Fire Resistance : 960 °C IEC 60695-2-1
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2211006
• Halogen Content Performance : Halogen free product
• Packaging Without Single Use Plastic : Yes
• Scip Number : 63dc4fbe-3f44-4801-881b-22a3bb8008d9
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : N/A
• Take-Back : No
• Pvc Free : Yes
• Sustainable Packaging : Yes
• Global Warming ; Total Life Cycle​ : 62 kg CO2 eq.
• Eu Rohs Directive : Compliant with Exemptions
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 62.03758486203566
• Complementary
• Rotary Handle Padlocking : without
• Rotary Handle Mounting Style : direct
• [Ue] Rated Operational Voltage : 690 V AC 50/60 Hz
• Height : 74 mm
• Intermittent Duty Class : 30
• [Ith] Conventional Free Air Thermal Current : 25 A
• Network Type : DC || AC
• Handle Front Plate Colour : black
• Fixing Mode : by clips switch || by screws switch
• [Ithe] Conventional Enclosed Thermal Current : 20 A
• Handle Colour : black
• Marking : 0 - 1
• Base Dimension : 45 x 45 mm
• Net Weight : 0.25 kg
• Performance Level : high performance
• [Uimp] Rated Impulse Withstand Voltage : 8 kV
• Making Capacity : 250 A 400 V AC-21A || 250 A 400 V AC-22A || 250 A 400 V AC-23A
• Control Type : rotary handle
• Connections - Terminals : power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 6-6 mm² flexible - with cable end
• Contacts Type And Composition : 3 NO
• [Icm] Rated Short-Circuit Making Capacity : 1 kA 400 V at Ipeak
• Electrical Durability : 100000 cycles AC-21 || 30000 cycles DC-1...5
• Suitability For Isolation : yes
• [Ie] Rated Operational Current : 14.5 A AC-23 Ue: 400 V
• Mounting Support : switch symmetrical rail || switch plate
• Mechanical Durability : 100000 cycles
• Poles Description : 3P
• Width : 55 mm
• Tightening Torque : power circuit 2.1-2.1 N.m screw clamp terminals
• Depth : 106 mm
• Device Composition : switch || handle
• Breaking Capacity : 200 A 400 V AC-21A) || 200 A 400 V AC-22A) || 200 A 400 V AC-23A)
• Rated Operational Power In W : 11 kW 500 V AC-23A) || 11 kW 690 V AC-3) || 15 kW 690 V AC-23A) || 4 kW 230...240 V AC-3) || 5.5 kW 400...415 V AC-3) || 7.5 kW 500 V AC-3) || 5.5 kW 230...240 V AC-23A) || 7.5 kW 400...415 V AC-23A)
• Rated Conditional Short-Circuit Current : 10 kA 400 V 25 A aM || 10 kA 400 V 25 A gG
• [Icw] Rated Short-Time Withstand Current : 300 A 400 V 1 s
• Specifications
• Country of Origin : Czechia
• Width : 55 mm
• Height : 74 mm
• Weight : 0.25 kg
• Product Or Component Type : switch disconnector
• Product Name : TeSys VARIO
• Range : TeSys
• Device Application : preventive maintenance
• Device Short Name : VVD
