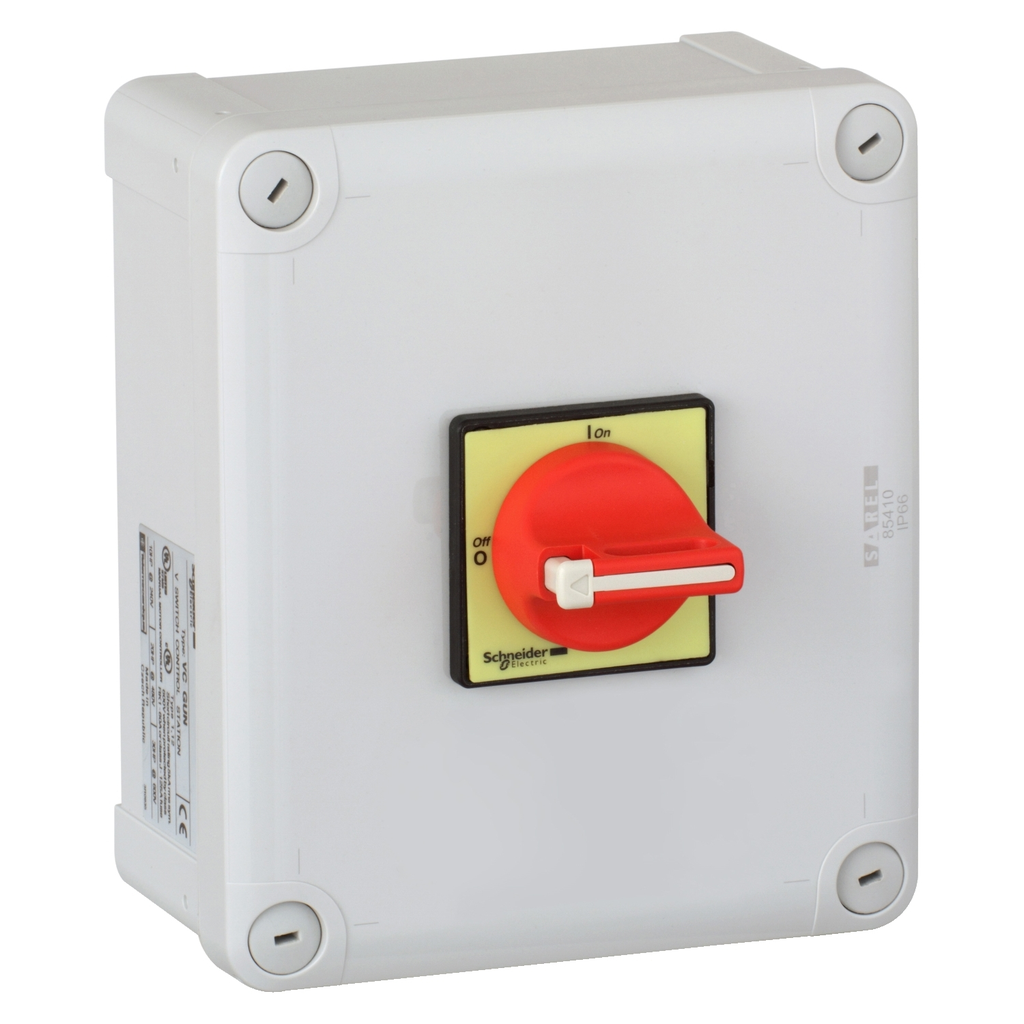

VC3GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for emergency stop switching in motor applications 30HP@600V. It provides an IP65 / NEMA type 12 enclosure, V3 Vario switch disconnector and red & yellow operator. VC3GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 30HP@600V. It includes a V3 Vario switch disconnector rated 45A conforming UL/CSA. It provides an IP65 / NEMA type 12 enclosure with a red & yellow operator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC). Enclosed switch disconnector including a 3-pole switch-disconnector Vario V3 model. Conforming to IEC (IEC 60947-4-1, IEC 60204) and UL/CSA (UL 508 and CSA 22.2 n° 14). NEMA type 12 enclosure rating, IP65 protection degree, sealable. Operating red handle for emergency stop, padlockable. Connections directly on the screw clamp terminals of the switch. Possible attachment of 2 add-on poles to the switch body , main (VZ3), neutral (VZ12), earthing (VZ15), auxiliary (VZ7, VZ20).

• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

• Environment
• Ambient Air Temperature For Operation : -20-50 °C
• Standards : IEC 60947-4-1 || CSA C22.2 No 14 || UL 508 || IEC 60204
• Ip Degree Of Protection : IP65 conforming to IEC 60529
• Nema Degree Of Protection : NEMA 12
• Protective Treatment : TC
• Mechanical Robustness : vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2211019
• Packaging Without Single Use Plastic : Yes
• Toxic Heavy Metal Free : Yes
• Scip Number : 9ea58720-3cf9-4883-9af8-9d64d3981af2
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : N/A
• Take-Back : No
• Sustainable Packaging : Yes
• Global Warming ; Total Life Cycle​ : 92 kg CO2 eq.
• Eu Rohs Directive : Compliant with Exemptions
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 91.76030779198636
• Complementary
• [Ue] Rated Operational Voltage : 690 V AC 50/60 Hz
• Height : 193 mm
• Intermittent Duty Class : 30
• Marking : 0 - 1
• Base Dimension : 60 x 60 mm
• Net Weight : 0.93 kg
• [Uimp] Rated Impulse Withstand Voltage : 8 kV
• Making Capacity : 630 A 400 V AC-21A || 630 A 400 V AC-22A || 630 A 400 V AC-23A
• Connections - Terminals : screw clamp terminals 25-25 mm² solid - with cable end || screw clamp terminals 16-16 mm² flexible
• [Icm] Rated Short-Circuit Making Capacity : 2.1 kA 400 V at Ipeak
• Electrical Durability : 30000 cycles AC-21 || 30000 cycles DC-1...5
• Environmental Characteristic : standard environment
• Suitability For Isolation : yes
• [Ie] Rated Operational Current : 41.5 A AC-23A)400 V
• Mechanical Durability : 30000 cycles
• Rated Power In Hp : 10 hp 240 V, UL || 20 hp 480 V, UL || 30 hp 600 V, UL
• Fire Resistance : 960 °C IEC 60595-2-1
• [Ithe] Conventional Enclosed Thermal Current : 50.0 A IEC 690 V || 45 A UL 600 V
• Width : 164 mm
• Tightening Torque : 4-4 N.m screw clamp terminals
• Depth : 132 mm
• Breaking Capacity : 500 A 400 V AC-21A) || 500 A 400 V AC-22A) || 500 A 400 V AC-23A)
• Rated Operational Power In W : 22 kW 400 V AC-23) || 18.5 kW 400 V AC-3)
• Rated Conditional Short-Circuit Current : 10 kA 400 V 63 A aM || 10 kA 400 V 63 A gG
• [Icw] Rated Short-Time Withstand Current : 756 A 400 V 1 s
• Specifications
• Country of Origin : Czechia
• Width : 164 mm
• Height : 193 mm
• Weight : 0.93 kg
• Rotary Handle Padlocking : 1 to 3 padlocks 4-8 mm
• Handle Front Plate Colour : yellow
• Handle Colour : red
• Product Or Component Type : enclosed emergency stop switch disconnector
• Product Name : TeSys VARIO
• Performance Level : high performance
• Range : TeSys
• Control Type : rotary handle
• Poles Description : 3P
• Device Short Name : VC-GUN
