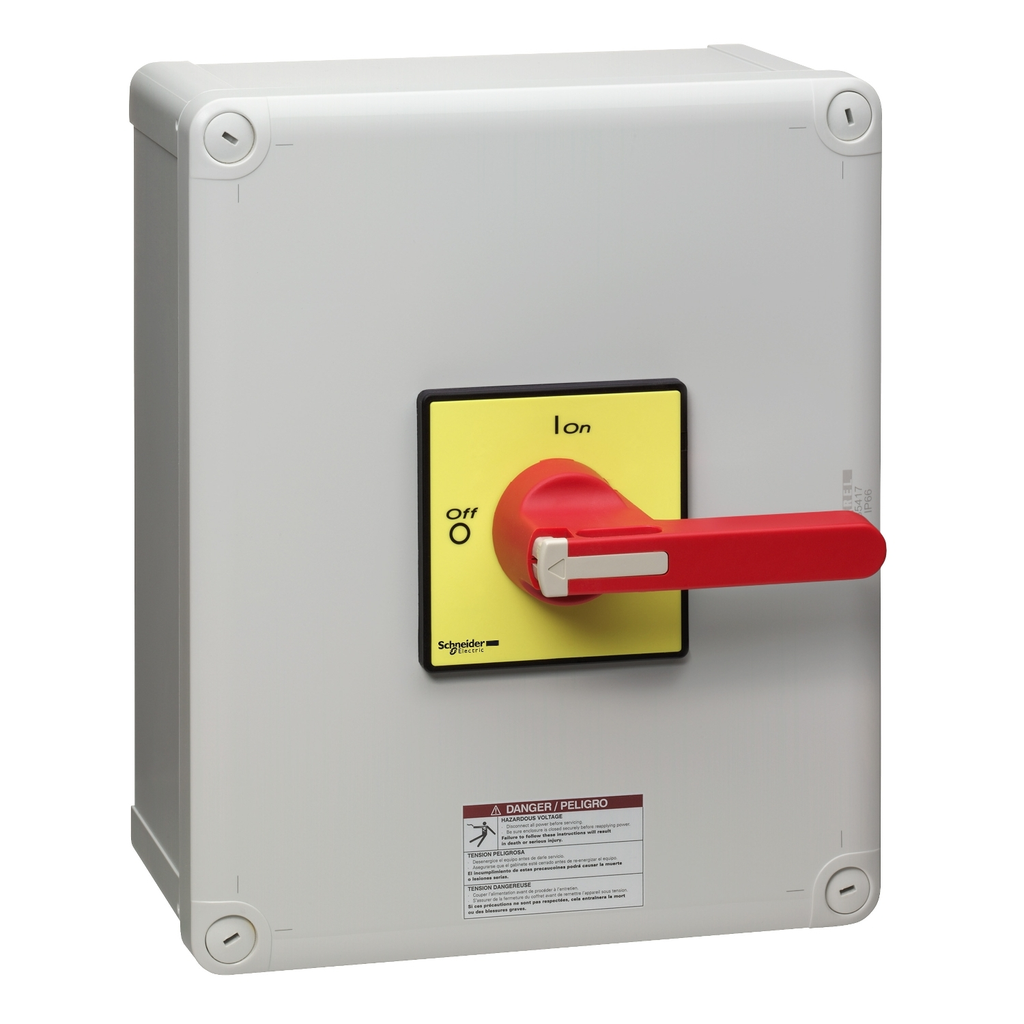

VC5GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for emergency stop switching in motor applications 50HP@600V. It provides an IP65 / NEMA type 12 enclosure, V5 Vario switch disconnector and red & yellow operator. VC5GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 50HP@600V. It includes a V5 Vario switch disconnector rated 100A conforming UL/CSA. It provides an IP65 / NEMA type 12 enclosure with a red & yellow operator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC). Enclosed switch disconnector including a 3-pole switch-disconnector Vario V5 model. Conforming to IEC (IEC 60947-4-1, IEC 60204) and UL/CSA (UL 508 and CSA 22.2 n° 14). NEMA type 12 enclosure rating, IP65 protection degree, sealable. Operating long red handle for emergency stop, padlockable. Connections directly on the screw clamp terminals of the switch. Possible attachment of 1 add-on pole to the switch body , neutral (VZ13), earthing (VZ16), auxiliary (VZ7, VZ20).

• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Handle Color : red
• Handle Front Plate Color : yellow
• Complementary Attributes
• Rated Conditional Short Circuit Current : 10 kA 400 V 125 A aM, 10 kA 400 V 125 A gG
• Rated Operational Power In W : 37 kW 400 V AC-23), 30 kW 400 V AC-3)
• Rated Power In HP : 25 hp 240 V, UL, 50 hp 480 V, UL, 50 hp 600 V, UL
• ICM Rated Short Circuit Making Capacity : 2.8 kA 400 V at Ipeak
• ICW Rated Short Time Withstand Current : 1500 A 400 V 1 s
• IE Rated Operational Current : 68.5 A AC-23A)400 V
• UE Rated Operational Voltage : 690 V AC 50/60 Hz
• UIMP Rated Impulse Withstand Voltage : 8 kV
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Electrical Durability : 30000 cycles AC-21, 30000 cycles DC-1...5
• Making Capacity : 1250 A 400 V AC-21A, 1250 A 400 V AC-22A, 1250 A 400 V AC-23A
• Mechanical Robustness : vibrations 10...150 Hz 1 gn) IEC 60068-2-6, shocks 11 ms 30 Gn) IEC 60068-2-27
• ITHE Conventional Enclosed Thermal Current : 100.0 A IEC 690 V, 100 A UL 600 V
• Carbon Footprint Of The Distribution Phase A4 : 0.04267582213199736, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.5 kg CO2 eq., 0.4791854051208496
• Carbon Footprint Of The Installation Phase A5 : 0.03463159527717865, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 1 kg CO2 eq., 1.151889090606445
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 13 kg CO2 eq., 13.432378470046519
• Connections Terminals : screw clamp terminals 95-95 mm² solid - with cable end, screw clamp terminals 70-70 mm² flexible
• Add Ons : VZ7, VZ20, VZ16
• Local Data Status : Publishable
• Local Publishable Date : 2025-12-03
• Device Type : LV equipment - LV switch - disconnector
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Base Dimension : 90 x 90 mm
• Compatibility Code : enclosed switch disconnector
• Device Short Name : VC-GUN
• Fire Resistance : 960 °C IEC 60595-2-1
• Handle Color : red
• Handle Front Plate Color : yellow
• Package Weight Lbs : 2.874 kg
• Performance Level : high performance
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : enclosed emergency stop switch disconnector
• Protective Treatment : TC
• Range : TeSys
• Returnability : Yes
• Rotary Handle Padlocking : 1 to 3 padlocks 4-8 mm
• Sustainable Packaging : Yes
• Tightening Torque : 22.6-22.6 N.m screw clamp terminals
• Total Lifecycle Carbon Footprint : 15 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• ICM Rated Short Circuit Making Capacity : 2.8 kA 400 V at Ipeak
• ICW Rated Short Time Withstand Current : 1500 A 400 V 1 s
• IE Rated Operational Current : 68.5 A AC-23A)400 V
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2211019EN
• Pep Verification Date : 2025-08-05
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Product Manager : XINYUE LIU
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Compliant
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 15.14076038318299
• Environmental Disclosure : ENVPEP2211019EN
• IP Degree Of Protection : IP65 conforming to IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2211019EN
• Pep Verification Date : 2025-08-05
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : enclosed emergency stop switch disconnector
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
