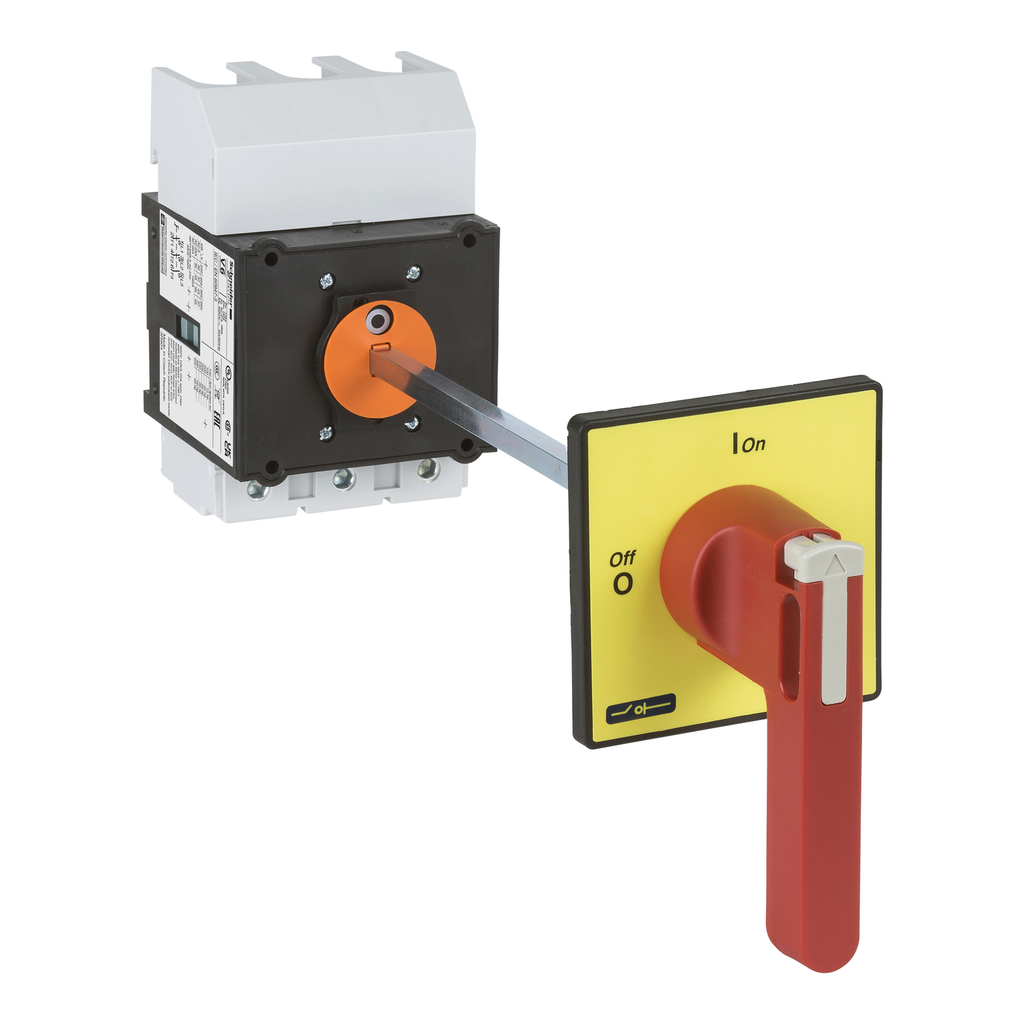

VCCF5 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric. Rated 125A 690V, it is used for main and emergency stop switching in motor applications up to 37kW@400V AC-23. Composed of a V5 switch body, extension shaft, red padlockable handle, and a yellow 90x90mm front plate. For enclosure back mounting, with a 4 screw fixing handle, it ensures IP65 to the mounting. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Possible distance between back of enclosure and door 330-350mm. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : CCC || UL || CSA || GL || UKCA
• Ambient Air Temperature For Operation : -20-50 °C
• Standards : IEC 60947-3
• Ip Degree Of Protection : IP20 conforming to IEC 60529 || IP65
• Protective Treatment : TC
• Compatibility Code : main switch disconnector
• Mechanical Robustness : vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
• Fire Resistance : 960 °C IEC 60695-2-1
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2211006
• Packaging Without Single Use Plastic : No
• Scip Number : 7f9d7799-4d0d-48a0-908b-7d323e11d373
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : N/A
• Take-Back : No
• Global Warming ; Total Life Cycle​ : 257 kg CO2 eq.
• Eu Rohs Directive : Compliant with Exemptions
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 256.9536844351846
• Complementary
• Rotary Handle Padlocking : 1 to 3 padlocks 4-8 mm
• Rotary Handle Mounting Style : extended
• [Ue] Rated Operational Voltage : 690 V AC 50/60 Hz
• Height : 125 mm
• Intermittent Duty Class : 30
• [Ith] Conventional Free Air Thermal Current : 125 A
• Network Type : DC || AC
• Handle Front Plate Colour : yellow
• Fixing Mode : by 4 screws handle || by clips switch || by screws switch
• [Ithe] Conventional Enclosed Thermal Current : 100 A
• Handle Colour : red
• Marking : 0 - 1
• Base Dimension : 90 x 90 mm
• Net Weight : 1.32 kg
• Performance Level : high performance
• [Uimp] Rated Impulse Withstand Voltage : 8 kV
• Making Capacity : 1250 A 400 V AC-21A || 1250 A 400 V AC-22A || 1250 A 400 V AC-23A
• Control Type : rotary handle
• Connections - Terminals : power circuit screw clamp terminals 95-95 mm² solid || power circuit screw clamp terminals 70-70 mm² flexible - with cable end
• Contacts Type And Composition : 3 NO
• [Icm] Rated Short-Circuit Making Capacity : 2.8 kA 400 V at Ipeak
• Electrical Durability : 30000 cycles AC-21 || 30000 cycles DC-1...5
• Suitability For Isolation : yes
• [Ie] Rated Operational Current : 68.5 A AC-23 Ue: 400 V
• Mounting Support : handle door || switch symmetrical rail || switch plate
• Mechanical Durability : 30000 cycles
• Poles Description : 3P
• Width : 90 mm
• Tightening Torque : power circuit 22.6-22.6 N.m screw clamp terminals
• Device Composition : handle || switch || shaft extension
• Breaking Capacity : 1000 A 400 V AC-21A) || 1000 A 400 V AC-22A) || 1000 A 400 V AC-23A)
• Rated Operational Power In W : 22 kW 230...240 V AC-3) || 30 kW 400...415 V AC-3) || 30 kW 690 V AC-3) || 37 kW 500 V AC-3) || 37 kW 690 V AC-23A) || 45 kW 500 V AC-23A) || 22 kW 230...240 V AC-23A) || 37 kW 400...415 V AC-23A)
• Rated Conditional Short-Circuit Current : 10 kA 400 V 125 A aM || 10 kA 400 V 125 A gG
• [Icw] Rated Short-Time Withstand Current : 1500 A 400 V 1 s
• Specifications
• Country of Origin : Czechia
• Width : 90 mm
• Height : 125 mm
• Weight : 1.32 kg
• Product Or Component Type : emergency stop switch disconnector
• Product Name : TeSys VARIO
• Range : TeSys
• Device Short Name : VCCF
