Disconnect switch, TeSys VLS, recessed rotary handle, screw mounting, 65x65 mm, black handle, 5 mm shaft

Disconnect switch, TeSys VLS, recessed rotary handle, screw mounting, 65x65 mm, black handle, 5 mm shaft

SQDVLSH1S5B VLSH1S5B 3606481156952
71.48 / EA
http://schema.org/OutOfStock

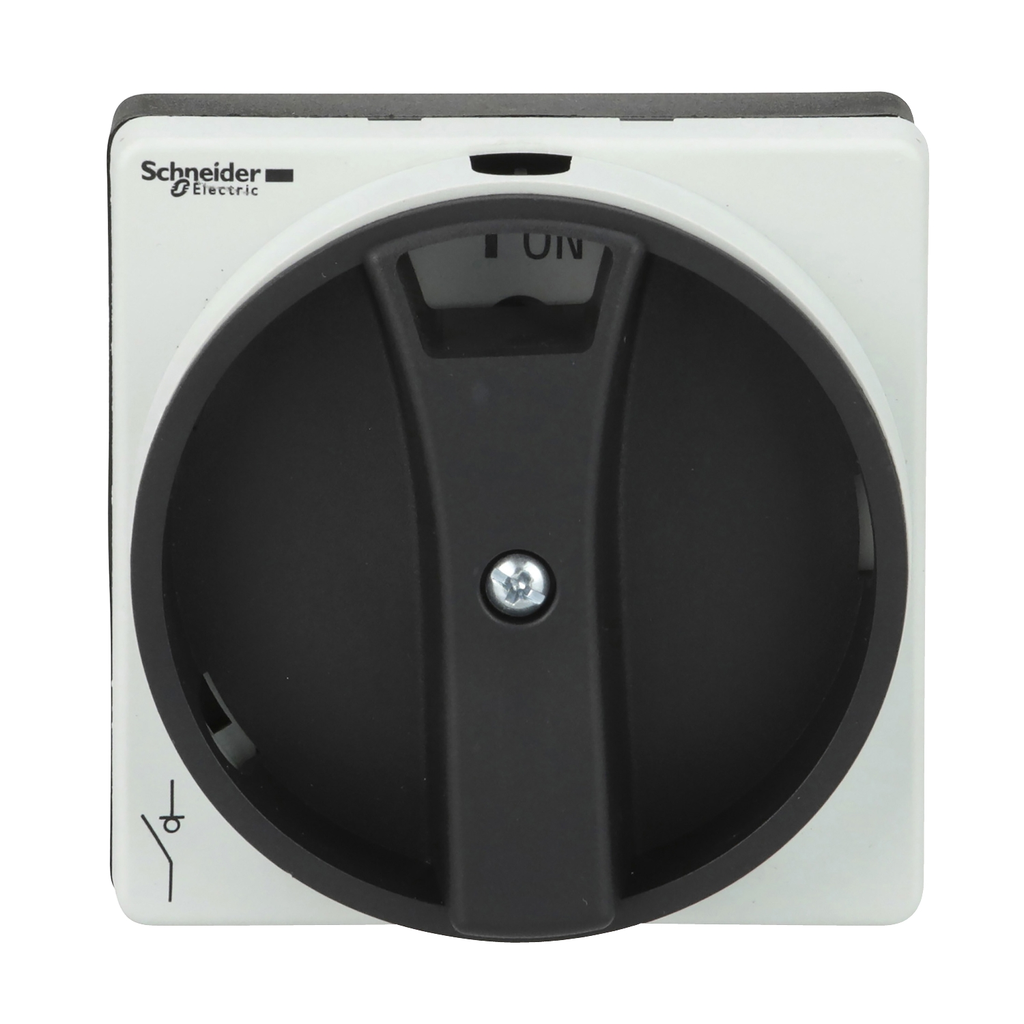

Mayer-DDS-Disconnect switch, TeSys VLS, recessed rotary handle, screw mounting, 65x65 mm, black handle, 5 mm shaft-2
  • Country of Origin: Italy
  • Depth: 46 mm
  • Handle Color: Black
  • Height: 65 mm
  • Net Weight: 0.072 kg
  • Weight: 0.072 kg
  • Width: 65 mm
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This black rotary handle will work with any VLS3P disconnect switch. This 2.56 inch by 2.56 inch handle is mounted using four screws. 5 mm shafts are used with this handle. The front plate is grey in color. The rotary handle will accept 1 to 3 padlocks that are 0.16 to 0.31 inch in diameter. Handle is marked 0 / OFF - 1 / ON. Handle is 2.56 inches tall, 2.56 inches wide and 1.81 inches deep. The handle weighs 0.16 lbs. This handle is NEMA 1, 3R, 12, 4 and 4X rated and IP65 rated. This handle is cULus Listed and meets IEC 60947-3 requirements.
QTY
  • Product Description
  • Features
  • Specifications
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This black rotary handle will work with any VLS3P disconnect switch. This 2.56 inch by 2.56 inch handle is mounted using four screws. 5 mm shafts are used with this handle. The front plate is grey in color. The rotary handle will accept 1 to 3 padlocks that are 0.16 to 0.31 inch in diameter. Handle is marked 0 / OFF - 1 / ON. Handle is 2.56 inches tall, 2.56 inches wide and 1.81 inches deep. The handle weighs 0.16 lbs. This handle is NEMA 1, 3R, 12, 4 and 4X rated and IP65 rated. This handle is cULus Listed and meets IEC 60947-3 requirements.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Height : 65 mm
    • Fixing Mode : by 4 screws
    • Base Dimension : 65 x 65 mm
    • Net Weight : 0.072 kg
    • Tightening Torque : 2.3 N.m
    • Width : 65 mm
    • Depth : 46 mm
  • Specifications
    • Country of Origin : Italy
    • Width : 65 mm
    • Height : 65 mm
    • Weight : 0.072 kg
    • Rotary Handle Padlocking : 1 to 3 padlocks 4-8 mm
    • Range Compatibility : TeSys TeSys VARIO LS VLS3P
    • Handle Front Plate Colour : grey
    • Handle Colour : black
    • Product Or Component Type : rotary handle
    • Marking : 0 - 1 || OFF-ON
    • Range : TeSys
    • Device Short Name : VLSH
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Take-Back : No
    • Sustainable Packaging : No
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Environment
    • Nema Degree Of Protection : NEMA 1 || NEMA 12/3R || NEMA 4 || NEMA 4X
    • Ip Degree Of Protection : IP65
