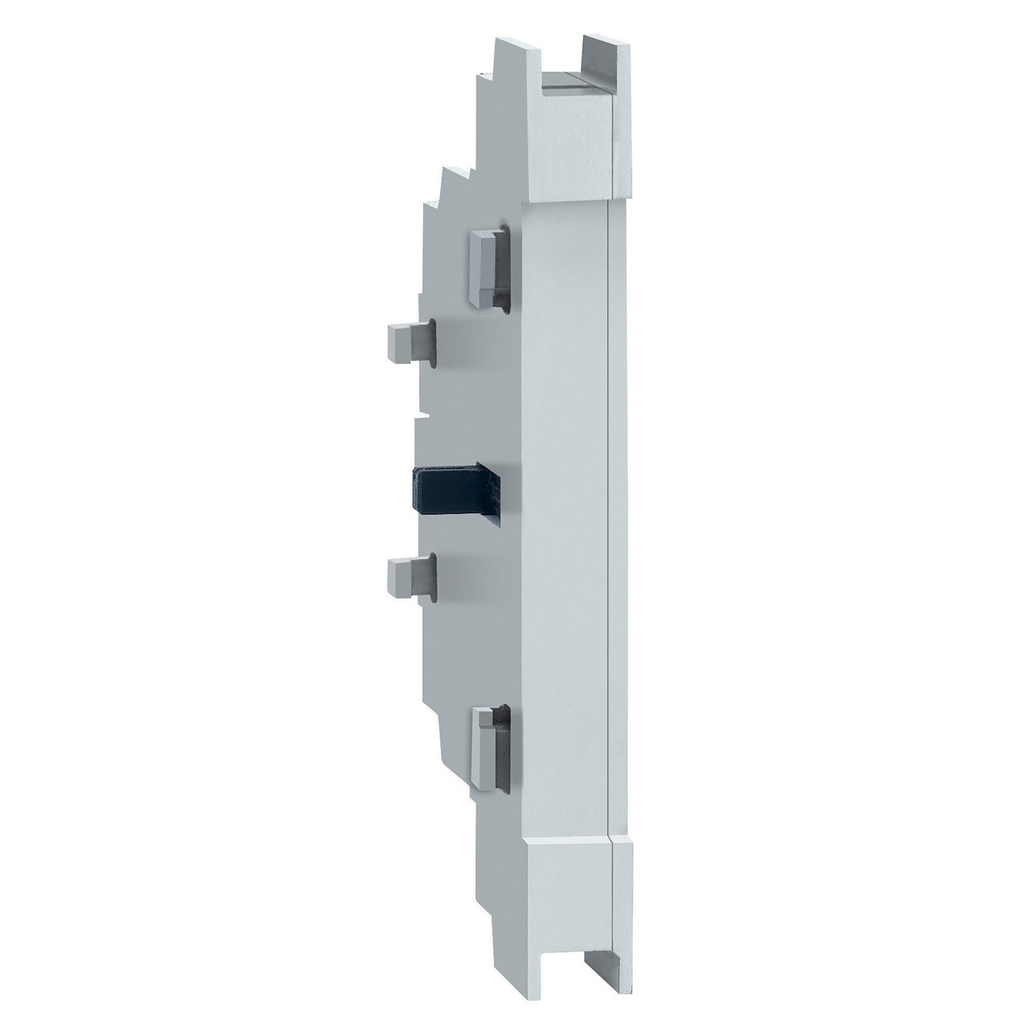

Disconnect switch, TeSys VLS, auxiliary contact block, 1 normally closed and 1 normally open, door

AUX CONTACT 1NO 1NC FOR DOOR

SQDVLSA11DS VLSA11DS 3606481156747
41.62 / EA
http://schema.org/OutOfStock
Mayer-DDS-Disconnect switch, TeSys VLS, auxiliary contact block, 1 normally closed and 1 normally open, door-1
  • Country of Origin: Italy
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This auxiliary contact can be added to a VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1 or VLS3P063R1 DIN rail mount switch. This auxiliary contact can also be added to a VLS3P030R2, VLS3P063R2, VLS3P080R2, VLS3P100R2 or VLS3P125R2 DIN rail mount switch. This auxiliary contact can be mounted on the right or left hand side. This auxiliary contact has one normally open early break contact. The operational voltage of this auxiliary contact is 600 V. This auxiliary contact block has A600 and Q600 current ratings. The screw clamp terminals will accept 18 AWG to 6 AWG wire. This auxiliary contact is 2.86 inches tall, 0.33 inches wide and 1.82 inches deep. The switch weighs 0.07 lbs. This auxiliary contact module is cULus Listed and meets IEC 60947-3 requirements.
QTY
  • Product Description
  • Features
  • Specifications
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This auxiliary contact can be added to a VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1 or VLS3P063R1 DIN rail mount switch. This auxiliary contact can also be added to a VLS3P030R2, VLS3P063R2, VLS3P080R2, VLS3P100R2 or VLS3P125R2 DIN rail mount switch. This auxiliary contact can be mounted on the right or left hand side. This auxiliary contact has one normally open early break contact. The operational voltage of this auxiliary contact is 600 V. This auxiliary contact block has A600 and Q600 current ratings. The screw clamp terminals will accept 18 AWG to 6 AWG wire. This auxiliary contact is 2.86 inches tall, 0.33 inches wide and 1.82 inches deep. The switch weighs 0.07 lbs. This auxiliary contact module is cULus Listed and meets IEC 60947-3 requirements.
  • Connections Terminals
    • control circuit screw clamp terminals 2.5-2.5 mm² flexible - without cable end
  • IE Rated Operational Current
    • 6 A AC-15)24 V AC
    • 6 A AC-15)48 V AC
    • 6 A AC-15)127 V AC
    • 3 A AC-15)240 V AC
    • 3 A DC-13)24 V DC
    • 1.5 A DC-13)48 V DC
    • 0.55 A DC-13)127 V DC
    • 0.27 A DC-13)240 V DC
  • ITH Conventional Free Air Thermal Current
    • 10 A (at 55 °C)
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0005346_3D-CAD&p_File_name=MCADPD0005346_3D-simplified.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0005346_3D-CAD&p_File_name=MCADPD0005346_2D-back.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0005346_3D-CAD&p_File_name=MCADPD0005346_2D-back.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0005346_3D-CAD&p_File_name=MCADPD0005346_2D-bottom.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0005346_3D-CAD&p_File_name=MCADPD0005346_2D-bottom.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0005346_3D-CAD&p_File_name=MCADPD0005346_2D-front.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0005346_3D-CAD&p_File_name=MCADPD0005346_2D-front.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0005346_3D-CAD&p_File_name=MCADPD0005346_2D-isometric.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0005346_3D-CAD&p_File_name=MCADPD0005346_2D-isometric.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0005346_3D-CAD&p_File_name=MCADPD0005346_2D-left.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0005346_3D-CAD&p_File_name=MCADPD0005346_2D-left.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0005346_3D-CAD&p_File_name=MCADPD0005346_2D-right.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0005346_3D-CAD&p_File_name=MCADPD0005346_2D-right.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0005346_3D-CAD&p_File_name=MCADPD0005346_2D-top.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0005346_3D-CAD&p_File_name=MCADPD0005346_2D-top.dxf
  • Range Compatibility
    • TeSys TeSys VARIO LS VLSA
    • TeSys TeSys VARIO LS VLS3P
    • TeSys TeSys VARIO LS VLS1P
  • IP Degree Of Protection
    • IP20 conforming to IEC 60529
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
  • Fire Resistance
    • 850 °C IEC 60695-2-11
  • Persona Type Ids
    • LC
    • OM
    • OM8
    • PB
  • Tightening Torque
    • control circuit 0.8-1 N.m screw clamp terminals
  • Mechanical Robustness
    • vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6
    • shocks 11 ms Ea 15 gn) IEC 60068-2-27
  • Network Type
    • DC
    • AC
  • Contact Operation
    • simultaneous 1 NC
    • simultaneous 1 NO
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • UE Rated Operational Voltage
    • 690 V AC 50/60 Hz
  • Physical Attributes
    • Color : Gray
  • Complementary Attributes
    • UIMP Rated Impulse Withstand Voltage : 8 kV
  • Important Information Attributes
    • B2B Bullet Point 1 : Multiple disconnect switches available
    • B2B Bullet Point 2 : Din rail mounting (Switch unit + shaft + handle)
    • B2B Bullet Point 3 : 16-63A switch recognized to UL60947-4-3
    • B2B Bullet Point 4 : Red or black handles with reduced thickness
    • B2B Bullet Point 5 : Handles designed with multiple hole patterns making it compatible with common brands
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1943
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Compatibility Code : VLS
    • Device Short Name : VLSA
    • Energy Efficiency Optimized : False
    • Package Weight Lbs : 38.000 g
    • Performance Level : high performance
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : auxiliary contact block
    • Range : TeSys
    • Returnability : Yes
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : auxiliary contact block
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=460091114&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • EU ROHS Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Specifications
    • Country of Origin : Italy
