Disconnect switch, TeSys VLS, coupling system for 6 to 8 pole switch disconnectors, size 1, 16A to 40A devices

Mech. Coupling 6 - 8 poles 16

SQDVLS8M1 VLS8M1 3606481156877
85.78 / EA
http://schema.org/OutOfStock

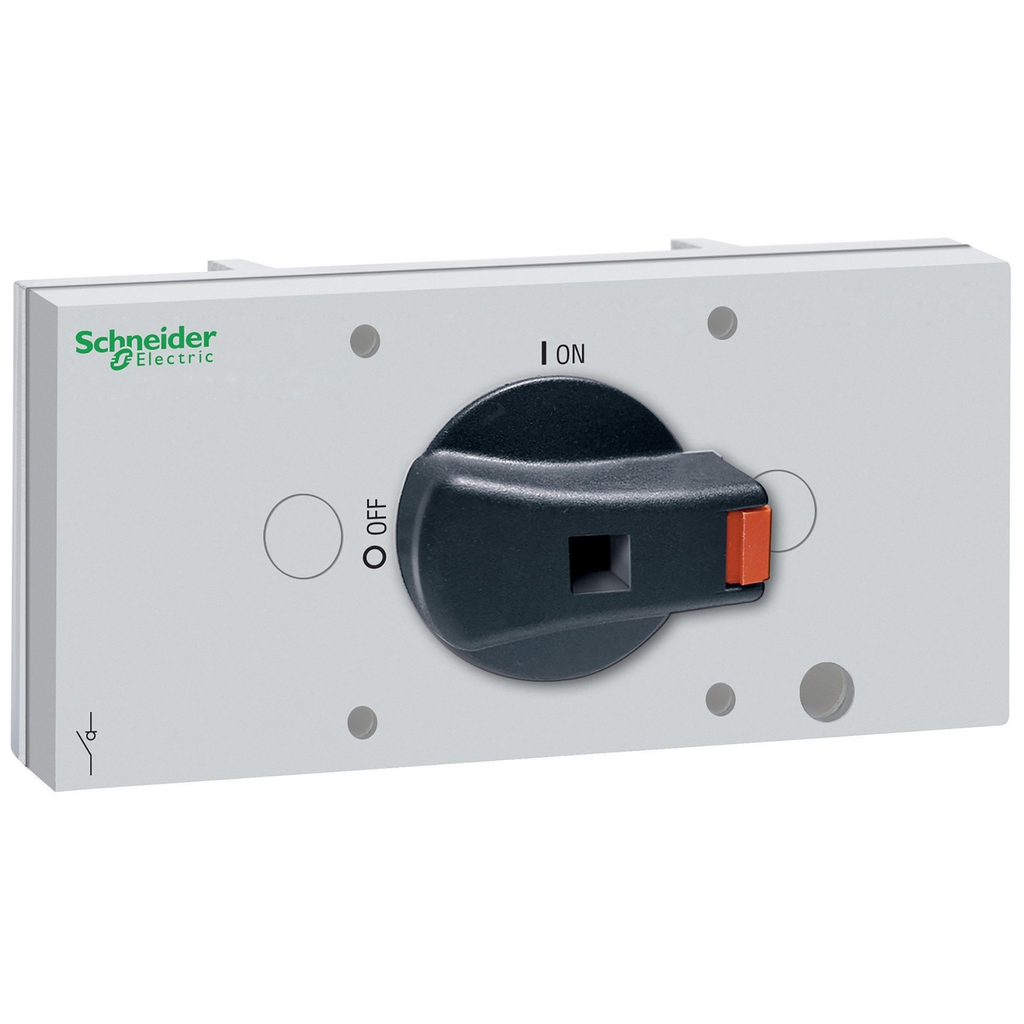

Mayer-DDS-Disconnect switch, TeSys VLS, coupling system for 6 to 8 pole switch disconnectors, size 1, 16A to 40A devices-1
  • Country of Origin: Italy
  • Depth: 27 mm
  • Handle Color: Black
  • Height: 45 mm
  • Net Weight: 0.05 kg
  • Weight: 0.05 kg
  • Width: 72 mm
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This mechanical coupling system is used with two VLS3P016R1, two VLS3P025R1, two VLS3P32R1, two VLSP040R1 or two VLS3P063R1 DIN rail mount switches. Mechanical coupling system is supplied with a black handle. Rotary handle will accept one 0.16 in padlock. Interlock is marked 1 - 0 - 2. Mechanical interlock is 1.77 inches tall, 2.83 inches wide and 1.06 inches deep. It weighs 0.11 lbs. This mechanical interlock is cULus Listed and meets IEC 60947-3 requirements.
QTY
  • Product Description
  • Specifications
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This mechanical coupling system is used with two VLS3P016R1, two VLS3P025R1, two VLS3P32R1, two VLSP040R1 or two VLS3P063R1 DIN rail mount switches. Mechanical coupling system is supplied with a black handle. Rotary handle will accept one 0.16 in padlock. Interlock is marked 1 - 0 - 2. Mechanical interlock is 1.77 inches tall, 2.83 inches wide and 1.06 inches deep. It weighs 0.11 lbs. This mechanical interlock is cULus Listed and meets IEC 60947-3 requirements.
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • Reach Free Of Svhc : Yes
    • Take-Back : No
    • Sustainable Packaging : No
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Specifications
    • Country of Origin : Italy
    • Width : 72 mm
    • Height : 45 mm
    • Weight : 0.05 kg
    • Rotary Handle Padlocking : 1 padlock 4-4 mm
    • Range Compatibility : TeSys TeSys VARIO LS VLS3P
    • Handle Front Plate Colour : grey
    • Accessory / Separate Part Category : coupling accessory
    • Handle Colour : black
    • Product Or Component Type : mechanical interlock
    • Marking : 0 - 1
    • Range : TeSys
  • Environment
    • Product Certifications : cULus || EAC
    • Standards : UL 508 || CSA C22.2 No 14
    • Ip Degree Of Protection : IP20
  • Complementary
    • Height : 45 mm
    • Fixing Mode : by clips and screws
    • Net Weight : 0.05 kg
    • Tightening Torque : 0.5 N.m
    • Width : 72 mm
    • Depth : 27 mm
