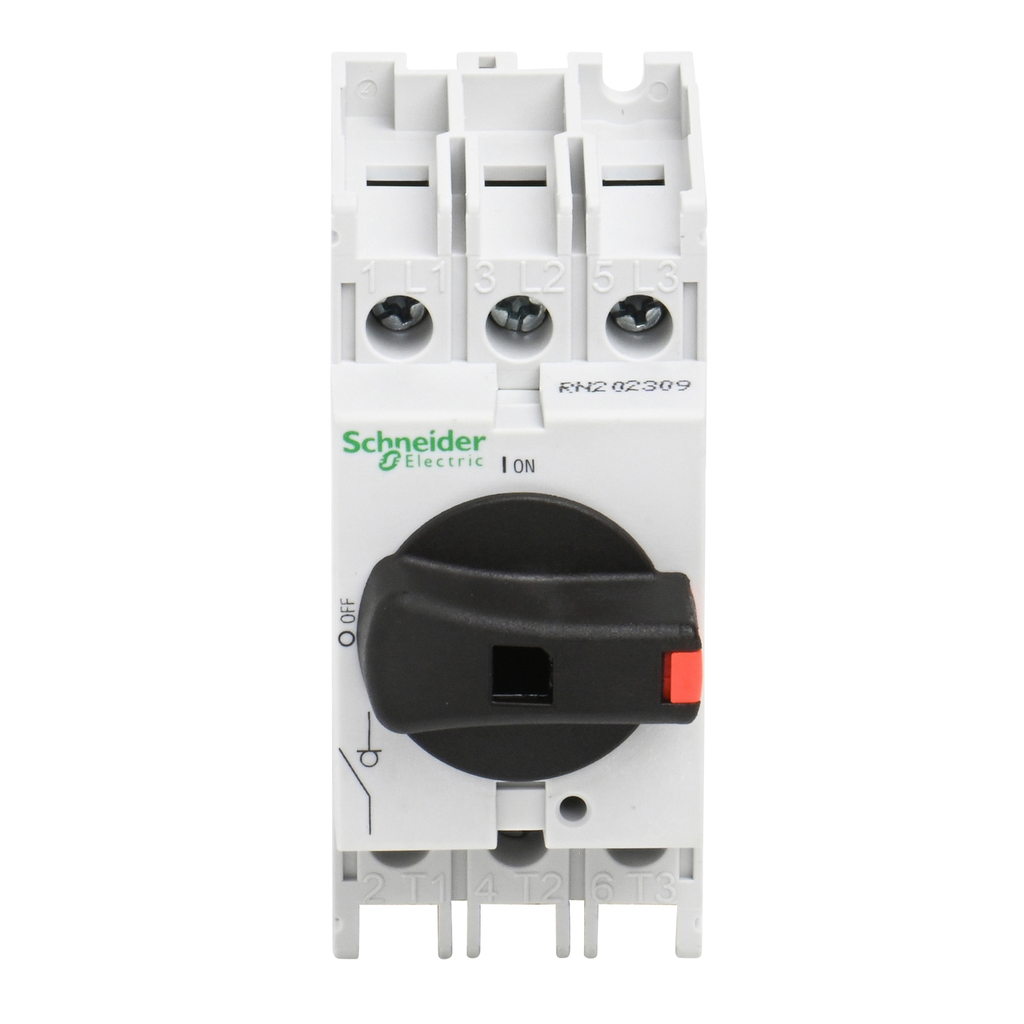

Disconnect switch, TeSys VLS, body switch, 40A, 20HP at 480VAC, UL508, three phase, 5kA SCCR, size 1, DIN rail mount

3 POLE 40A UL508 D.S. DIN RAI

SQDVLS3P040R1 VLS3P040R1 3606481156464
46.87 / EA
http://schema.org/OutOfStock
Mayer-DDS-Disconnect switch, TeSys VLS, body switch, 40A, 20HP at 480VAC, UL508, three phase, 5kA SCCR, size 1, DIN rail mount-2
  • Certifications: CULus, GL
  • Depth: 78 mm
  • Height: 75 mm
  • Net Weight: 0.135 kg
  • Operating Temperature: -25-55 °C
  • Standard: CSA C22.2 No 14, IEC 60947-3, UL 508
  • Width: 36 mm
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This 40A disconnect switch has 3 normally open poles and mounts on DIN rail. Per UL and CSA this this disconnect switch has a 2 HP rating at 120 VAC and a 5 HP at 240 VAC single phase. Per UL and CSA this disconnect switch has a 10 HP rating at 200 to 208 VAC, a 15 HP rating at 240 VAC, a 20 HP rating at 480 VAC and a 25 HP rating at 600 VAC three phase. Per UL508A this this disconnect switch has up to a 5 kA at 600 V short circuit current rating (SCCR) with a 30A Type RK5 fuse maximum. Per IEC requirements, this disconnect switch has a 18.5 kW rating at 400 V, a 18.5 kW rating at 500 V and a 22 kW rating at 690V three phase. The screw clamp terminals will accept 10 mm solid or 16 mm stranded wire. The clamps will also accept solid or stranded wire from 18 AWG to 6 AWG. This disconnect switch is 3.07 inches tall, 1.42 inches wide and 2.95 inches deep. The switch weighs 0.30 lbs. There are many handles and accessories available this TeSys VLS disconnect switch. This TeSys VLS disconnect switch is cULus Listed and meets IEC 60947-3 requirements.
QTY
  • Product Description
  • Specifications
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This 40A disconnect switch has 3 normally open poles and mounts on DIN rail. Per UL and CSA this this disconnect switch has a 2 HP rating at 120 VAC and a 5 HP at 240 VAC single phase. Per UL and CSA this disconnect switch has a 10 HP rating at 200 to 208 VAC, a 15 HP rating at 240 VAC, a 20 HP rating at 480 VAC and a 25 HP rating at 600 VAC three phase. Per UL508A this this disconnect switch has up to a 5 kA at 600 V short circuit current rating (SCCR) with a 30A Type RK5 fuse maximum. Per IEC requirements, this disconnect switch has a 18.5 kW rating at 400 V, a 18.5 kW rating at 500 V and a 22 kW rating at 690V three phase. The screw clamp terminals will accept 10 mm solid or 16 mm stranded wire. The clamps will also accept solid or stranded wire from 18 AWG to 6 AWG. This disconnect switch is 3.07 inches tall, 1.42 inches wide and 2.95 inches deep. The switch weighs 0.30 lbs. There are many handles and accessories available this TeSys VLS disconnect switch. This TeSys VLS disconnect switch is cULus Listed and meets IEC 60947-3 requirements.
  • Complementary
    • Network Frequency : 50/60 Hz
    • Rotary Handle Padlocking : 1 padlock 4-4 mm
    • Rotary Handle Mounting Style : direct
    • [Ue] Rated Operational Voltage : 600 V AC 50/60 Hz UL 508
    • [Ue] Rated Operational Voltage : 690 V AC 50/60 Hz
    • Height : 75 mm
    • Intermittent Duty Class : class 120 - 60 %
    • [Ith] Conventional Free Air Thermal Current : 40 A (at 55 °C)
    • Network Type : AC
    • Handle Front Plate Colour : grey
    • Fixing Mode : by clips back
    • [Ithe] Conventional Enclosed Thermal Current : 40 A
    • Handle Colour : black
    • Marking : 0 - 1
    • Net Weight : 0.135 kg
    • Performance Level : high performance
    • [Uimp] Rated Impulse Withstand Voltage : 8 kV
    • Making Capacity : 60 A 690 V AC-21A || 120 A 690 V AC-22A || 400 A 690 V AC-23A
    • Control Type : rotary handle
    • Connections - Terminals : power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 16-16 mm² flexible - without cable end
    • Contacts Type And Composition : 3 NO
    • [Icm] Rated Short-Circuit Making Capacity : 1128 A 690 V
    • Electrical Durability : 100000 cycles AC-21A
    • Suitability For Isolation : yes
    • [Ie] Rated Operational Current : 40 A Ue: 600 V UL 508 || 40 A AC-21A Ue: 400 V || 40 A AC-21A Ue: 500 V || 40 A AC-21A Ue: 690 V || 40 A AC-22A Ue: 400 V || 40 A AC-22A Ue: 500 V || 40 A AC-22A Ue: 690 V || 40 A AC-23A Ue: 400 V || 25 A AC-23A Ue: 500 V || 25 A AC-23A Ue: 690 V
    • Mounting Support : back DIN rail
    • Mechanical Durability : 100000 cycles
    • Poles Description : 3P
    • Color : Gray
    • Width : 36 mm
    • Tightening Torque : power circuit 1.8-2 N.m screw clamp terminals
    • Depth : 78 mm
    • Device Composition : handle || switch
    • Breaking Capacity : 60 A 690 V AC-21A) || 120 A 690 V AC-22A) || 320 A 690 V AC-23A)
    • Rated Operational Power In W : 18.5 kW 400 V AC-23A) || 18.5 kW 500 V AC-23A) || 22 kW 690 V AC-23A)
    • Rated Conditional Short-Circuit Current : 50 kA 400 V 40 A gG
    • [Icw] Rated Short-Time Withstand Current : 800 A 690 V 1 s
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Eu Rohs Directive : Compliant
  • Specifications
    • Product Or Component Type : switch body
    • Product Name : TeSys VARIO LS
    • Range : TeSys
    • Device Short Name : VLS3P
  • Environment
    • Product Certifications : cULus || GL
    • Ambient Air Temperature For Operation : -25-55 °C
    • Standards : UL 508 || CSA C22.2 No 14 || IEC 60947-3
    • Ip Degree Of Protection : IP20 conforming to IEC 60529
    • Compatibility Code : VLS
    • Mechanical Robustness : vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27
    • Fire Resistance : 960 °C IEC 60695-2-11
