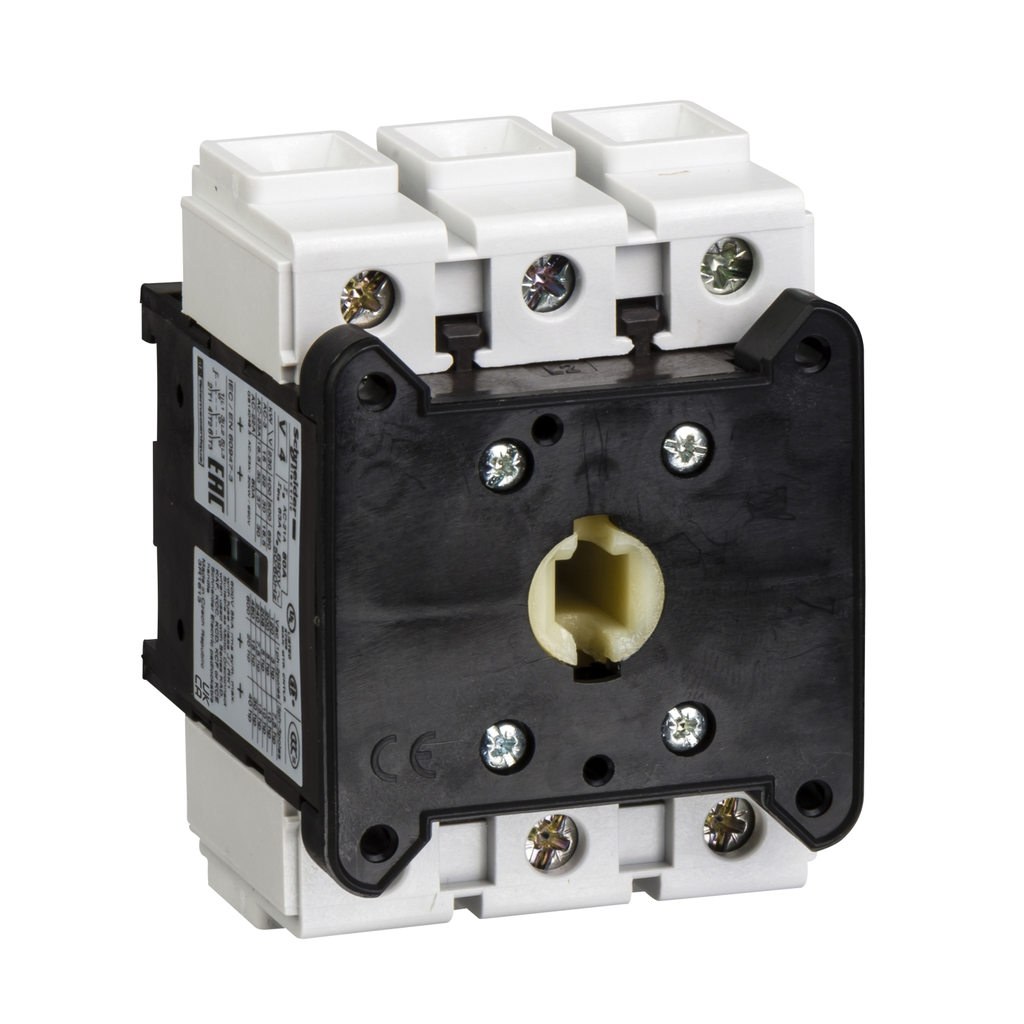

V5 is a 3-pole switch body for TeSys Vario switch-disconnector from Schneider Electric. Rated 125A 690V, it is used in motor applications up to 37kW@400V AC-23. To be equipped with an handle and extension shaft to form a main or emergency stop switch-dis

• Connections Terminals
• power circuit screw clamp terminals 70-70 mm² flexible - with cable end
• power circuit screw clamp terminals 70
• Mounting Support
• symmetrical rail
• plate
• Making Capacity
• 1250 A 400 V AC-21A
• 1250 A 400 V AC-22A
• 1250 A 400 V AC-23A
• Carbon Footprint Of The Installation Phase A5
• 0.07890972278910577
• 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 2 kg CO2 eq.
• 2.3866598724445827
• Ue Rated Operational Voltage
• 690 V AC 50/60 Hz
• Icm Rated Short Circuit Making Capacity
• 2.8 kA 400 V at Ipeak
• Ip Degree Of Protection
• IP20 conforming to IEC 60529
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 6 kg CO2 eq.
• 5.685151143028879
• Rated Operational Power In W
• 22 kW 230...240 V AC-3)
• 30 kW 400...415 V AC-3)
• 30 kW 690 V AC-3)
• 37 kW 500 V AC-3)
• 37
• Accessories
• KZ74
• VZ10
• KZ81
• Electrical Durability
• 30000 cycles AC-21
• 30000 cycles DC-1...5
• Fire Resistance
• 960 °C IEC 60695-2-1
• Add Ons
• VZ7
• VZ20
• VZ16
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 29 kg CO2 eq.
• 28.971796700100345
• Carbon Footprint Of The Distribution Phase A4
• 0.17538009095341384
• 0.2 kg CO2 eq.
• Tightening Torque
• power circuit 22.6-22.6 N.m screw clamp terminals
• Mechanical Robustness
• vibrations 10...150 Hz 1 gn) IEC 60068-2-6
• shocks 11 ms 30 Gn) IEC 60068-2-27
• shocks 11 ms
• Network Type
• AC
• DC
• Ie Rated Operational Current
• 68.5 A AC-23 Ue: 400 V
• Icw Rated Short Time Withstand Current
• 1500 A 400 V 1 s
• Product Certifications
• UL
• CSA
• GL
• UKCA
• Rated Conditional Short Circuit Current
• 10 kA 400 V 125 A aM
• 10 kA 400 V 125 A gG

• Conformance Attributes
• Standards : IEC 60947-3
• Complementary Attributes
• Uimp Rated Impulse Withstand Voltage : 8 kV
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2/26/2025
• Device Type : LV equipment - LV switch - disconnector
• Serviceability : No
• Traceability : No
• Manufacturing Carbon Footprint : 5.685151143
• Distribution Carbon Footprint : 0.175380091
• Installation Carbon Footprint : 7.89E-02
• Use Carbon Footprint : 28.9717967
• End Of Life Carbon Footprint : 2.386659872
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1936
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Compatibility Code : V
• Contacts Type And Composition : 3 NO
• Device Short Name : V
• Halogen Free Status : Halogen free product
• Intermittent Duty Class : 30
• Mechanical Durability : 30000 cycles
• Network Frequency : 50/60 Hz
• Package Weight Lbs : 903.0 g
• Performance Level : high performance
• Poles Description : 3P
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : switch body
• Protective Treatment : TC
• Range : TeSys
• Returnability : Yes
• Suitability For Isolation : yes
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 37 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Ith Conventional Free Air Thermal Current : 125 A
• Ithe Conventional Enclosed Thermal Current : 100 A
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 37.29789753
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : switch body
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=643326&lang=en-us
• Take Back : No
• Halogene Performance : Halogen free product
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 37.29789753
• Ambient Air Temperature For Operation : -20-50 °C
• Environmental Disclosure : ENVPEP2211006
• Eu Rohs Directive : Compliant with Exemptions
• Halogen Content Performance : Halogen free product
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Czechia
• Height : 4.92 in
• Width : 3.54 in
• Depth : 3.54 in
