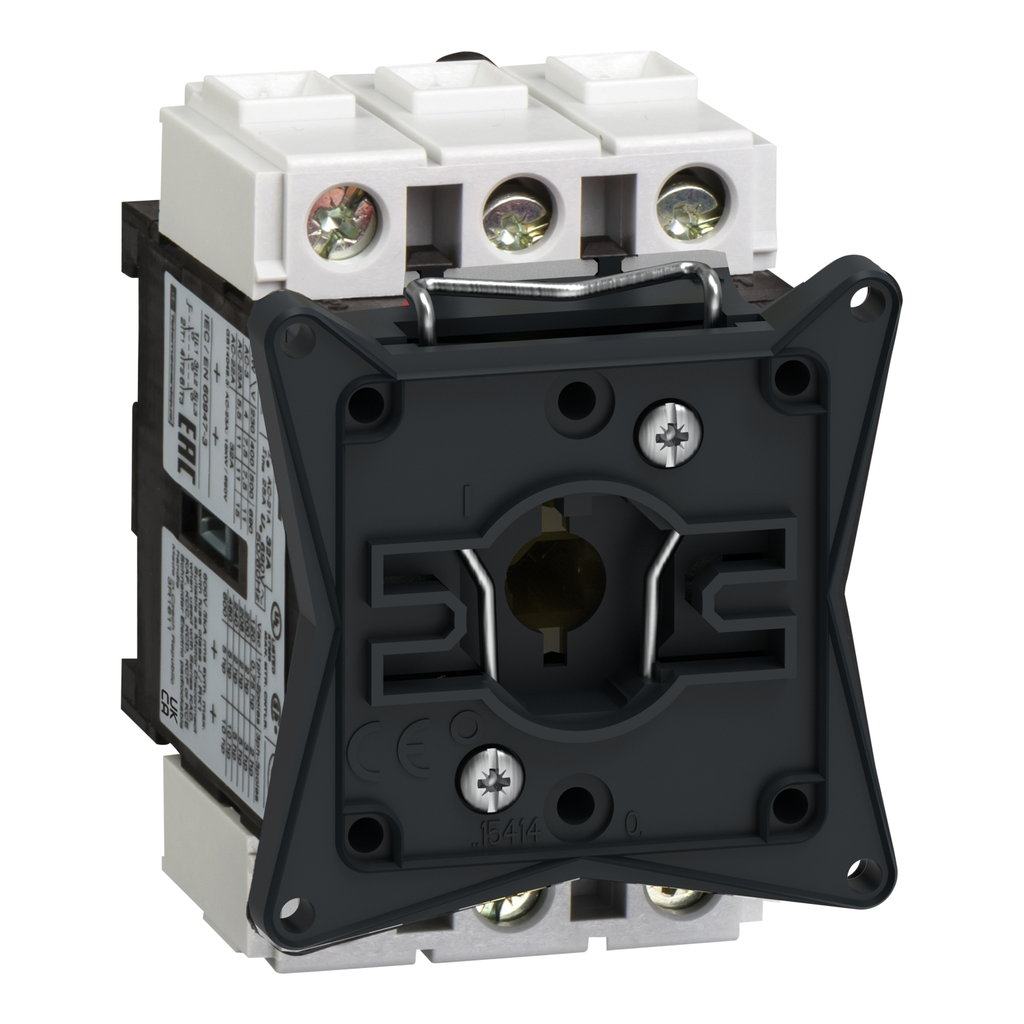

V02 is a 3-pole switch body for TeSys Vario switch-disconnector from Schneider Electric. Rated 12A 690V, it is used in motor applications up to 4kW@400V AC-23. To be equipped with an handle and extension shaft to form a main or emergency stop switch-disconnector. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) can complete the assembly. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

• Complementary Attributes
• Rated Conditional Short Circuit Current : 10 kA 400 V 12 A aM, 10 kA 400 V 12 A gG
• Rated Operational Power In W : 3 kW 400...415 V AC-3), 4 kW 500 V AC-3), 1.5 kW 230...240 V AC-3), 5.5 kW 500 V AC-23A), 5.5 kW 690 V AC-3), 7.5 kW 690 V AC-23A), 3 kW 230...240 V AC-23A), 4 kW 400...415 V AC-23A)
• ICM Rated Short Circuit Making Capacity : 1 kA 400 V at Ipeak
• ICW Rated Short Time Withstand Current : 300 A 400 V 1 s
• IE Rated Operational Current : 8.1 A AC-23 Ue: 400 V
• UE Rated Operational Voltage : 690 V AC 50/60 Hz
• UIMP Rated Impulse Withstand Voltage : 8 kV
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Electrical Durability : 100000 cycles AC-21, 30000 cycles DC-1, 30000 cycles DC-2, 30000 cycles DC-3, 30000 cycles DC-4, 30000 cycles DC-5
• Making Capacity : 120 A 400 V AC-21A, 120 A 400 V AC-22A, 120 A 400 V AC-23A
• Mechanical Robustness : vibrations 10...150 Hz 1 gn) IEC 60068-2-6, shocks 11 ms 30 Gn) IEC 60068-2-27
• Network Type : AC, DC
• Carbon Footprint Of The Distribution Phase A4 : 0.03897335354520308, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.5303688605432406, 0.5 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.017535493953134616
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 1 kg CO2 eq., 1.2633669206730842
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 29 kg CO2 eq., 28.971796700100345
• Connections Terminals : power circuit screw clamp terminals 10-10 mm² solid, power circuit screw clamp terminals 6-6 mm² flexible - with cable end
• Add Ons : VZ11, VZ7, VZ14, VZ20, VZ02
• Local Data Status : Publishable
• Local Publishable Date : 2025-02-26
• HTML Description : TeSys VARIO - Switch Body for Switch-Disconnector - 3 Poles - 12 A
• Manufacturer : Schneider Electric
• Device Type : LV equipment - LV fuse - switch
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Compatibility Code : V
• Device Short Name : V
• Fire Resistance : 960 °C IEC 60695-2-1
• Halogen Free Status : Halogen free product
• Package Weight Lbs : 175.000 g
• Performance Level : high performance
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : switch body
• Protective Treatment : TC
• Range : TeSys
• Returnability : Yes
• Sustainable Packaging : Yes
• Tightening Torque : power circuit 2.1-2.1 N.m screw clamp terminals
• Total Lifecycle Carbon Footprint : 31 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• ICM Rated Short Circuit Making Capacity : 1 kA 400 V at Ipeak
• ICW Rated Short Time Withstand Current : 300 A 400 V 1 s
• IE Rated Operational Current : 8.1 A AC-23 Ue: 400 V
• ITH Conventional Free Air Thermal Current : 12 A
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2211006EN
• Pep Verification Date : 2025-08-05
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Product Manager : XINYUE LIU
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Compliant
• ROHS Exemption Information : Yes
• Take Back : No
• Halogene Performance : Halogen free product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 30.822041328815008
• Environmental Disclosure : ENVPEP2211006EN
• Halogen Content Performance : Halogen free product
• IP Degree Of Protection : IP20 conforming to IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2211006EN
• Pep Verification Date : 2025-08-05
• PCR Version : PCR-4-ed4-EN-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : switch body
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
