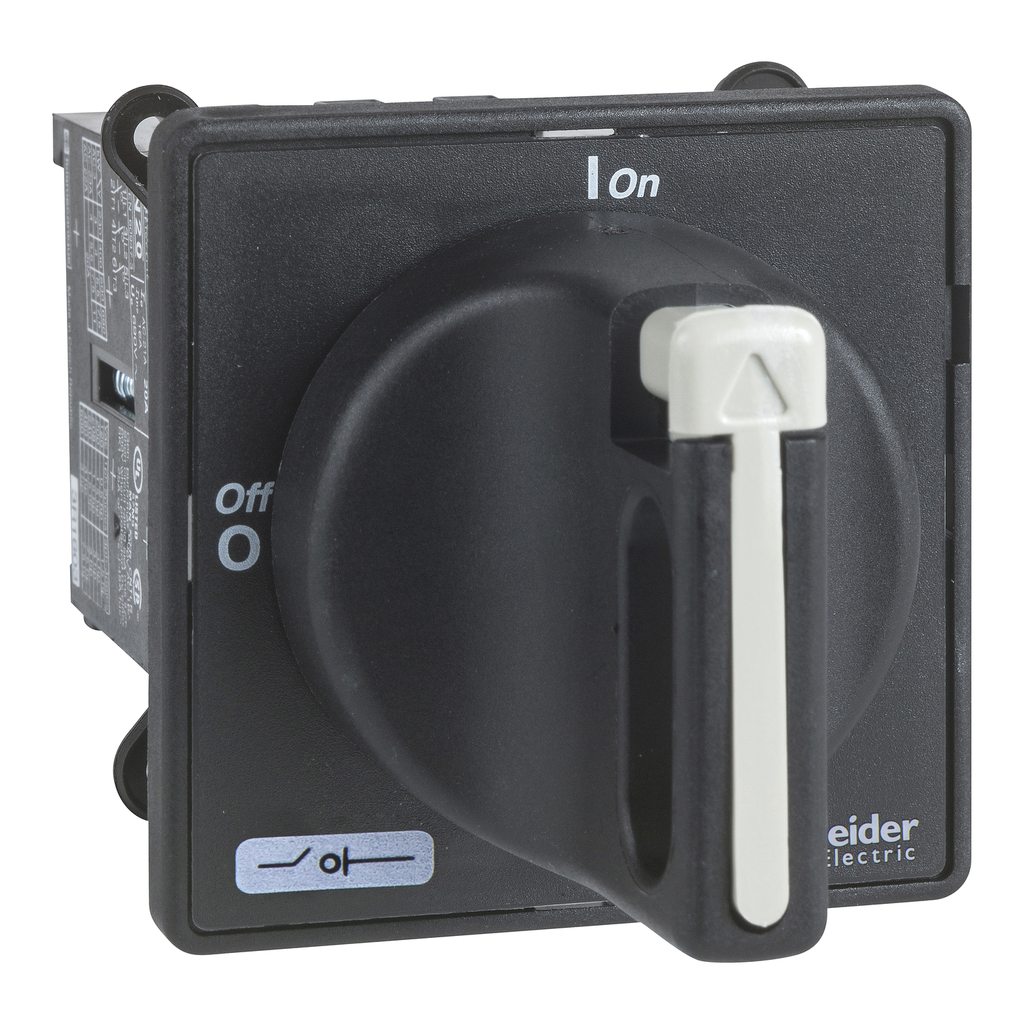

VBDN12 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 4kW@400V AC-23. For door mounting with a single fixing, it provides a black handle with IP65 protection. VBDN12 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 4kW@400V AC-23. It consists of a VZ12 Vario switch body and a padlockable black & grey operator to be mounted on door with a single fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body VZ12 and a black & grey operator, for main switching, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 2 add-on poles (1 in each side) , main (VZN12), neutral (VZN11), earthing (VZN14), auxiliary (VZN05, VZN06).

• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : UL || GL || CCC || CSA || UKCA
• Ambient Air Temperature For Operation : -20-50 °C
• Standards : IEC 60947-3
• Ip Degree Of Protection : IP65
• Protective Treatment : TC
• Mechanical Robustness : vibrations 10...150 Hz 5 gn) IEC 60068-2-6 || shocks 11 ms 15 gn) IEC 60068-2-27
• Fire Resistance : 960 °C IEC 60695-2-1
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2211017
• Packaging Without Single Use Plastic : Yes
• Scip Number : f532c3bb-07a1-406c-b2d3-1d0f85334c59
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : N/A
• Take-Back : No
• Pvc Free : Yes
• Sustainable Packaging : Yes
• Global Warming ; Total Life Cycle​ : 8 kg CO2 eq.
• Eu Rohs Directive : Compliant with Exemptions
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 7.97094372915716
• Complementary
• [Ue] Rated Operational Voltage : 690 V AC 50/60 Hz
• Height : 60 mm
• Intermittent Duty Class : 30
• [Ith] Conventional Free Air Thermal Current : 12 A
• Fixing Mode : hole 22.5 mm handle
• [Ithe] Conventional Enclosed Thermal Current : 10 A
• Marking : 0 - 1
• Base Dimension : 60 x 60 mm
• Net Weight : 0.177 kg
• [Uimp] Rated Impulse Withstand Voltage : 6 kV
• Making Capacity : 120 A 400 V AC-21A || 120 A 400 V AC-22A || 120 A 400 V AC-23A
• Connections - Terminals : power circuit screw clamp terminals 4-4 mm² flexible - with cable end || power circuit screw clamp terminals 4-4 mm² solid
• [Icm] Rated Short-Circuit Making Capacity : 0.5 kA 400 V at Ipeak
• Electrical Durability : 30000 cycles DC-1...5 || 50000 cycles AC-21
• Suitability For Isolation : yes
• Mounting Support : handle door || switch door
• [Ie] Rated Operational Current : 8.1 A AC-23)400 V
• Mechanical Durability : 50000 cycles
• Width : 60 mm
• Tightening Torque : power circuit 0.7-0.7 N.m screw clamp terminals
• Device Composition : switch || handle
• Breaking Capacity : 120 kA 400 V AC-21A) || 120 kA 400 V AC-22A) || 120 kA 400 V AC-23A)
• Rated Operational Power In W : 3 kW 230...240 V AC-23A) || 4 kW 400...415 V AC-23A) || 5.5 kW 500 V AC-23A) || 7.5 kW 690 V AC-23A) || 1.5 kW 230...240 V AC-3) || 3 kW 400...415 V AC-3) || 4 kW 500 V AC-3) || 4 kW 690 V AC-3)
• Rated Conditional Short-Circuit Current : 6 kA 400 V 12 A aM || 6 kA 400 V 12 A gG
• [Icw] Rated Short-Time Withstand Current : 140 A 400 V 1 s
• Specifications
• Country of Origin : Czechia
• Width : 60 mm
• Height : 60 mm
• Weight : 0.177 kg
• Rotary Handle Padlocking : 1 to 3 padlocks 4-8 mm
• Rotary Handle Mounting Style : direct
• Network Type : AC || DC
• Handle Front Plate Colour : black
• Handle Colour : black
• Product Or Component Type : switch disconnector
• Product Name : TeSys Mini-VARIO
• Performance Level : standard
• Range : TeSys
• Control Type : rotary handle
• Contacts Type And Composition : 3 NO
• Poles Description : 3P
• Device Short Name : VBDN
