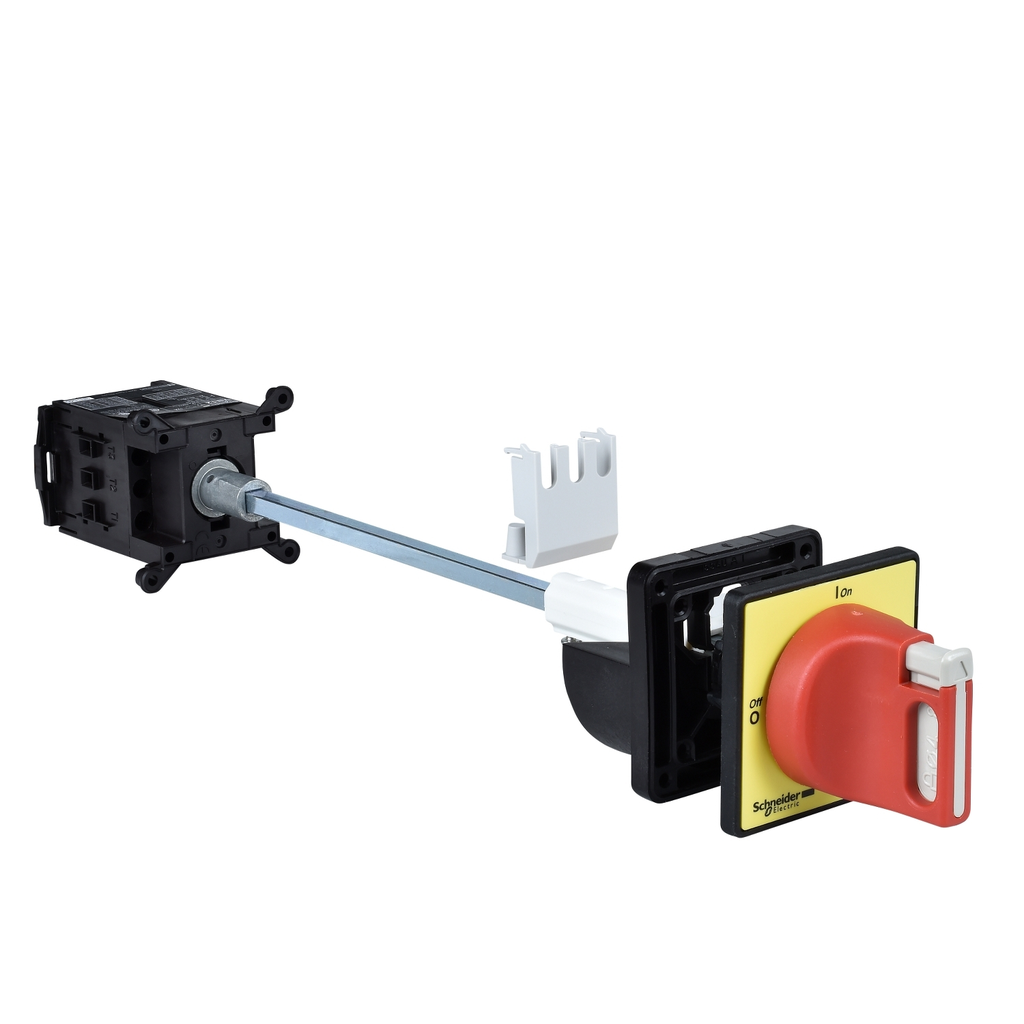

VCCDN20 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop switching in motor applications 5.5kW@400V AC-23. For enclosure back mounting, it provides a red & yellow operator and extension shaft with IP65 protection. VCCDN20 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 5.5kW@400V AC-23. It consists of a VZ20 Vario switch body to be mounted on the back of an enclosure, an extension shaft, and a padlockable red & yellow operator with a single fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Vario 3-pole rotary switch disconnector for back mounting. Composed with a switch body VZ20, an extension shaft and a red & yellow operator, for emergency stop, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 2 add-on poles (1 in each side) , main (VZN20), neutral (VZN11), earthing (VZN14), auxiliary (VZN05, VZN06).

• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : GL || CSA || CCC || UL || UKCA
• Standards : IEC 60947-3
• Ip Degree Of Protection : IP65
• Protective Treatment : TC
• Mechanical Robustness : shocks 11 ms 15 gn) IEC 60068-2-27 || vibrations 10...150 Hz 1 gn) IEC 60068-2-6
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2211017
• Packaging Without Single Use Plastic : Yes
• Scip Number : f532c3bb-07a1-406c-b2d3-1d0f85334c59
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : N/A
• Take-Back : No
• Pvc Free : Yes
• Sustainable Packaging : Yes
• Global Warming ; Total Life Cycle​ : 8 kg CO2 eq.
• Eu Rohs Directive : Compliant with Exemptions
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 8.045202
• Complementary
• Height : 60 mm
• Intermittent Duty Class : 30
• [Ith] Conventional Free Air Thermal Current : 20 A
• Fixing Mode : hole 22.5 mm handle || by clips switch
• [Ithe] Conventional Enclosed Thermal Current : 16 A
• Marking : 0 - 1
• Base Dimension : 60 x 60 mm
• Net Weight : 0.334 kg
• Making Capacity : 200 A 400 V AC-21A || 200 A 400 V AC-22A || 200 A 400 V AC-23A
• Connections - Terminals : power circuit screw clamp terminals 4-4 mm² flexible - with cable end || power circuit screw clamp terminals 4-4 mm² solid
• [Icm] Rated Short-Circuit Making Capacity : 0.5 kA 400 V at Ipeak
• Electrical Durability : 30000 cycles DC-1...5 || 50000 cycles AC-21
• Suitability For Isolation : yes
• Mounting Support : handle door || switch symmetrical rail
• [Ie] Rated Operational Current : 11 A AC-23)400 V
• Mechanical Durability : 50000 cycles
• Width : 60 mm
• Tightening Torque : power circuit 0.7-0.7 N.m screw clamp terminals
• Device Composition : shaft extension || handle || switch
• Breaking Capacity : 200 kA 400 V AC-21A) || 200 kA 400 V AC-22A) || 200 kA 400 V AC-23A)
• Rated Operational Power In W : 4 kW 230...240 V AC-23A) || 5.5 kW 400...415 V AC-23A) || 7.5 kW 500 V AC-23A) || 11 kW 690 V AC-23A) || 3 kW 230...240 V AC-3) || 4 kW 400...415 V AC-3) || 5.5 kW 500 V AC-3) || 5.5 kW 690 V AC-3)
• Rated Conditional Short-Circuit Current : 6 kA 400 V 20 A aM || 6 kA 400 V 20 A gG
• [Icw] Rated Short-Time Withstand Current : 140 A 400 V 1 s
• Specifications
• Country of Origin : Czechia
• Width : 60 mm
• Height : 60 mm
• Weight : 0.334 kg
• Rotary Handle Padlocking : 1 to 3 padlocks 4-8 mm
• Rotary Handle Mounting Style : extended
• Network Type : DC || AC
• Handle Front Plate Colour : yellow
• Handle Colour : red
• Product Or Component Type : emergency stop switch disconnector
• Product Name : TeSys Mini-VARIO
• Performance Level : standard
• Range : TeSys
• Control Type : rotary handle
• Contacts Type And Composition : 3 NO
• Poles Description : 3P
• Device Short Name : VCCDN
