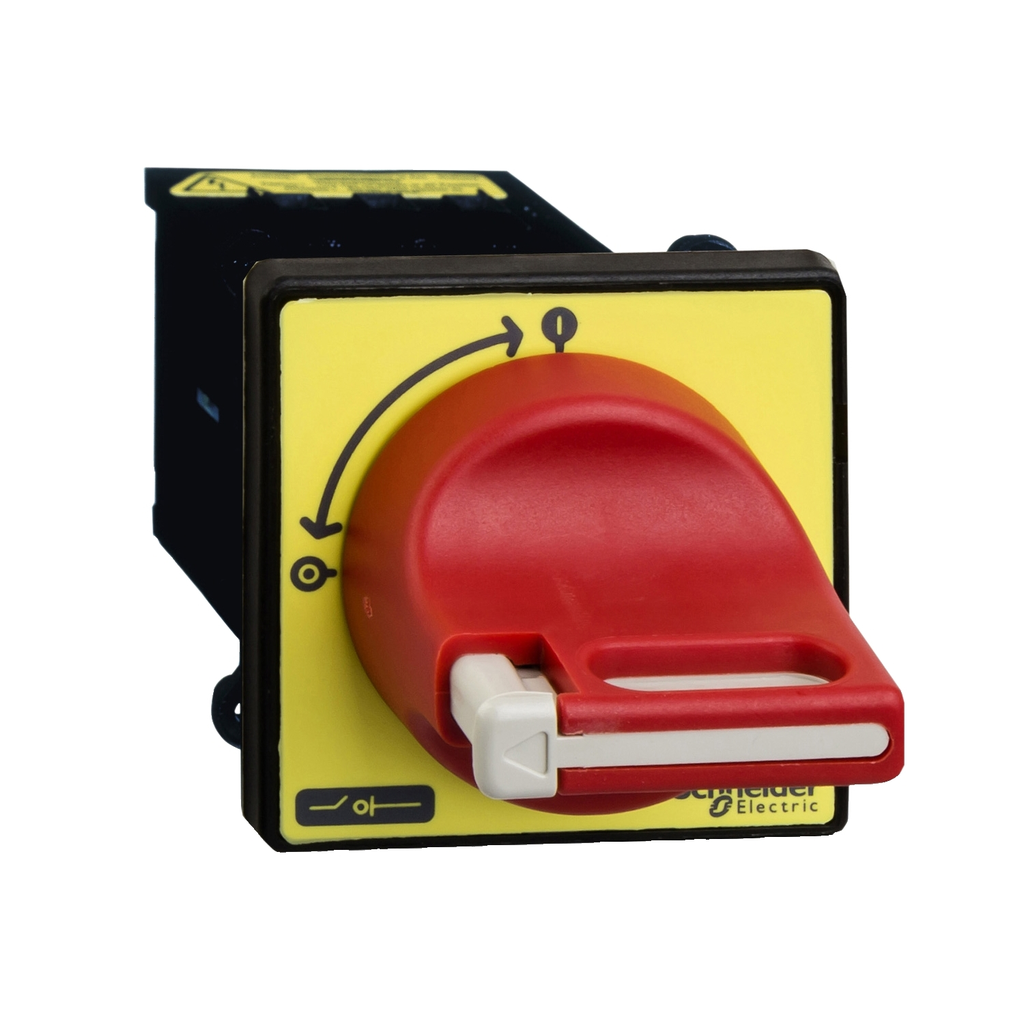

VCDN12 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop switching in motor applications 4kW@400V AC-23. For enclosure door mounting, it provides a red & yellow operator/yellow plate with IP65 protection. VCDN12 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 4kW@400V AC-23. It consists of a VZ12 Vario switch body and a padlockable red & yellow operator to be mounted on door with a single fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body VZ12 and a red & yellow operator, for emergency stop, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 2 add-on poles (1 in each side) , main (VZN12), neutral (VZN11), earthing (VZN14), auxiliary (VZN05, VZN06).

• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Handle Color : red
• Handle Front Plate Color : yellow
• Complementary Attributes
• Rated Operational Power In W : 3 kW 400...415 V AC-3), 4 kW 500 V AC-3), 4 kW 690 V AC-3), 3 kW 230...240 V AC-23A)4 kW 400...415 V AC-23A)5.5 kW 500 V AC-23A)7.5 kW 690 V AC-23A)1.5 kW 230...240 V AC-3)
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Device Composition : handle, switch
• Making Capacity : 120 A 400 V AC-21A, 120 A 400 V AC-22A, 120 A 400 V AC-23A
• Mounting Support : handle door, switch door
• Network Type : AC, DC
• Certificate Agency : GL, CCC, UL, CSA, UKCA
• Connections - Terminals : power circuit screw clamp terminals 4-4 mm² flexible - with cable end, power circuit screw clamp terminals 4-4 mm² solid
• Rated Conditional Short-circuit Current : 6 kA 400 V 12 A aM, 6 kA 400 V 12 A gG
• Carbon Footprint Of The Distribution Phase [A4] : 0.020903290442569368, 0 kg CO2 eq.
• Carbon Footprint Of The End-of-life Phase [C1 To C4] : 0.43582277256668406, 0.4 kg CO2 eq.
• Carbon Footprint Of The Installation Phase [A5] : 0.1 kg CO2 eq., 0.053637229919857164
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 1 kg CO2 eq., 1.0902765254370028
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 5 kg CO2 eq., 4.986699999999999
• Local Data Status : Publishable
• Local Publishable Date : 2026-06-27
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Device Type : LV equipment - LV switch - disconnector
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1936
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Base Dimension : 60 x 60 mm
• Compatibility Code : main switch disconnector
• Contacts Type And Composition : 3 NO
• Control Type : rotary handle
• Device Short Name : VCDN
• Electrical Durability : 30000 cycles DC-1...550000 cycles AC-21
• Fire Resistance : 960 °C IEC 60695-2-1
• Fixing Mode : hole 22.5 mm handle
• Intermittent Duty Class : 30
• Marking : 0 - 1
• Mechanical Durability : 50000 cycles
• Mechanical Robustness : vibrations 10...150 Hz 5 gn) IEC 60068-2-6shocks 11 ms 15 gn) IEC 60068-2-27
• Number Of Poles : 3P
• Performance Level : standard
• Product Availability : Stock - Normally stocked in distribution facility
• Product Name : TeSys Mini-VARIO
• Product Or Component Type : emergency stop switch disconnector
• Protective Treatment : TC
• Range : TeSys
• Returnability : Yes
• Rotary Handle Mounting Style : direct
• Rotary Handle Padlocking : 1 to 3 padlocks 4-8 mm
• Software Version : v5.9.4
• Suitability For Isolation : yes
• Sustainable Packaging : Yes
• Tightening Torque : power circuit 0.7-0.7 N.m screw clamp terminals
• Total Lifecycle Carbon Footprint : 7 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Handle Color : red
• Handle Front Plate Color : yellow
• Thermal Current 3 : 12 A
• Pep Code : ENVPEP2211017EN
• Database Version : 2022-01
• Pep Verification Date : 2025-08-05
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 690V and rated current 20A ensuring isolation characterized by rated voltage 6KV. This function is provided for 20 years.
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime, In Y : 20
• Energy Consumption On Product Lifetime, In Kwh : 74.6352
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; Production mix; Low voltage; CZ
• Energy Model - Installation [A5] : Electricity Mix; Production mix; Low voltage; FR
• Energy Model - Use [B6] : Electricity Mix; Production mix; Low voltage; FR
• Energy Model - End Of Life [C1-c4] : Electricity Mix; Production mix; Low voltage; FR
• Recyclability Potential, In % : 42
• Height Nominal : 60 mm
• Width Nominal : 60 mm
• [Icm] Rated Short-circuit Making Capacity : 0.5 kA 400 V at Ipeak
• [Icw] Rated Short-time Withstand Current : 140 A 400 V 1 s
• [Ie] Rated Operational Current : 8.1 A AC-23)400 V
• [Ith] Conventional Free Air Thermal Current : 12 A
• [Ithe] Conventional Enclosed Thermal Current : 10 A
• [Ue] Rated Operational Voltage : 690 V AC 50/60 Hz
• [Uimp] Rated Impulse Withstand Voltage : 6 kV
• Nbr. Of Units In Pkg. : 1
• Package Weight(Lbs) : 179.0 g
• Take-back : No
• Warranty (In Months) : 18
• Customs Code : 8536509025
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Ambient Air Temperature For Operation : -20-50 °C, -20-50 °C
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Carbon Footprint : 6.587339818366113
• Environmental Disclosure : ENVPEP2211017EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP65
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2211017EN
• Pep Verification Date : 2025-08-05
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : emergency stop switch disconnector
• ETIM
• ETIM 8 : EC000216
• ETIM 9 : EC000216
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Brazil, Czechia, Germany, France, United States
