Disconnect Switch, TeSys LK, nonfusible, 600A, 600 V, HP rated, 3 pole, rotary handle, up to 200kA SCCR

NO FUSE 600V 600A 3P SW

SQDLK4SU3N LK4SU3N 3606480510472
3464.21 / EA
http://schema.org/OutOfStock

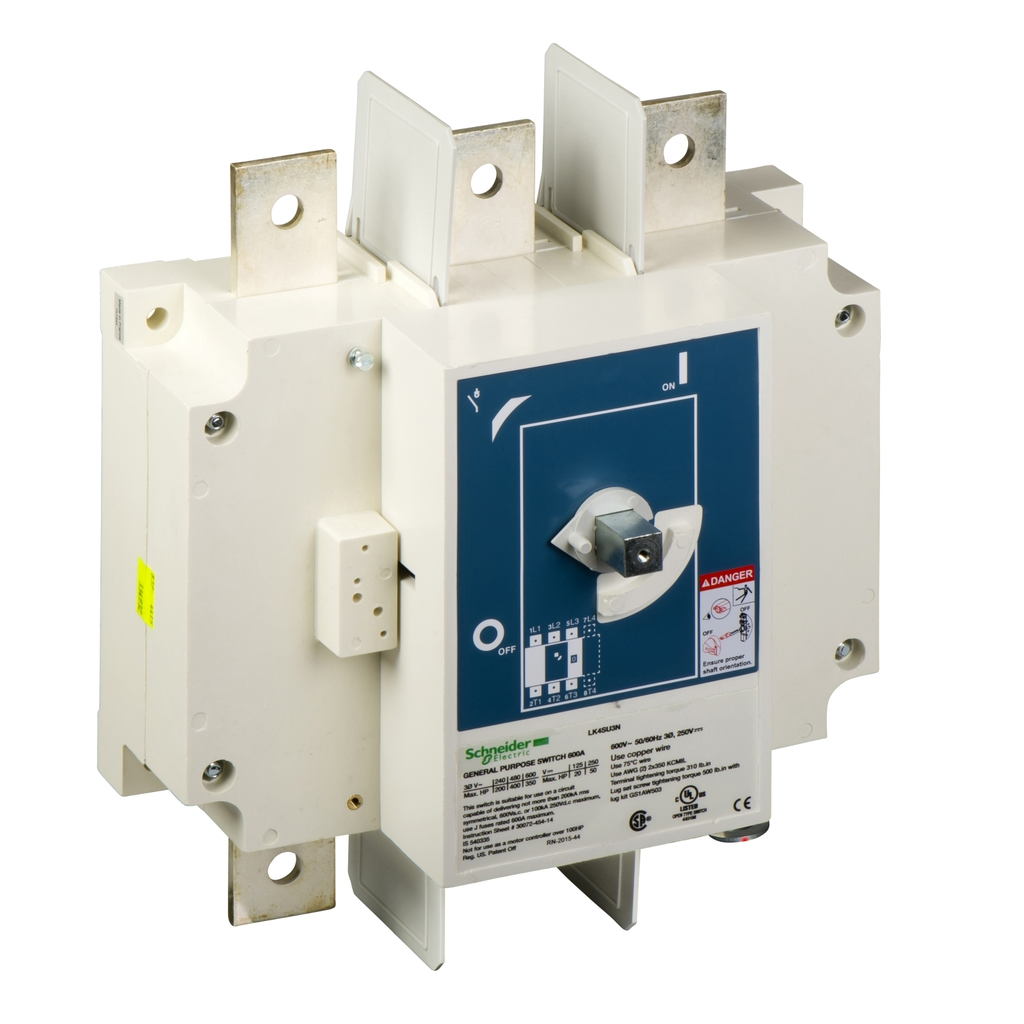

Mayer-DDS-Disconnect Switch, TeSys LK, nonfusible, 600A, 600 V, HP rated, 3 pole, rotary handle, up to 200kA SCCR-1
  • Warranty Length: 18 mth
TeSys LK4 non fusible disconnect switches are compact or standard sized switches that break and make power circuits, on and off loads, and provide safety isolation. This 3 pole non fusible disconnect switch has a 600 ampere rating. It can be used in applications up to 600 VAC or VDC. This nonfusible disconnect switch has a 200 HP rating at 240 VAC, a 400 HP rating at 480 VAC, a 350 HP rating at 600 VAC, a 20 HP rating at 125 VDC and a 50 HP rating at 240 VDC. This disconnect switch is operated with a rotary handle. This 600A disconnect switch has a 200A short circuit current rating (SCCR) when used with Type J fuses. Each terminal has a lug that will accept up to two 2 AWG to 600 kcmil copper or aluminum wire. The disconnect switch is 18.12 inches tall, 11.00 inches wide and 5.50 inches deep. TeSys LK his motor circuit protector is UL Listed and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
TeSys LK4 non fusible disconnect switches are compact or standard sized switches that break and make power circuits, on and off loads, and provide safety isolation. This 3 pole non fusible disconnect switch has a 600 ampere rating. It can be used in applications up to 600 VAC or VDC. This nonfusible disconnect switch has a 200 HP rating at 240 VAC, a 400 HP rating at 480 VAC, a 350 HP rating at 600 VAC, a 20 HP rating at 125 VDC and a 50 HP rating at 240 VDC. This disconnect switch is operated with a rotary handle. This 600A disconnect switch has a 200A short circuit current rating (SCCR) when used with Type J fuses. Each terminal has a lug that will accept up to two 2 AWG to 600 kcmil copper or aluminum wire. The disconnect switch is 18.12 inches tall, 11.00 inches wide and 5.50 inches deep. TeSys LK his motor circuit protector is UL Listed and CSA certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Rated Power In HP : 350 hp 600 V 336 A AC, 20 hp 125 V 148 A DC, 50 hp 250 V 173 A DC, 200 hp 240 V 480 A AC, 400 hp 480 V 477 A AC
    • Rated Power In W : 185 kW 690 V, 355 kW 400 V, 450 kW 500 V
    • IE Rated Operational Current : 200 A690 V AC AC-23A IEC, 630 A400 V AC AC-22A IEC, 630 A400 V AC AC-23A IEC, 500 A690 V AC AC-22A IEC, 600 A CSA, 600 A UL
    • UE Rated Operational Voltage : 600 V AC 50/60 Hz
    • UIMP Rated Impulse Withstand Voltage : 12 kV IEC
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM, OM8, PB
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Network Type : AC, DC
    • Type Of Operating Handle : external right side, external frontal
    • IE Rated Operational Current : 200 A690 V AC AC-23A IEC, 630 A400 V AC AC-22A IEC, 630 A400 V AC AC-23A IEC, 500 A690 V AC AC-22A IEC, 600 A CSA, 600 A UL
    • Connections Terminals : lugs-ring terminals 2 34-34 mm², bars 2 - busbar cross section: 30 x 5 mm
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Device Type : LV equipment - LV switch - disconnector
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Electrical Durability : 1000 cycles
    • Energy Efficiency Optimized : False
    • Package Weight Lbs : 8.490 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Disconnect Switch
    • Range : TeSys
    • Returnability : Yes
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Product Kit Identifier : N
    • Product Manager : ALAN FREEMAN
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Compliant
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
  • General Attributes
    • Product Or Component Type : Disconnect Switch
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
