Replacement Switch, 30A

30A REPLACEMENT SWITCH

PSSRS30 RS30 785007147223
126.89 / EACH
http://schema.org/OutOfStock

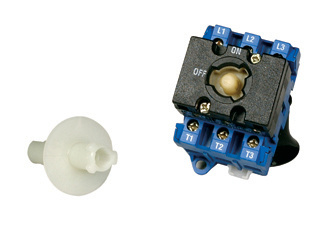

Mayer-DDS-Replacement Switch, 30A-1
  • Amperage: 30 A
  • Applications: Industrial
  • Connection Type: Hardwired
  • Contact Rating: 10 A, 600 V
  • Country of Origin: Germany
  • Depth: 4.88 in
  • Enclosure Material: Not Included.
  • Finish: Matte
  • Height: 9.69 in
  • Material: VALOX
  • Type: Replacement Switch
  • Voltage: 600 V
  • Width: 7.38 in
30A Replacement Switch
QTY
  • Product Description
  • Features
  • Specifications
30A Replacement Switch
  • Certifications
    • UL Listed
    • cUL Listed
  • Specifications
    • Depth : 4.88 in
    • Height : 9.69 in
    • Standard : UL
    • Width : 7.38 in
    • Standard : CSA
    • Amperage : 30.0 A
    • Country of Origin : Germany
    • Environmental Conditions : Moisture Resistance: Per UL50, Section 35, NEMA Enclosure Type 4X (watertight, hosedown), Type 12K (dusttight, falling dirt), and IP67 suitability: Flammability: UL94 5VA and VO Classification: UV Resistance: All enclosure materials are UV stable
    • Connection : Hardwired
    • Voltage : 120 to 600 V
    • Type : Replacement Switch
    • Features : Replacement Part
    • Contact Rating : 10A @ 600VAC
    • Enclosure Type : Not included.
    • Application Sector : Industrial
    • Horsepower Rating : 3 HP @ 208 VAC
    • Horsepower Rating : 5 HP @ 277 VAC
    • Horsepower Rating : 1-1/2 HP @ 120 VAC
    • Horsepower Rating : 7-1/2 HP @ 480 VAC
    • Contact Configuration : 1 N.O. & 1 N.C.
    • Terminal Accommodation : #14 AWG - #10 AWG
    • Horsepower Rating : 10 HP @ 3ø 240 VAC
    • Horsepower Rating : 20 HP @ 3ø 480 VAC
    • Horsepower Rating : 20 HP @ 3ø 600 VAC
    • Maximum Horsepower Rating : 20 HP @ 3ø 600VAC
    • Special Features : Replacement switch for 30 Amp Non-Fusible Safety Switch.
    • Color : Blue
    • Finish : Matte
    • Material : VALOX
    • Product Line : Pass & Seymour
