Enclosed Devices are designed for reliability and safety. Indoor NEMA type 1 and outdoor NEMA type 3R options are available. Enclosed Devices provide an easy installation for residential and commercial air conditioning systems and other single phase applications. Metallic and non-metallic enclosure options are available as well. This molded case switch is 60A and 2 pole. It has 22kA rating, 240VAC, and NEMA 3R. This unit is used with air conditioning systems. This product is UL listed.

• Contractual warranty
• Warranty : 18 months
• Offer Sustainability
• Rohs Exemption Information : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2212001
• Sustainable Offer Status : Green Premium product
• Toxic Heavy Metal Free : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc : Yes
• China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Circularity Profile : N/A
• Eu Rohs Directive : Compliant
• Complementary
• Product Certifications : UL Listed

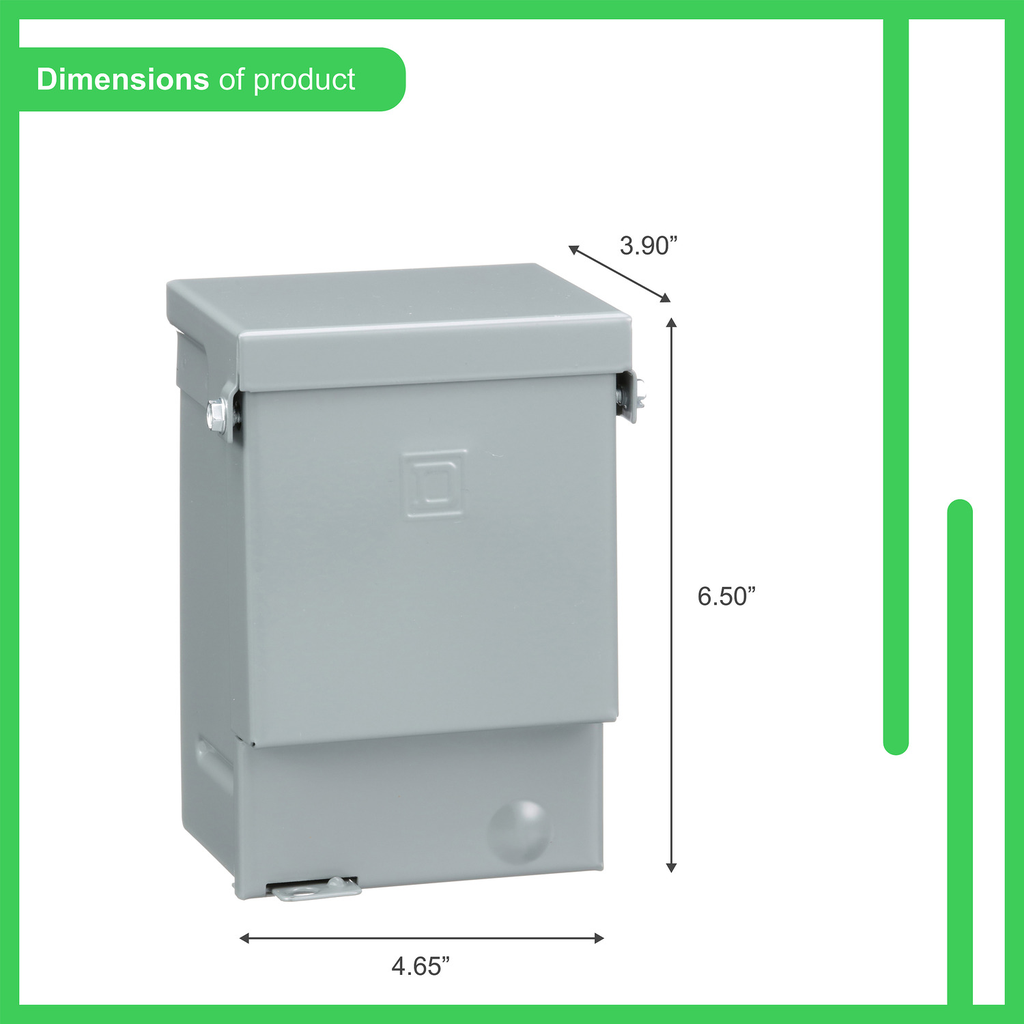

• Height : 165 mm
• Phase : 1 phase
• Net Weight : 1.361 kg
• Type Of Installation : enclosed outdoor
• Ambient Air Temperature For Operation : 40 °C
• Line Rated Current : 60 A
• Width : 118 mm
• Depth : 99 mm
• Specifications
• Range Of Product : QO
• Product Or Component Type : enclosed molded case switch || weatherproof enclosure
