SQUARE D

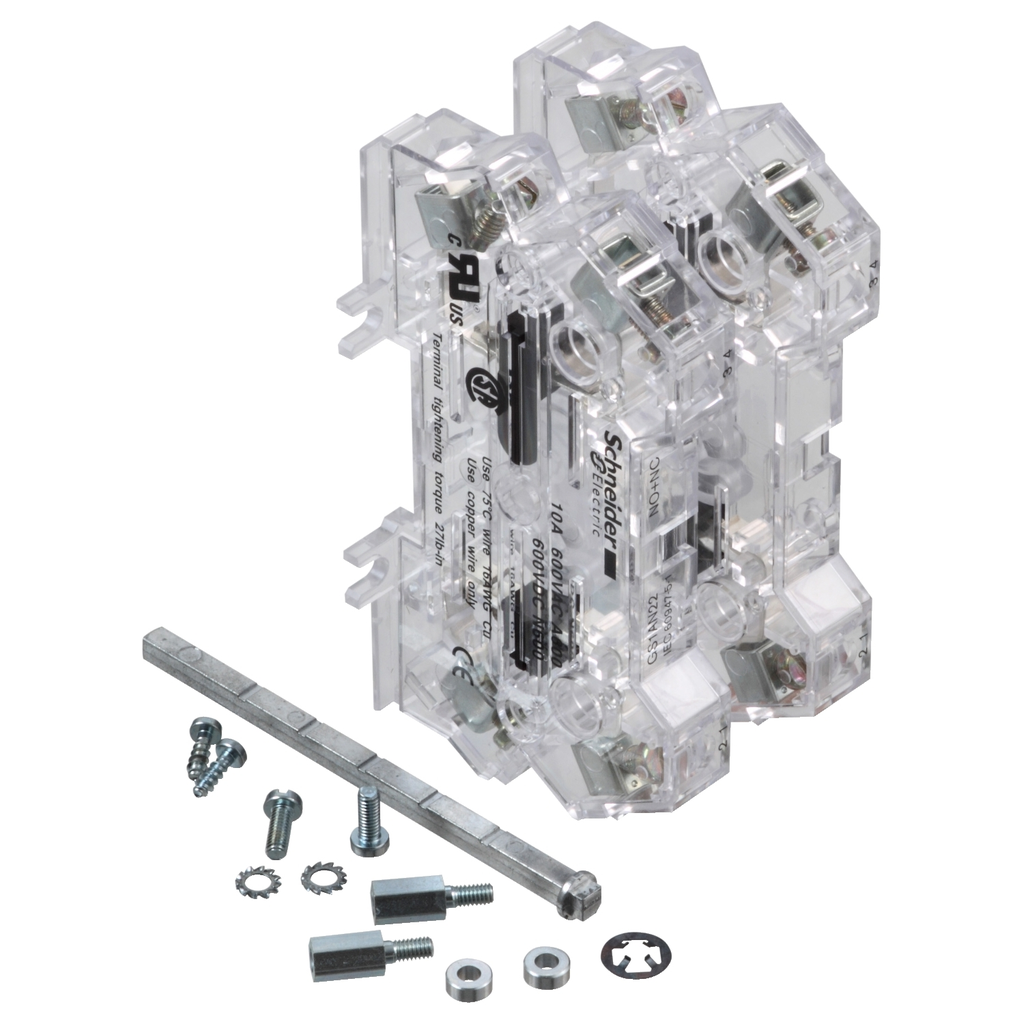

Auxiliary contacts, TeSys GS, 2NC+2NO, instantaneous, left side mounting, for GS1 and GS2 with front/right handle

DISCONNECT SWITCH AUX CONTACT

SQDGS1AN22 GS1AN22 3389110563283
149.11 / EA
http://schema.org/OutOfStock
Mayer-DDS-Auxiliary contacts, TeSys GS, 2NC+2NO, instantaneous, left side mounting, for GS1 and GS2 with front/right handle-1
  • Country of Origin: France
  • Fuse Type: BS, DIN, NFC
  • Net Weight: 0.238 kg
  • Warranty Length: 18 mth
  • Weight: 0.238 kg
TeSys GS instantaneous auxiliary contact block for all 3-pole and 4-pole 50-1250A IEC and 30-800A UL fuse switch-disconnectors GS2D, GS2E, GS2F, GS2G, GS2J, GS2K, GS2L, GS2M, GS2N, GS2P, GS2Q, GS2S, GS2T, GS2V. It provides 2NC+2NO contacts rated up to 4A/48V DC-13 and 10A/230V AC-15, for I/O position signaling. Right-hand side mounting and connection by screw terminals. Multi standards certified (IEC, UL), it conforms to RoHS/REACh regulation.
QTY
  • Product Description
  • Features
  • Specifications
TeSys GS instantaneous auxiliary contact block for all 3-pole and 4-pole 50-1250A IEC and 30-800A UL fuse switch-disconnectors GS2D, GS2E, GS2F, GS2G, GS2J, GS2K, GS2L, GS2M, GS2N, GS2P, GS2Q, GS2S, GS2T, GS2V. It provides 2NC+2NO contacts rated up to 4A/48V DC-13 and 10A/230V AC-15, for I/O position signaling. Right-hand side mounting and connection by screw terminals. Multi standards certified (IEC, UL), it conforms to RoHS/REACh regulation.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Type Of Operating Handle : direct frontal || external frontal || direct right side || external right side
    • Range Compatibility : TeSys TeSys GS fuse-switch disconnector
    • Net Weight : 0.238 kg
    • Electrical Durability : 30000 cycles AC-15
    • Fuse Type : DIN || NFC || BS
    • Mechanical Durability : 30000 cycles
    • Line Rated Current : 200 A || 60 A || 600 A || 630 A || 315 A || 400 A || 800 A || 250 A || 125 A || 1250 A || 160 A || 50 A || 63 A || 100 A
  • Specifications
    • Country of Origin : France
    • Weight : 0.238 kg
    • Range Of Product : TeSys
    • [Ith] Conventional Free Air Thermal Current : 20 A (at 40 °C)
    • Product Or Component Type : auxiliary contact
    • Contact Application : O and I position signalling
    • Contacts Type And Composition : 2 NO + 2 NC
    • [Ie] Rated Operational Current : 1 A 220 V DC-13 || 10 A 230 V AC-15 || 12 A 127 V AC-15 || 4 A 48 V DC-13 || 6 A 440 V AC-15 || 8 A 400/415 V AC-15 || 1.2 A 110 V DC-13
    • Contact Operation : instantaneous
    • Device Short Name : GS1AN
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Take-Back : No
    • Sustainable Packaging : No
    • Eu Rohs Directive : Compliant
  • Contractual warranty
    • Warranty : 18 months
