Safety switch accessory, heavy duty, equipment grounding kit, E4, 1200A

HDSS EQUIP GRND ASSY 240V+600V

SQDPKOGTA8 PKOGTA8 785901998419
150.82 / EACH
http://schema.org/OutOfStock
Safety switch accessory, heavy duty, equipment grounding kit, E4, 1200A
  • Country of Origin: USA
  • Warranty Length: 18 mth

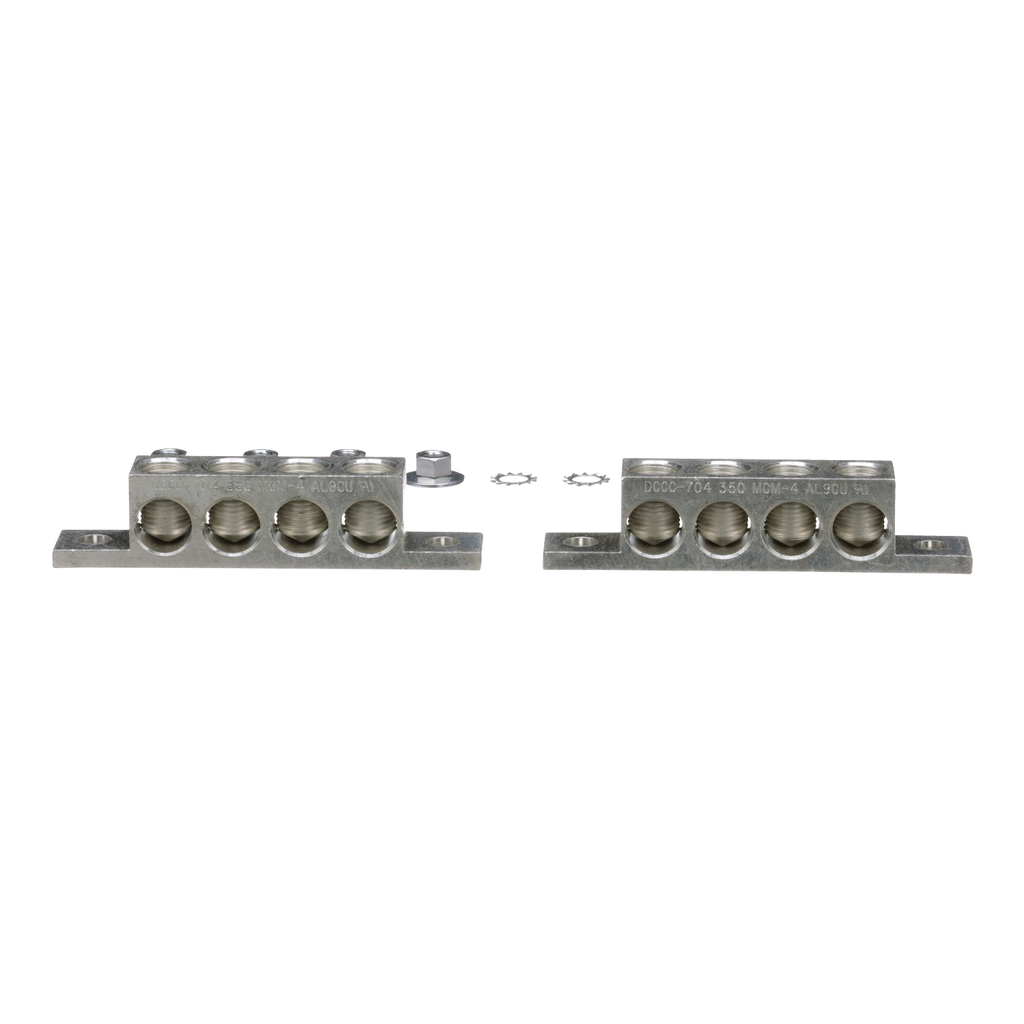

Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. They also come with many field installable or factory installed accessories. This equipment grounding kit is one of the available accessories. The grounding bar is rated for 1200A and has 8 terminals which accept 4 AWG to 350kcmil conductor. The grounding kits are UL listed.
QTY
  • Product Description
  • Features
  • Specifications
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. They also come with many field installable or factory installed accessories. This equipment grounding kit is one of the available accessories. The grounding bar is rated for 1200A and has 8 terminals which accept 4 AWG to 350kcmil conductor. The grounding kits are UL listed.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Contractor
    • OEM - Control Panelbuilder
    • Panel Builder
  • Line Rated Current
    • 1200 A E2
    • 1200 A E4
  • Persona Type Ids
    • LC
    • OM8
    • PB
  • Tightening Torque
    • 275-275 lbf.in (AWG 4...350 kcmil)
  • AWG Gauge
    • 350 kcmil copper or aluminium
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Important Information Attributes
    • B2B Bullet Point 1 : Solid neutral assembly kit for heavy duty safety switches
    • B2B Bullet Point 2 : Equipment grounding kit rated for up to 1200A
    • B2B Bullet Point 3 : Available for factory or field installation
    • B2B Bullet Point 5 : UL listed
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • HTML Description : HDSS EQUIP GRND ASSY 240V+600V 1200A
    • Manufacturer : Schneider Electric
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Legacy WEEE Scope : In
    • WEEE Product Category : 4
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1917
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Energy Efficiency Optimized : False
    • Halogen Free Status : Halogen free plastic parts product
    • Package Weight Lbs : 353.802 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : safety switch grounding bar
    • Range Of Product : Square D
    • Returnability : Yes
    • Series Name : heavy duty
    • Sustainable Packaging : Yes
    • Relationship Type : Compatible relationship
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : safety switch grounding bar
    • Range Of Product : Square D
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=365817&lang=en-us
    • Take Back : No
    • Halogene Performance : Halogen free plastic parts product
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • EU ROHS Directive : Compliant with Exemptions
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : United States
