SQUARE D

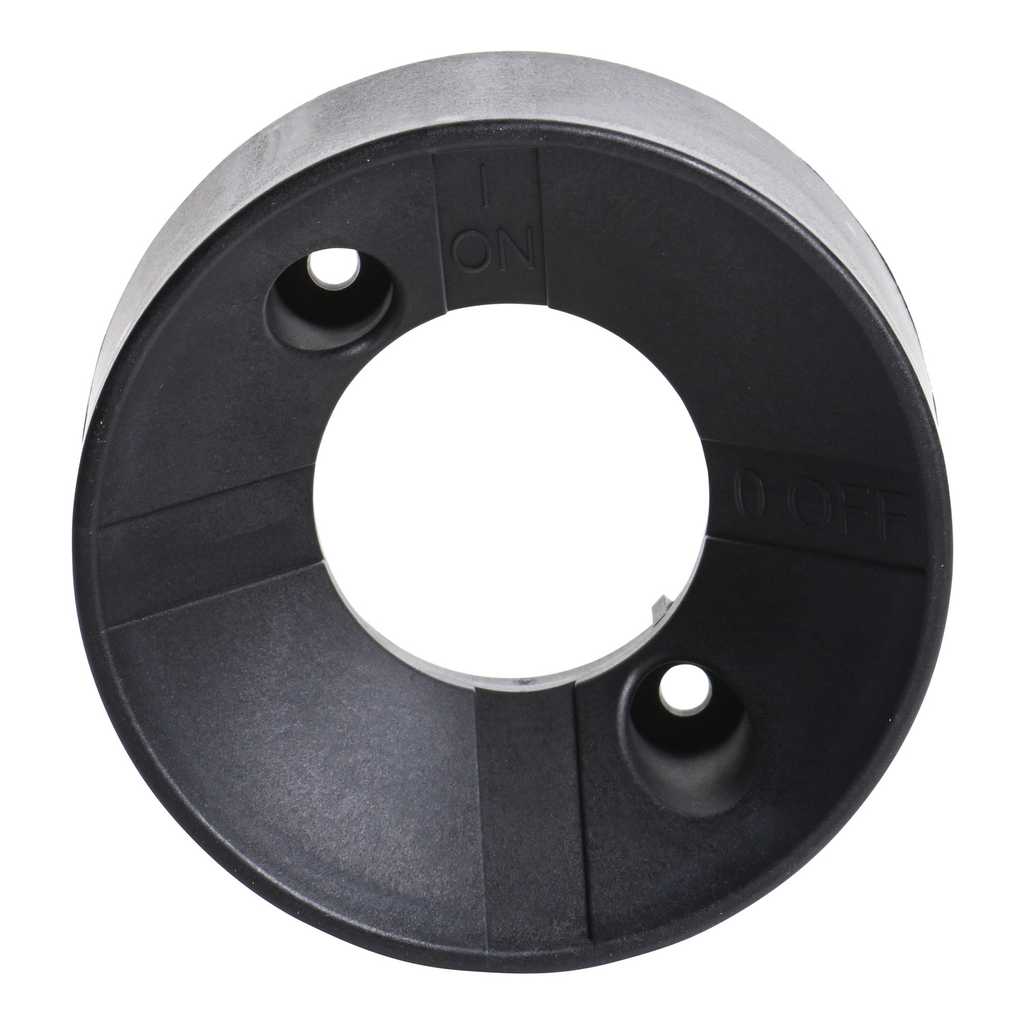

Disconnect switch, TeSys VLS, guide cone, for alignment of shaft

SHAFT GUIDE CONE

SQDVLSGC VLSGC 3606481818355
14.86 / EA
http://schema.org/OutOfStock
Mayer-DDS-Disconnect switch, TeSys VLS, guide cone, for alignment of shaft-2
  • Country of Origin: Italy
  • Length: 30 mm
  • Net Weight: 0.1 kg
  • Weight: 0.1 kg
  • Width: 75 mm
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This guide cone is used for alignment of the shaft with the disconnect switch. Guide cone is used with pistol grip handles and shafts. This guide cone has a diameter of 2.95 inches and is 1.18 inches deep. The cone weighs 0.22 lbs. This guide cone is cULus Listed and meets IEC 60947-3 requirements.
QTY
  • Product Description
  • Specifications
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This guide cone is used for alignment of the shaft with the disconnect switch. Guide cone is used with pistol grip handles and shafts. This guide cone has a diameter of 2.95 inches and is 1.18 inches deep. The cone weighs 0.22 lbs. This guide cone is cULus Listed and meets IEC 60947-3 requirements.
  • Specifications
    • Country of Origin : Italy
    • Length : 30 mm
    • Width : 75 mm
    • Weight : 0.1 kg
    • Range : TeSys
  • Complementary
    • Length : 30 mm
    • Net Weight : 0.1 kg
    • Width : 75 mm
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • Reach Free Of Svhc : Yes
    • Take-Back : No
    • Sustainable Packaging : No
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
