Schneider Electric at Mayer

Safety switch accessory, solid neutral assembly, heavy duty, copper/aluminum, 600A

NEUTRAL ASSEMBLY INSULATED GRO

SQDCH600SN CH600SN 785901374343
353.44 / EA
http://schema.org/OutOfStock

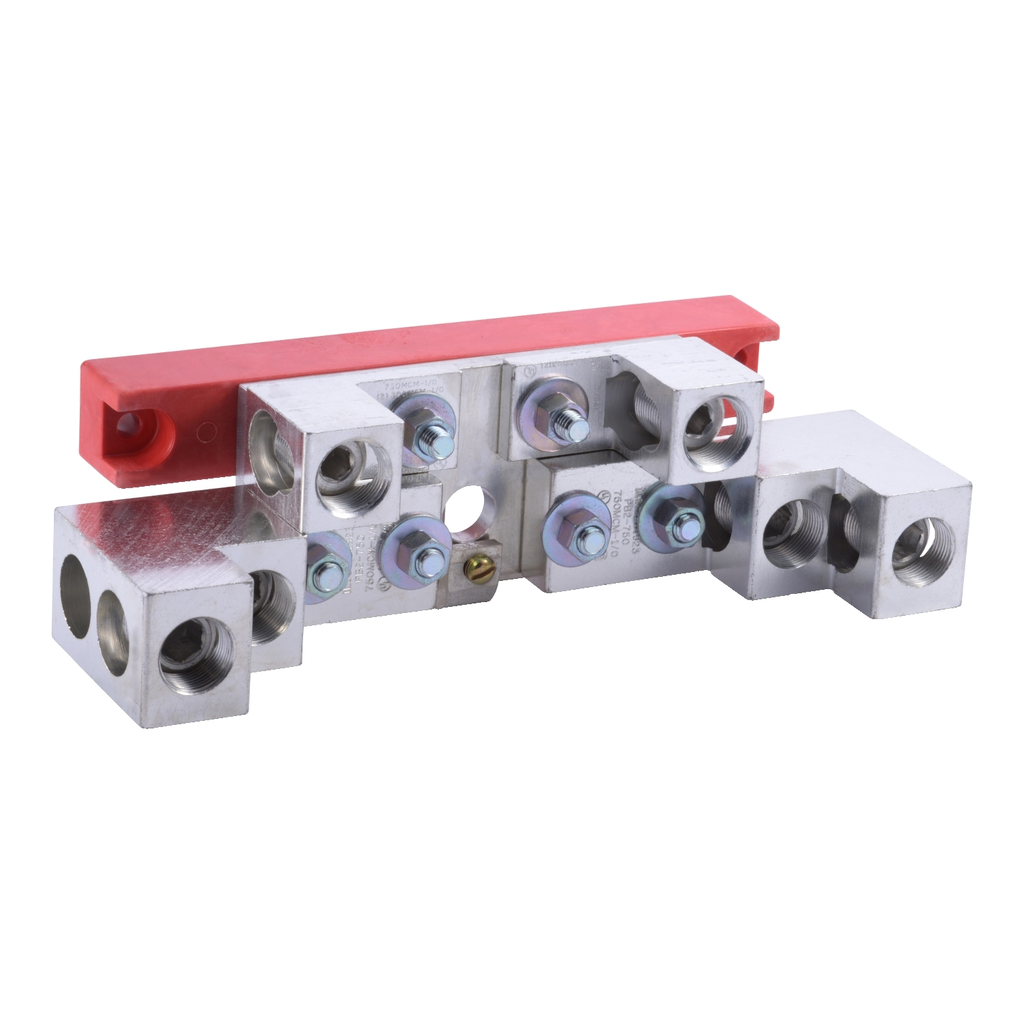

Mayer-DDS-Safety switch accessory, solid neutral assembly, heavy duty, copper/aluminum, 600A-1
  • Line Rated Current: 400 A, 600 A
QTY
  • Specifications
  • Specifications
    • Series Name : heavy duty
    • Range Of Product : Square D
    • Product Or Component Type : safety switch solid neutral assembly
  • Offer Sustainability
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1404026EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Eu Rohs Directive : Compliant with Exemptions
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Halogen Content Performance : Halogen free plastic parts product
  • Complementary
    • Tightening Torque : 340 lbf.in, AWG 1/0...750 kcmil, copper or aluminium || 550 lbf.in, 2 x AWG 1/0...2 x 300 kcmil, copper or aluminium || 550 lbf.in, AWG 1/0...750 kcmil
    • Line Rated Current : 400 A E1 || 600 A E4
    • Awg Gauge : AWG 1/0...750 kcmil copper or aluminium || 2 x AWG 1/0...2 x 300 kcmil copper or aluminium
