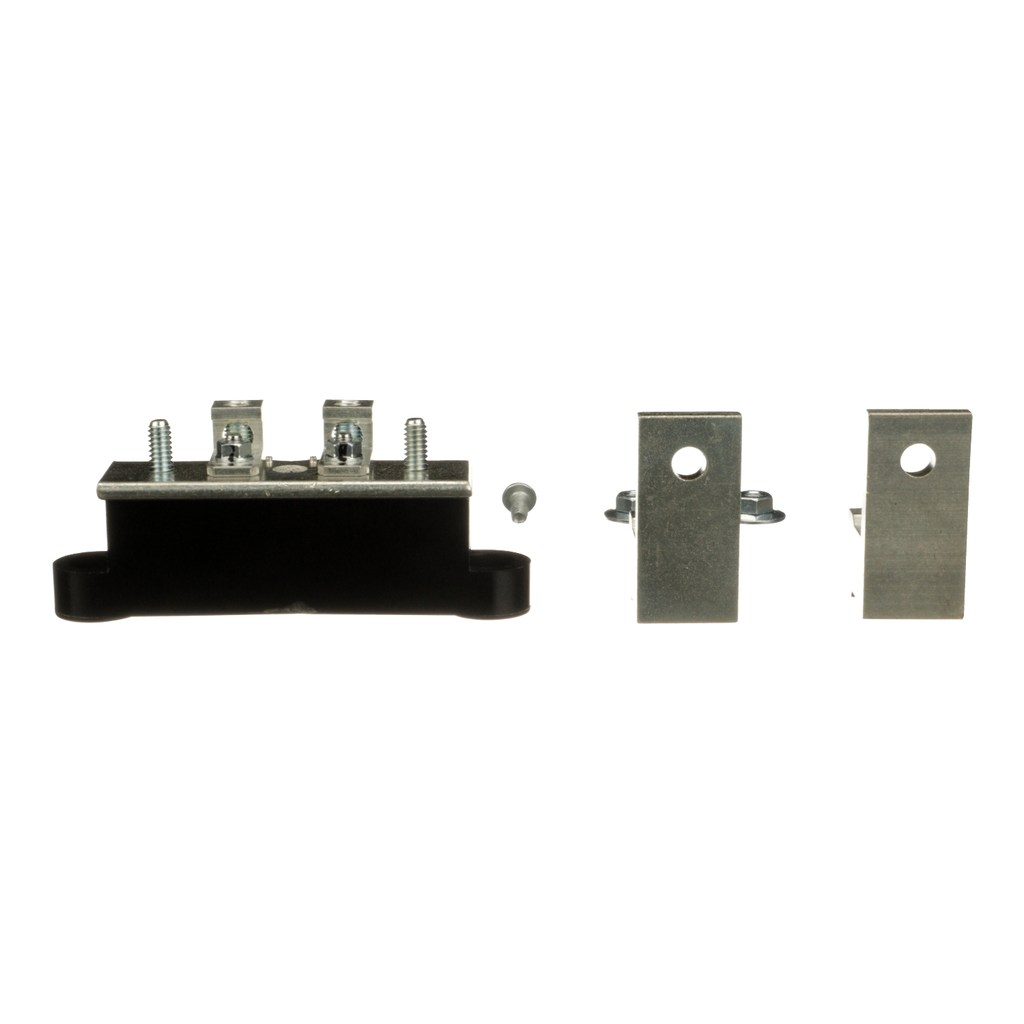

Safety switch accessory, solid neutral assembly, heavy duty, copper/aluminum, 200A

NEUTRAL ASSEMBLY INSULATED GRO

SQDCH200SN CH200SN 785901994800
194.03 / EA
http://schema.org/OutOfStock
Mayer-DDS-Safety switch accessory, solid neutral assembly, heavy duty, copper/aluminum, 200A-2
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Electrical interlocks for Series F, 60A, fusible, general duty safety switches, are available in kit form for field installation. Each kit contains instructions for proper field mounting. A pivot arm operates from switch mechanism, breaking the control circuit before the main switch blades break. Switches with electrical interlocks installed are UL Listed. This heavy duty safety switch solid neutral assembly has a rated current of 200A and will accept a AWG gauge of 300 kcmil & AWG 2/0 for copper or aluminium.
QTY
  • Product Description
  • Features
  • Specifications
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Electrical interlocks for Series F, 60A, fusible, general duty safety switches, are available in kit form for field installation. Each kit contains instructions for proper field mounting. A pivot arm operates from switch mechanism, breaking the control circuit before the main switch blades break. Switches with electrical interlocks installed are UL Listed. This heavy duty safety switch solid neutral assembly has a rated current of 200A and will accept a AWG gauge of 300 kcmil & AWG 2/0 for copper or aluminium.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1305032
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Pvc Free : Yes
    • Sustainable Packaging : No
    • Eu Rohs Directive : Compliant
  • Specifications
    • Range Of Product : Square D
    • Product Or Component Type : safety switch solid neutral assembly
    • Series Name : heavy duty
  • Complementary
    • Tightening Torque : 50 lb.in, AWG 3...AWG 2 || 45 lb.in, AWG 6...AWG 4 || 40 lb.in, AWG 8 || 35 lb.in, AWG 12...AWG10 || 35 lb.in, AWG 14...AWG 10
    • Line Rated Current : 200 A
    • Awg Gauge : AWG 6...250 kcmil copper or aluminium || AWG 12...AWG 2 copper or aluminium
