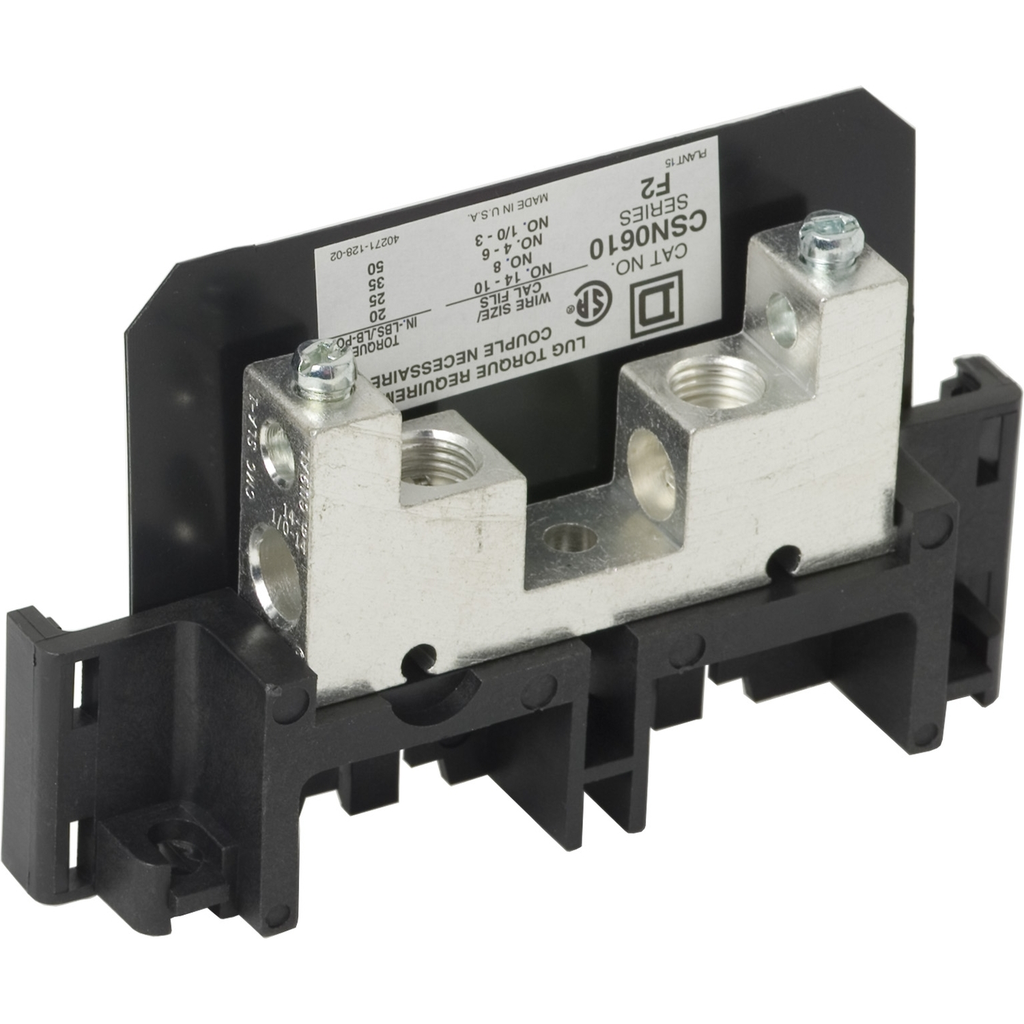

Safety switch solid neutral assembly, Square D, copper/aluminium, max 100A F2/F6 rated

SWITCH NEUTRAL KIT

SQDCSN0610 CSN0610 785901723134
115.65 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Safety switch solid neutral assembly, Square D, copper/aluminium, max 100A F2/F6 rated-1
  • Line Rated Current: 100 A, 60 A
QTY
  • Specifications
  • Complementary
    • Tightening Torque : 50 lb.in, AWG 3...AWG 1/0 || 35 lb.in, AWG 6...AWG 4 || 25 lb.in, AWG 8 || 20 lb.in, AWG 14...AWG 10
    • Line Rated Current : 60 A F5 || 60 A F6 || 100 A F2 || 100 A F6
    • Awg Gauge : AWG 1/0 copper or aluminium || AWG 6 copper or aluminium
  • Offer Sustainability
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1304031
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Compliant with Exemptions
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Specifications
    • Series Name : heavy duty
    • Range Of Product : Square D
    • Product Or Component Type : safety switch solid neutral assembly
