SQUARE D

LINERGY FM 3P DIS.BLOCK 200A 24M 42HOLES

MULTICLIP DISTRIBUTION BLOCK 2

SQD4013 4013 785901704966
495.31 / EA
http://schema.org/OutOfStock

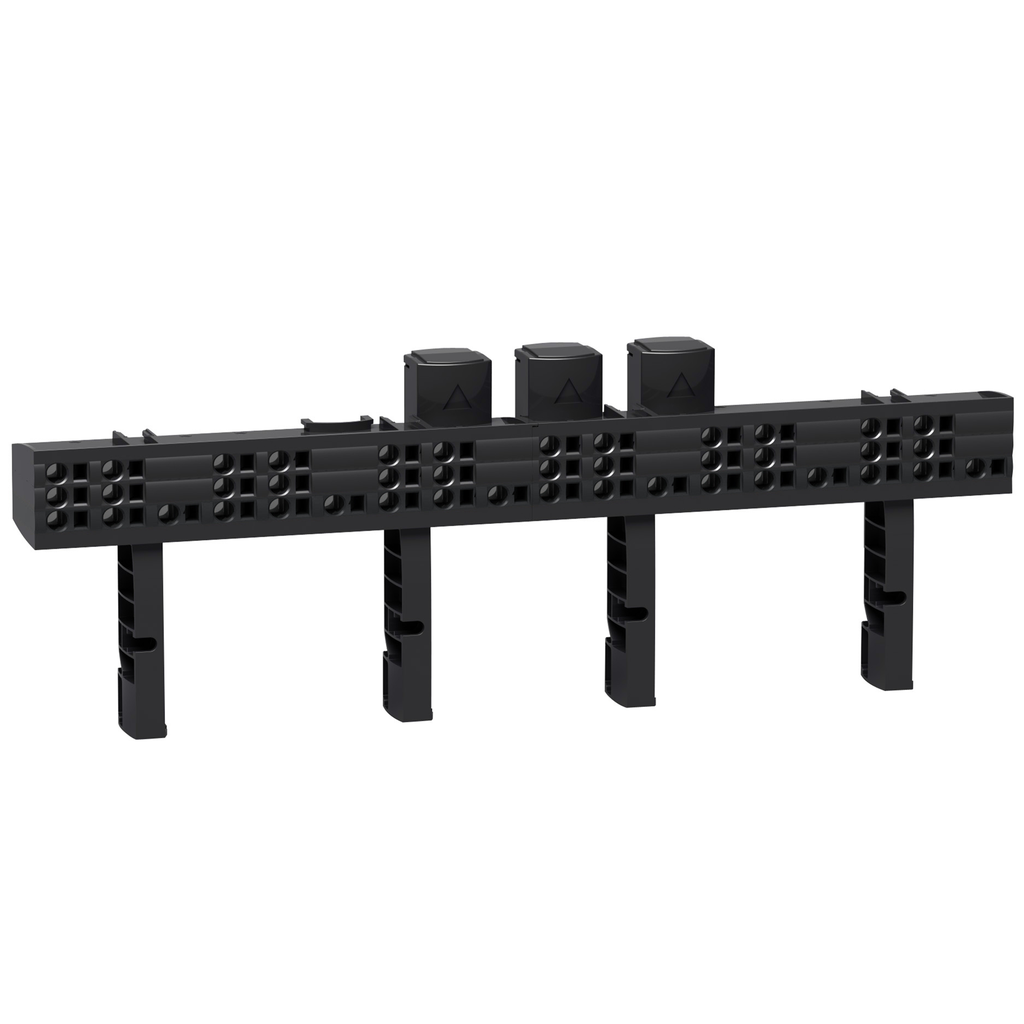

Mayer-LINERGY FM 3P DIS.BLOCK 200A 24M 42HOLES-1
  • Certifications: ASEFA
  • Line Rated Current: 200 A, 40 °C
  • Net Weight: 1.32 kg
  • Standard: IEC 60947-7-1, IEC 61439-1, Inside Prisma, IEC 61439-2, Inside Prisma
  • Warranty Length: 18 mth
Linergy FM device feeder for Prisma G. It is compatibility with spacial enclosures. The rated operational voltage is 690V AC. The rated operational current is 200A. It provides IPxx B degree of protection. It provides 3P poles with anthracite grey (RAL 7016) surface treatment. It could be installed in the modular device by the DIN rail, slotted backplate or plain backplate mounting support. It is suitbale for 24 total number of 18 mm modules. It could be connection with crimped lug, flexible bars and quick-connect terminal strips. It is certified by ASEFA. It is compliant with both IEC 61439-1 (inside Prisma), IEC 61439-2 (inside Prisma) and IEC 60947-7-1. It is also compliant with Green Premium (RoHS/REACH).
QTY
  • Product Description
  • Specifications
Linergy FM device feeder for Prisma G. It is compatibility with spacial enclosures. The rated operational voltage is 690V AC. The rated operational current is 200A. It provides IPxx B degree of protection. It provides 3P poles with anthracite grey (RAL 7016) surface treatment. It could be installed in the modular device by the DIN rail, slotted backplate or plain backplate mounting support. It is suitbale for 24 total number of 18 mm modules. It could be connection with crimped lug, flexible bars and quick-connect terminal strips. It is certified by ASEFA. It is compliant with both IEC 61439-1 (inside Prisma), IEC 61439-2 (inside Prisma) and IEC 60947-7-1. It is also compliant with Green Premium (RoHS/REACH).
  • Specifications
    • Range Of Product : Linergy
    • Range Compatibility : Prisma G enclosure || Prisma P enclosure || Prisma PH enclosure
    • Product Or Component Type : device feeder
    • Product Name : Linergy FM
    • Range : Linergy
    • Product Compatibility : Spacial enclosures
    • Ip Degree Of Protection : IPxx B
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • Connections - Terminals : supply crimped lug50-50 mm² || supply flexible bars, 20 x 3 mm || distribution quick-connect terminal strips phase) , 12 x 4-10 mm² flexible) || distribution quick-connect terminal strips phase) , 12 x 4-10 mm² rigid) || distribution quick-connect terminal strips neutral) , 18 x 4-10 mm² flexible) || distribution quick-connect terminal strips neutral) , 18 x 4-10 mm² rigid)
    • Line Rated Current : 200 A 40 °C
    • [Ue] Rated Operational Voltage : 690 V AC
    • Mounting Support : plain backplate || DIN rail || slotted backplate
    • Total Number Of 18 Mm Modules : 24
    • Installed Device : modular device
    • 9 Mm Pitches : 48
    • Net Weight : 1.32 kg
    • [Ui] Rated Insulation Voltage : 750 V AC 50/60 Hz
    • [Ie] Rated Operational Current : 200 A
    • Poles Description : 3P
    • [Uimp] Rated Impulse Withstand Voltage : 8 kV
    • Color : anthracite grey RAL 7016)
    • I²T On Activation : 6700000 A².s
    • [Ipk] Rated Peak Withstand Current : 20 kA
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP121221EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Eu Rohs Directive : Compliant
    • Halogen Content Performance : Halogen free product
  • Environment
    • Product Certifications : ASEFA
    • Standards : IEC 61439-1, inside Prisma || IEC 61439-2, inside Prisma || IEC 60947-7-1
