Panelboard accessory, I-Line, drip hood, for HCP-SU, surface mounted, 26 inches W, 9.5 inches D

PANELBOARD DRIP HOOD ASSEMBLY

SQDHCT2DH26 HCT2DH26 785901501442
222.27 / EA
http://schema.org/OutOfStock

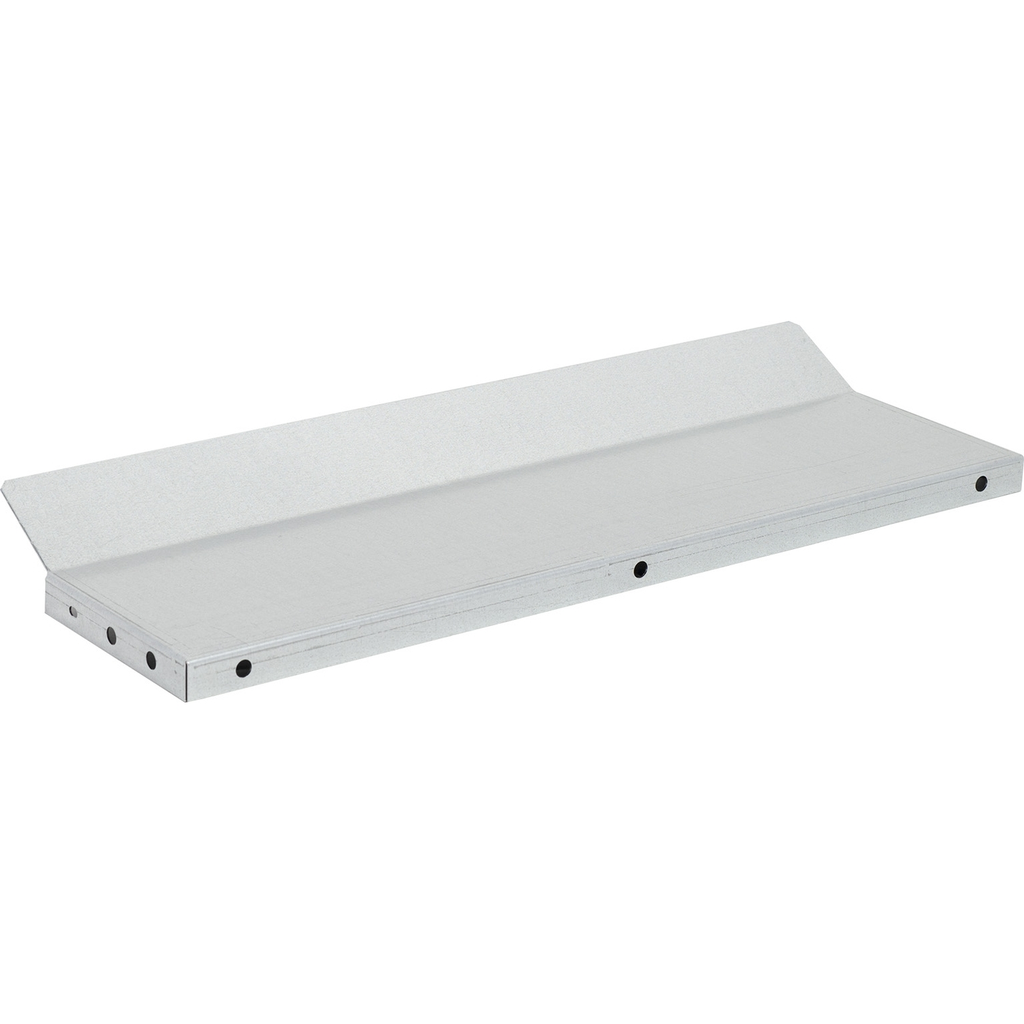

Mayer-DDS-Panelboard accessory, I-Line, drip hood, for HCP-SU, surface mounted, 26 inches W, 9.5 inches D-1
  • Depth: 2.52 in
  • Warranty Length: 18 mth
Square D I-Line Power Distribution Panelboards are ideal for service entrance equipment or downstream distribution panels in the electrical system. I-line power distribution panelboards are for use on AC or DC systems. The I-Line power distribution panelboard is the most versatile on the market and feature Schneider Electric's unique breaker engagement system which allows 15 A branch circuit breaker next to or across from a 1200 A circuit breaker. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. This drip hood is used with surface mount HCP-SU I-line distribution panelboards. This product is certified to cULus & CE standards. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories (UL) Listed under File E33139.
QTY
  • Product Description
  • Features
  • Specifications
Square D I-Line Power Distribution Panelboards are ideal for service entrance equipment or downstream distribution panels in the electrical system. I-line power distribution panelboards are for use on AC or DC systems. The I-Line power distribution panelboard is the most versatile on the market and feature Schneider Electric's unique breaker engagement system which allows 15 A branch circuit breaker next to or across from a 1200 A circuit breaker. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. This drip hood is used with surface mount HCP-SU I-line distribution panelboards. This product is certified to cULus & CE standards. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories (UL) Listed under File E33139.
  • Features
    • I-Line power distribution panelboard is the most versatile on the market
    • Capable of feeding large motor loads and are utilized in almost every market segment
    • Fully rated and series rated systems available
    • Well suited to rearranging circuits
    • Interior, front and circuit breakers require only a screwdriver for installation
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Important Information Attributes
    • Carbon Footprint Of The Distribution Phase A4 : 0.826504515053105, 0.8 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 4 kg CO2 eq., 3.824810772751432
    • Carbon Footprint Of The Installation Phase A5 : 0.003647742642793765, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 14 kg CO2 eq., 14.122473902660513
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Halogen Free Status : Halogen free product
    • Package Weight Lbs : 2.86 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : drip hood
    • Range Of Product : I-Line
    • Returnability : Yes
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 19 kg CO2 eq.
    • Ue Rated Operational Voltage2 : 600 V AC/DC 50/60 Hz
    • Medium Desc : Panelboard accessory, I-Line, drip hood, for HCP-SU, surface mounted, 26 inches W, 9.5 inches D
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2509036EN
    • Database Version : 2024-01
    • Pep Verification Date : 2025-10-15
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
    • Data Source : extrapolated product
    • Functional Unit Description : Accommodate and protect control, command and protection devices via a panelboard cover/trim with door (2184.4 mm x 241.3 mm x 1073.15 mm) , providing protection levels IP = IP30 and IK = IK07,or a reference service life of 20 years, in commercial/industrial applications
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; United States, US
    • Energy Model Installation A5 2 : [A5]
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; United States, US
    • Energy Model End Of Life C1 C4 2 : [C1 - C4]
    • Global Commercial Status : Commercialised
    • Ue Rated Operational Voltage5 : 600 V AC/DC 50/60 Hz
  • Environment Attributes Main
    • China ROHS Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • EU ROHS Directive : Compliant By Exemption , Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Halogene Performance : Halogen free product
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Silicon Free : Yes
    • Carbon Footprint : 18.777436933107843
    • Environmental Disclosure : ENVPEP2509036EN
    • Halogen Content Performance : Halogen free product
    • Nema Degree Of Protection : NEMA 2
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2509036EN
    • Pep Verification Date : 2025-10-15
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : drip hood
    • Range Of Product : I-Line
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Depth : 2.52 in
