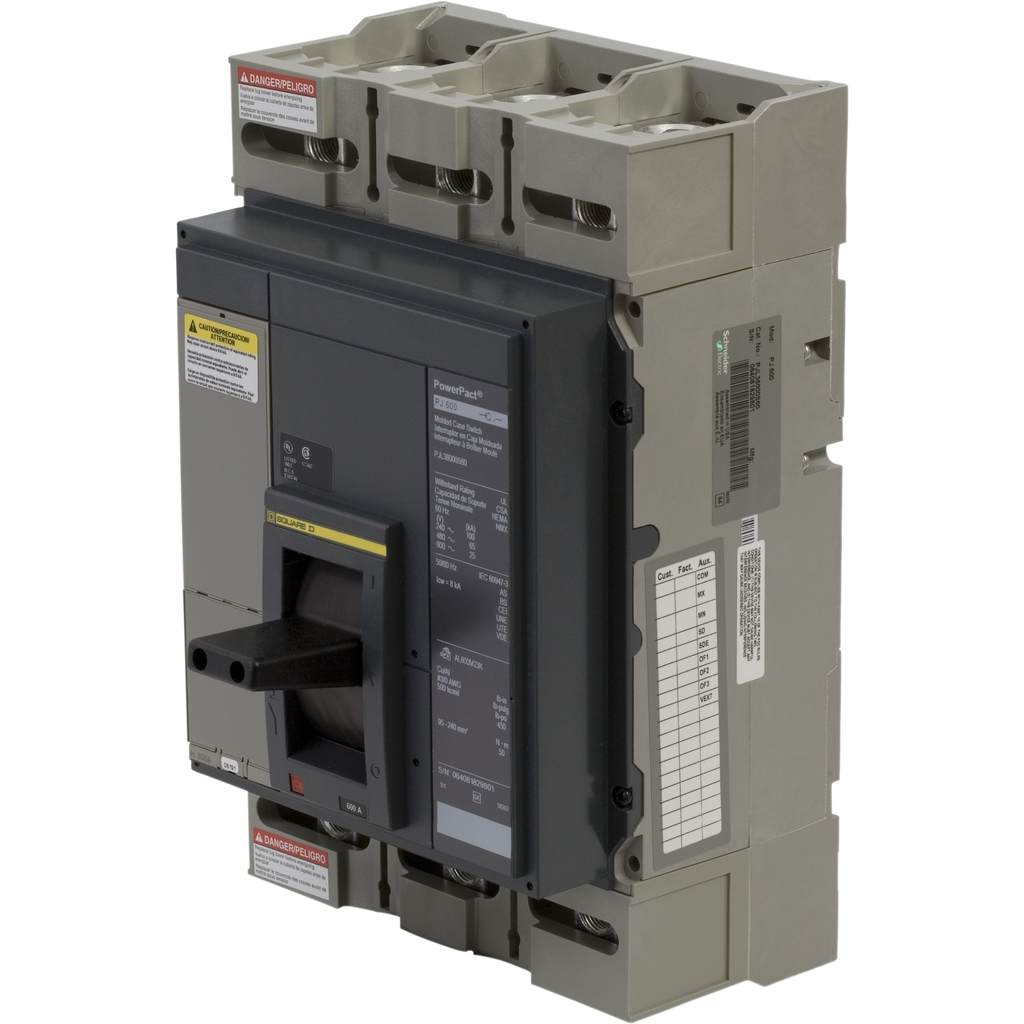

Automatic switch, PowerPacT P, 600A, 3 pole, 600VAC, 25kA, lugs, magnetic

AUTOMATIC MOLDED CASE SWITCH 6

SQDPJL36000S60 PJL36000S60 785901854869
6462.02 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Automatic switch, PowerPacT P, 600A, 3 pole, 600VAC, 25kA, lugs, magnetic-2
  • Depth: 8.05 in
  • Height: 12.86 in
  • Warranty Length: 18 mth
  • Width: 8.27 in
PowerPacT P-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the P-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT P-Frame switches are available in unit mount, I-Line, plug-in, or drawout constructions. This switch has lugs on both the line and load sides. This PowerPacT P, 600A, 3 pole, automatic switch has a short circuit withstand current rating of 25kA at 600VAC. PowerPacT P automatic switches comply to UL, CSA, ANCE, and IEC standards.
QTY
  • Product Description
  • Features
  • Specifications
PowerPacT P-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the P-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT P-Frame switches are available in unit mount, I-Line, plug-in, or drawout constructions. This switch has lugs on both the line and load sides. This PowerPacT P, 600A, 3 pole, automatic switch has a short circuit withstand current rating of 25kA at 600VAC. PowerPacT P automatic switches comply to UL, CSA, ANCE, and IEC standards.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2206033EN
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Removable Battery : Yes
    • Circularity Profile : ENVEOLI2206033EN
    • Take-Back : No
    • Pvc Free : Yes
    • Global Warming ; Total Life Cycle​ : 1 868 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 1868.1985325604
  • Specifications
    • Country of Origin : Mexico
    • Width : 8.27 in
    • Height : 12.86 in
    • Product Or Component Type : automatic switch
    • Device Application : distribution
  • Complementary
    • Terminal Identifier : AL800M23K
    • Height : 12.86 in
    • Tightening Torque : 50-50 N.m 95-240 mm² (3 x AWG 3/0...3 x 500 kcmil) || 1.0-1.3 N.m
    • Breaking Capacity Code : J
    • Electrical Connection : lugs, line || lugs, load
    • Poles Description : 3P
    • Width : 8.27 in
    • Depth : 8.05 in
  • Contractual warranty
    • Warranty : 18 months
