Automatic switch, PowerPacT P, 1200A, 3 pole, 600VAC, 25kA, lugs, magnetic

AUTOMATIC MOLDED CASE SWTICH 6

SQDPJM36000S12 PJM36000S12 785901004028
11647.14 / EA
http://schema.org/OutOfStock

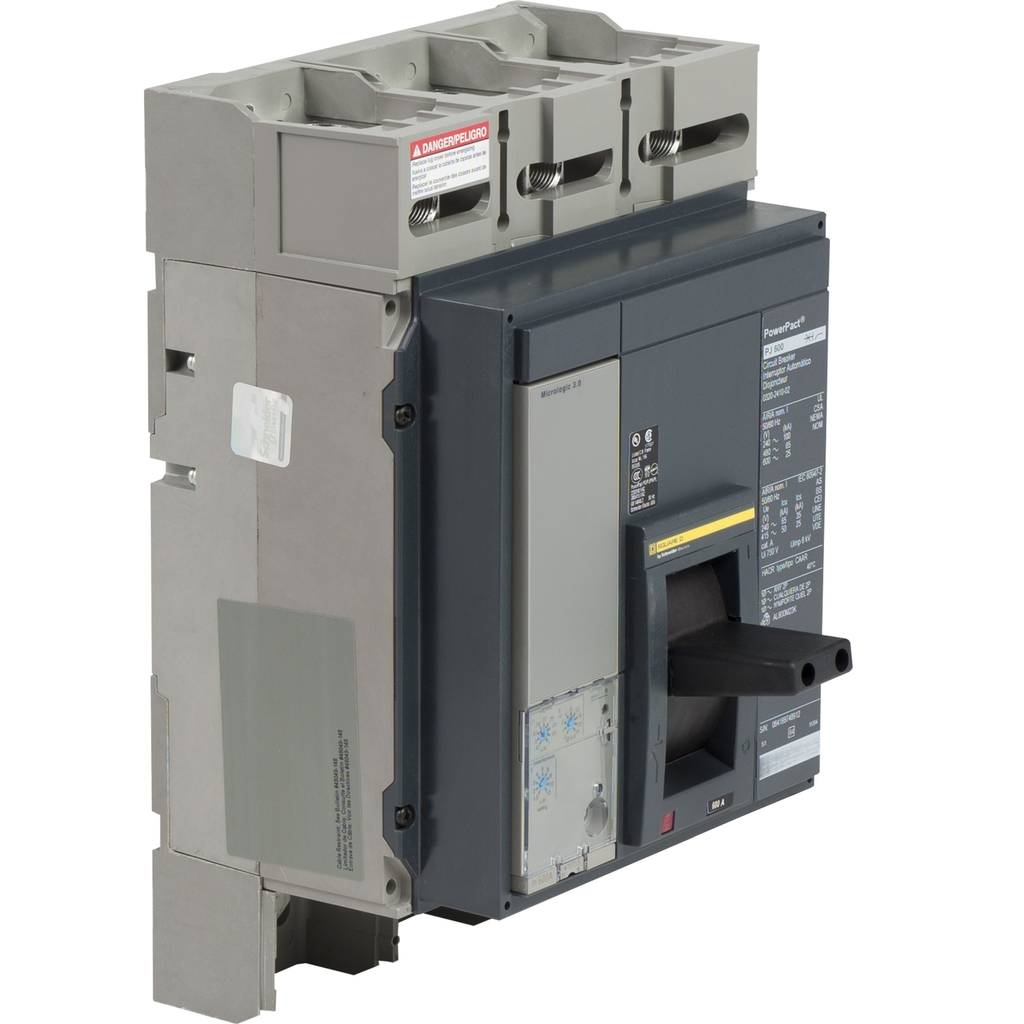

Mayer-DDS-Automatic switch, PowerPacT P, 1200A, 3 pole, 600VAC, 25kA, lugs, magnetic-1
  • Country of Origin: USA
  • Depth: 8.05 in
  • Height: 16.16 in
  • Warranty Length: 18 mth
  • Width: 8.27 in
PowerPacT P-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the P-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT P-Frame switches are available in unit mount, I-Line, plug-in, or drawout constructions. This switch has lugs on the line side and terminal nuts on the load side. This PowerPacT P, 1200A, 3 pole, automatic switch has a short circuit withstand current rating of 25kA at 600VAC. PowerPacT P automatic switches comply to UL, CSA, ANCE, and IEC standards.
QTY
  • Product Description
  • Features
  • Specifications
PowerPacT P-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the P-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT P-Frame switches are available in unit mount, I-Line, plug-in, or drawout constructions. This switch has lugs on the line side and terminal nuts on the load side. This PowerPacT P, 1200A, 3 pole, automatic switch has a short circuit withstand current rating of 25kA at 600VAC. PowerPacT P automatic switches comply to UL, CSA, ANCE, and IEC standards.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Terminal Identifier : AL800M23K
    • Height : 16.16 in
    • Tightening Torque : 50-50 N.m 95-240 mm² (3 x AWG 3/0...3 x 500 kcmil) || 1.0-1.3 N.m
    • Breaking Capacity Code : J
    • Electrical Connection : lugs, line || terminal nut, load
    • Poles Description : 3P
    • Width : 8.27 in
    • Depth : 8.05 in
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2206033EN
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Removable Battery : Yes
    • Circularity Profile : ENVEOLI2206033EN
    • Take-Back : No
    • Pvc Free : Yes
    • Global Warming ; Total Life Cycle​ : 2 496 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 2496.4221205021
  • Specifications
    • Country of Origin : United States
    • Width : 8.27 in
    • Height : 16.16 in
    • Product Or Component Type : automatic switch
    • Device Application : distribution
  • Contractual warranty
    • Warranty : 18 months
