SQUARE D

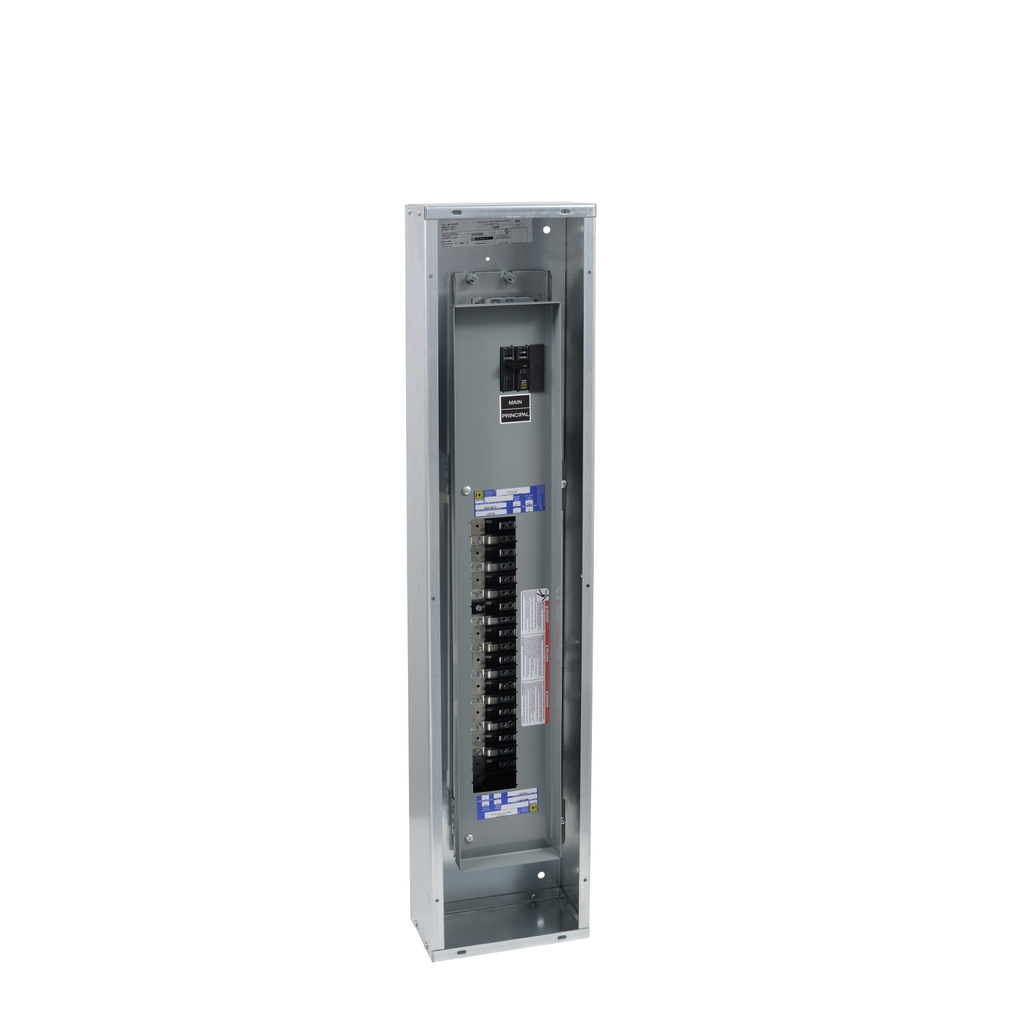

Panelboard interior, NQ, main lugs only, 225A, Cu bus, 30 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC, column width

NQCW 1P3W MLO 30 CKT 225A

SQDNQ830L2C NQ830L2C 785901700494
1551.41 / EACH
http://schema.org/OutOfStock
Panelboard interior, NQ, main lugs only, 225A, Cu bus, 30 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC, column width
  • Enclosure Height: 45 in
  • Enclosure Width: 8.625 in
  • Material: Copper
  • Number of Spaces: 30
  • Warranty Length: 18 mth
Single row NQ panelboard designed primarily for lighting and appliance branch circuit protection in commercial and industrial buildings. Designed with a column-width layout, the single row NQ panelboard offers a space-efficient solution ideal for installations where footprint is a critical consideration. Its single-row configuration offers a space-saving design, making it ideal for installations with limited wall space while maintaining ease of access for maintenance and upgrades. Engineered for streamlined performance, it provides reliable circuit protection and load management by distributing electrical power from a main source to multiple branch circuits. The panelboard supports a wide range of circuit breakers and accessories, ensuring flexibility and scalability for future expansion. This Single row NQ panelboard is rated for single phase, 3 wire and 225A. This main lug interior has 30 number of poles and copper bus as standard. This NQ panelboard interior is UL listed for applications in the USA and Canada.
QTY
  • Product Description
  • Features
  • Specifications
Single row NQ panelboard designed primarily for lighting and appliance branch circuit protection in commercial and industrial buildings. Designed with a column-width layout, the single row NQ panelboard offers a space-efficient solution ideal for installations where footprint is a critical consideration. Its single-row configuration offers a space-saving design, making it ideal for installations with limited wall space while maintaining ease of access for maintenance and upgrades. Engineered for streamlined performance, it provides reliable circuit protection and load management by distributing electrical power from a main source to multiple branch circuits. The panelboard supports a wide range of circuit breakers and accessories, ensuring flexibility and scalability for future expansion. This Single row NQ panelboard is rated for single phase, 3 wire and 225A. This main lug interior has 30 number of poles and copper bus as standard. This NQ panelboard interior is UL listed for applications in the USA and Canada.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Enclosure Nominal Height : 45 in
    • Enclosure Nominal Width : 8.625 in
  • Conformance Attributes
    • Standards : CSA, UL
  • Complementary Attributes
    • Ue Rated Operational Voltage : 240 V AC, 48 V DC
    • Iu Rated Interrupted Current : 10 kA, 22 kA, 65 kA
    • Line Rated Current : 225 A
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer
    • Circuit Breaker Type : QOB, QOB-VH, QHB
    • Tightening Torque : 4.52-5.65 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0), 11.3-11.3 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0), 31.07-31.07 N.m 13.30-177.3 mm² (AWG 6...350 kcmil), 31.07-31.07 N.m 13.30-126.7 mm² (AWG 6...250 kcmil), 31.07-31.07 N.m 107.2-152 mm² (AWG 4...300 kcmil)
    • Iu Rated Interrupted Current : 10 kA, 22 kA, 65 kA
    • Carbon Footprint Of The Distribution Phase A4 : 0.9152422279, 0.9 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 7 kg CO2 eq., 7.3018167242
    • Carbon Footprint Of The Installation Phase A5 : 0.0406782824, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 21 kg CO2 eq., 21.2947021407
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 45 kg CO2 eq., 44.7039024869
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : Y
    • Stock Policy : 2
    • H And D Domain : Safety
    • H And D Subrange : COM
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Panel components
    • H And D Enrichment Class 4 : Panelboard interior
    • Legacy Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 2532
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • China Rohs Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 3
    • Tier : 3
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : COMMERCIAL
    • Market Segmentation : Commercial
    • Product Kit Identifier : N
    • Energy Efficiency Optimized : False
    • Load Center Type : main lugs
    • Material : copper
    • Number Of Spaces : 30
    • Phase : 1 phase 3 wires
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : interiors
    • Returnability : Yes
    • Software Version : v5.9.4
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 74 kg CO2 eq.
    • Warranty In Months : 18
    • Pep Code : ENVPEP2303005EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-07-15
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent external review
    • Data Source : extrapolated product
    • Functional Unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1270 mm x 508.00 mm x 146.05 mm and NAME 1& 10- followed standard: UL 67 UL 50E and CSA22.2
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Product Weight In G2 : 3175
    • Reference Lifetime In Y2 : 20
    • Energy Consumption On Product Lifetime In Kwh : 100.21
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; MX
    • Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA
    • Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA
    • Recyclability Potential In 2 : 91
    • Offer Owner Code : 190788
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Take Back : Nej
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 74.2563418622
    • Environmental Disclosure : ENVPEP2303005EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2303005EN
    • Pep Verification Date : 2023-07-15
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Phase : 1 phase 3 wires
    • Product Or Component Type : interiors
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
