SQUARE D

Surge protection device, Surgelogic, POESE, 0.75A, 48VDC, 10kA, flange, IG

57V Operating, 68VDC, 10kA, I

SQDSSP057POESE10IG SSP057POESE10IG 785901295273
123.70 / EA
http://schema.org/OutOfStock

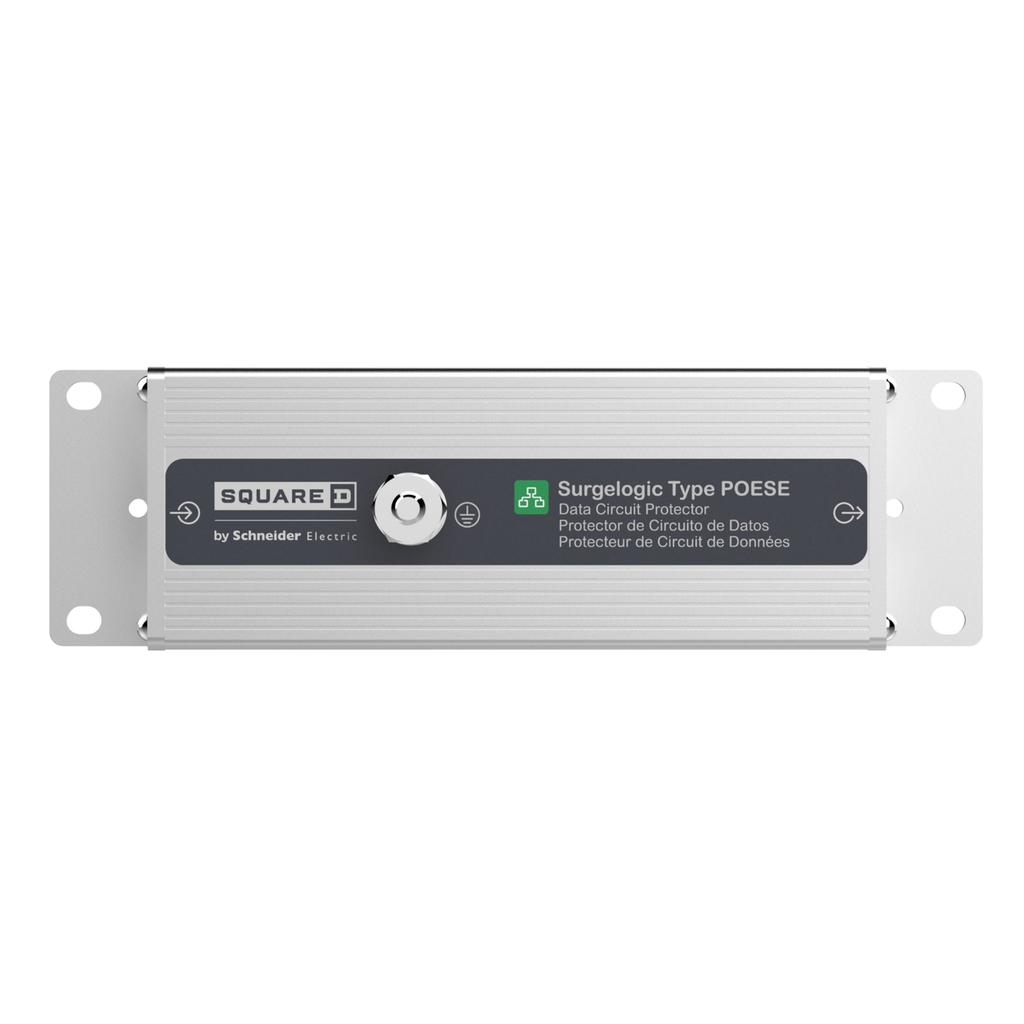

Mayer-DDS-Surge protection device, Surgelogic, POESE, 0.75A, 48VDC, 10kA, flange, IG-1
  • Country of Origin: USA
  • Depth: 40.6 mm
Surgelogic™ Type POESE systems are designed to provide highquality surge suppression for category 6 power over ethernet transmission lines. This module helps to protect critical video, security and computing equipment from damaging surges, transients and circulating ground currents up to 0.75 Amps. This unit takes a small footprint while still providing 10,000 Amps of surge current protection and an isolated ground. As a UL 497B qualified range, the standards for protecting data communicaiton and fire-alarm circuits are high.
QTY
  • Product Description
  • Features
  • Specifications
Surgelogic™ Type POESE systems are designed to provide highquality surge suppression for category 6 power over ethernet transmission lines. This module helps to protect critical video, security and computing equipment from damaging surges, transients and circulating ground currents up to 0.75 Amps. This unit takes a small footprint while still providing 10,000 Amps of surge current protection and an isolated ground. As a UL 497B qualified range, the standards for protecting data communicaiton and fire-alarm circuits are high.
  • Features
    • Surge Protective Device for Data Circuit Protection (SPD/DCP)
    • Category 6 Power-Over-Ethernet transmission line protection from surges, transients, and circulating ground current
    • To protect critical video, security, and computing equipment
    • Exceeds Category 6 transmission values
    • For loads up to 0.75A
    • Three stage hybrid protection
    • Complies with UL 497B
  • Complementary Attributes
    • Line Rated Current : 0.75 A
    • Ue Rated Operational Voltage : 48 V DC
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-07-09
    • Return Indicator : Y
    • Device Type : Surge Protection and Power Conditioning - Surge Protection Devices
    • Serviceability : No
    • Traceability : No
    • Scope Perimeter : Outside of Europe
    • Rohs Eur In Scope : Yes
    • With Recycled Cardboard : No
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : COMMERCIAL
    • Market Segmentation : Commercial
    • Product Kit Identifier : N
    • Energy Efficiency Optimized : False
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : surge protection device
    • Returnability : Yes
    • Sustainable Packaging : No
    • Switching Voltage : 68 V DC
    • Height Nominal : 33.4 mm
    • Width Nominal : 137 mm
    • Nbr. Of Units In Pkg. : 1
    • Customs Code : 8536308000
    • Warranty In Months : 18
  • Environment Attributes Main
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Eu Rohs Directive : Under investigation
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : Yes
  • General Attributes
    • Product Or Component Type : surge protection device
  • Surge Protection And Filtering Attributes
    • Surge Current : 10 kA
  • Specifications
    • Country of Origin : United States
    • Depth : 40.6 mm
