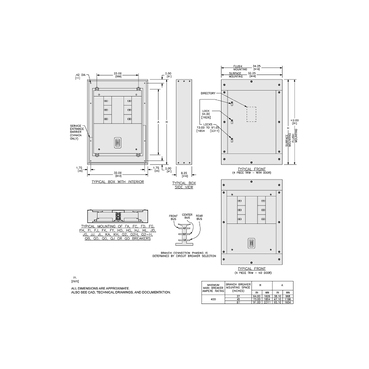

Box, I-Line Panelboard, HCM, 32in W x 91in H x 8.25in D, Type 1

PANELBOARD ENCLOSURE/BOX TYPE

SQDHC3291B HC3291B 785901790396
1530.63 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Box, I-Line Panelboard, HCM, 32in W x 91in H x 8.25in D, Type 1-2
  • Country of Origin: USA
  • Depth: 8.25 in
  • Enclosure Depth: 210 mm, 241 mm
  • Enclosure Height: 2311 mm
  • Enclosure Width: 813 mm
  • Height: 2311 mm, 91 in
  • Net Weight: 61.6 kg
  • Warranty Length: 18 mth
  • Weight: 61.6 kg
  • Width: 813 mm
Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. This HCM I-Line panelboard enclosure has a NEMA 1 degree of protection. This enclosure has current ratings of 225A, 400A & 800A. Dimensions for this enclosure are 2311 mm (H), 813 mm (W),210 mm (D). This product comes with an 18 month warranty.
QTY
  • Product Description
  • Features
  • Specifications
Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. This HCM I-Line panelboard enclosure has a NEMA 1 degree of protection. This enclosure has current ratings of 225A, 400A & 800A. Dimensions for this enclosure are 2311 mm (H), 813 mm (W),210 mm (D). This product comes with an 18 month warranty.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Standards : UL || CSA
    • Nema Degree Of Protection : NEMA 1
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP1407017EN
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : N/A
    • Take-Back : No
    • Pvc Free : Yes
  • Complementary
    • Height : 91 in
    • Enclosure Nominal Height : 2311 mm
    • Net Weight : 61.6 kg
    • Line Rated Current : 400 A || 800 A || 225 A || 600 A
    • Depth : 8.25 in
    • Enclosure Nominal Depth : 210 mm || 241 mm
    • Enclosure Nominal Width : 813 mm
  • Specifications
    • Country of Origin : United States
    • Width : 813 mm
    • Height : 2311 mm
    • Weight : 61.6 kg
    • Range Of Product : I-Line
    • Product Or Component Type : enclosure
    • Device Application : panelboard
    • Device Short Name : HCM
