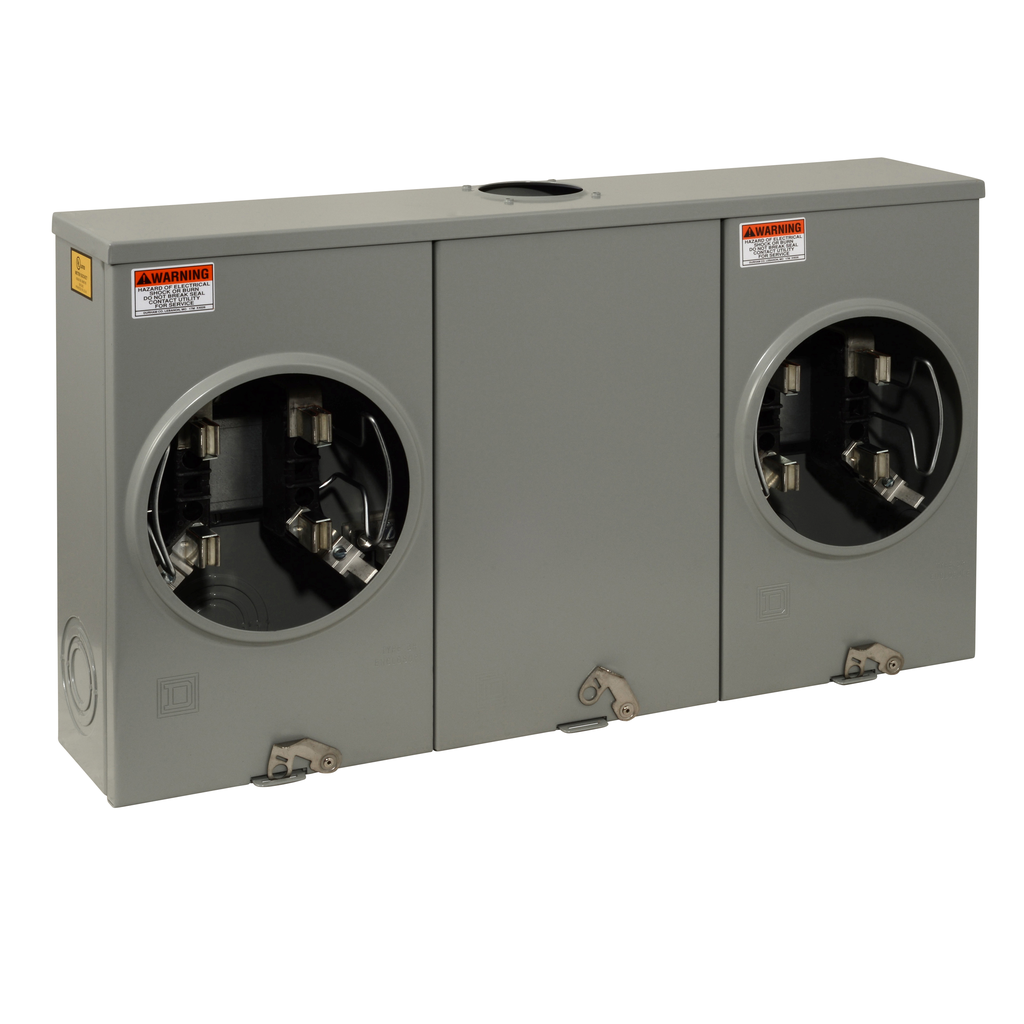

Horizontal meter sockets, 2 ringless sockets, no bypass, 4 jaws, OH, UG, 200 A

HORIZONTAL MTR RINGLESS OH/UG

SQDUT2R1121B UT2R1121B 785901291206
770.53 / EACH
http://schema.org/OutOfStock
Horizontal meter sockets, 2 ringless sockets, no bypass, 4 jaws, OH, UG, 200 A
  • Number of Jaws: 4 Without Jaw Release
  • Warranty Length: 18 mth
UT horizontal ganged meter sockets are for single phase systems up to 600 VAC. These main lug units can be from 2 through 6 meter positions. Units can be with or with a horn or lever bypass and be fed from the end or the center. This horizontal ganged meter socket has 2 meter positions without bypass. Each socket position has a 4 jaw socket without jaw release. The main is rated at 200A. The branches have a 100A rating. This unit can be feed from an overhead or underground service. This unit has a NEMA 3R surface mounting enclosure. The main lugs will accept one 6 AWG to 250 kcmil copper or aluminum wire. The branch lugs will accept 8 AWG to 250 kcmil copper or aluminum wire. This horizontal ganged meter socket device is UL Listed.
QTY
  • Product Description
  • Features
  • Specifications
UT horizontal ganged meter sockets are for single phase systems up to 600 VAC. These main lug units can be from 2 through 6 meter positions. Units can be with or with a horn or lever bypass and be fed from the end or the center. This horizontal ganged meter socket has 2 meter positions without bypass. Each socket position has a 4 jaw socket without jaw release. The main is rated at 200A. The branches have a 100A rating. This unit can be feed from an overhead or underground service. This unit has a NEMA 3R surface mounting enclosure. The main lugs will accept one 6 AWG to 250 kcmil copper or aluminum wire. The branch lugs will accept 8 AWG to 250 kcmil copper or aluminum wire. This horizontal ganged meter socket device is UL Listed.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : UL Listed
  • Complementary Attributes
    • Line Rated Current : 100 A
    • Ue Rated Operational Voltage : 600 V AC
  • Important Information Attributes
    • Persona Type Ids : EU, LC
    • Persona Type Names : End User, Contractor
    • Awg Gauge : AWG 8...AWG 2/0 (copper) branch lugs, AWG 6...250 kcmil (aluminium) main lugs, AWG 6...250 kcmil (copper) main lugs, AWG 8...AWG 2/0 (aluminium) branch lugs
    • Service Feed Location : UG, OH
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Global Commercial Status : Commercialised
    • Return Indicator : N
    • Stocking Flag : Y
    • Stock Policy : 2
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Meter enclosures
    • H And D Enrichment Class 4 : single-phase multi-tenant meter enclosure
    • Device Type : Relay, Control & Measurement - measuring, monitoring device
    • Serviceability : No
    • Traceability : No
    • Legacy Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 3
    • Tier : 3
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • Product Kit Identifier : N
    • Box Number : 13R
    • Energy Efficiency Optimized : False
    • Hub Type : A ACP closing plate
    • Meter Socket Type : ringless
    • Number Of Jaws : 4 without jaw release
    • Number Of Meter Sockets : 2
    • Phase : 1 phase
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : Meter Socket
    • Returnability : No
    • Sustainable Packaging : No
    • Wiring Configuration : 3-wire
    • Warranty In Months : 18
    • Offer Owner Code : 190788
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Eu Rohs Directive : Compliant By Exemption
    • Nema Degree Of Protection : NEMA 3R
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • General Attributes
    • Phase : 1 phase
    • Product Or Component Type : Meter Socket
  • Output Attributes
    • Bypass Type : no bypass
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
