SQUARE D

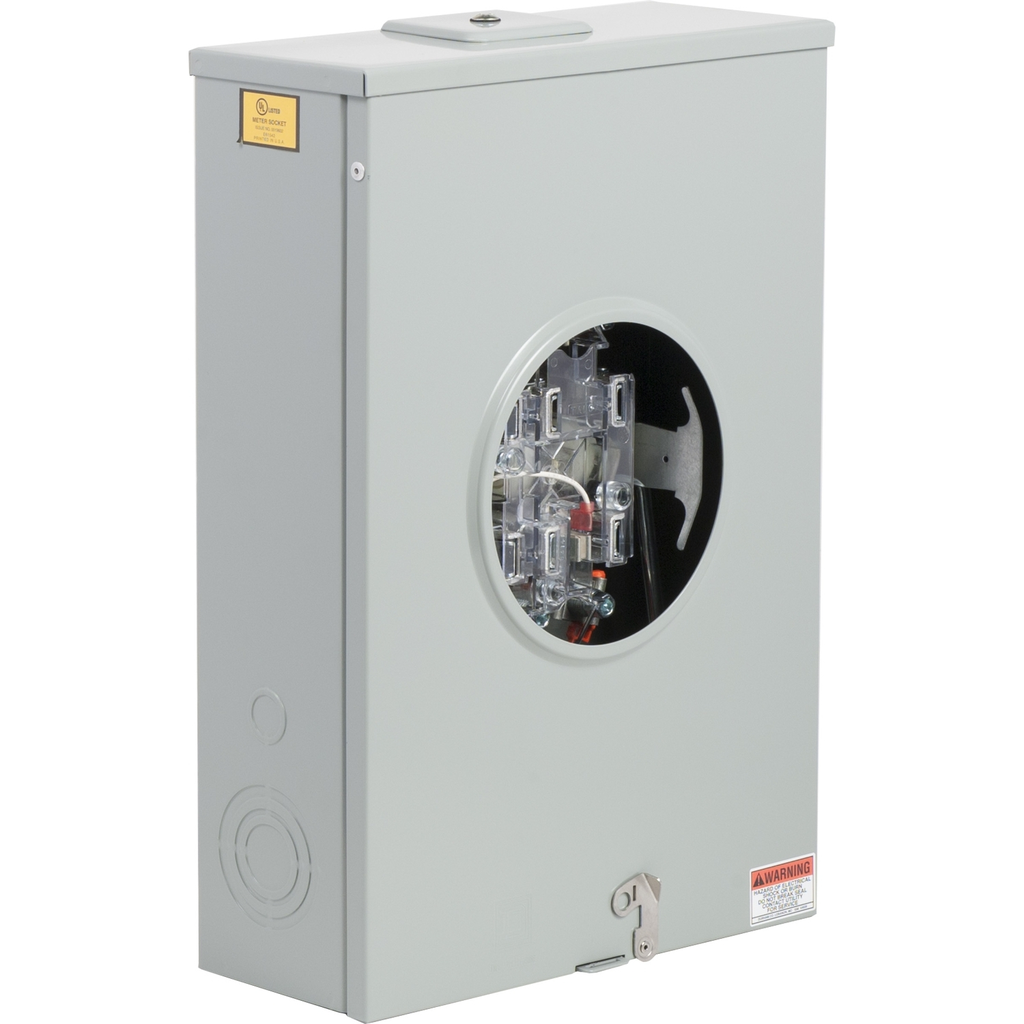

Meter socket, ringless, 3 phase, 4 wire, 7 jaws, Series A, lever bypass, jaw release

MTR SKT 200A 3PH HCP

SQDUH7213C UH7213C 785901690528
845.87 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Meter socket, ringless, 3 phase, 4 wire, 7 jaws, Series A, lever bypass, jaw release-1
  • Country of Origin: USA
  • Enclosure Material: Steel
  • Number of Jaws: 7 With Jaw Release
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL Listed
    • Nema Degree Of Protection : NEMA 3R
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Take-Back : No
    • Sustainable Packaging : No
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Service Feed Location : OH || UG
    • Meter Socket Rated Current : 200 A
    • Device Mounting : surface
    • [Ue] Rated Operational Voltage : 600 V AC
    • Bypass Type : lever bypass
    • Electrical Connection : lugs 0.5" hex
    • Phase : 3 phase
    • Enclosure Material : steel
    • Awg Gauge : AWG 6...350 kcmil aluminium/copper)line side || AWG 6...350 kcmil aluminium/copper)service ground
    • Wiring Configuration : 3-wire
    • Number Of Jaws : 7 with jaw release
  • Specifications
    • Country of Origin : United States
    • Product Or Component Type : Meter Socket
    • Hub Type : A ACP closing plate
    • Meter Socket Type : ringless
