SQUARE D

Meter socket, ringless socket, no bypass, 125 A, 600 VAC, 1 phase, 4 jaws, no jaw release, OH/UG

METER SOCKET RINGLESS OH/UG 12

SQDUTRS101B UTRS101B 785901626633
92.64 / EACH
http://schema.org/OutOfStock

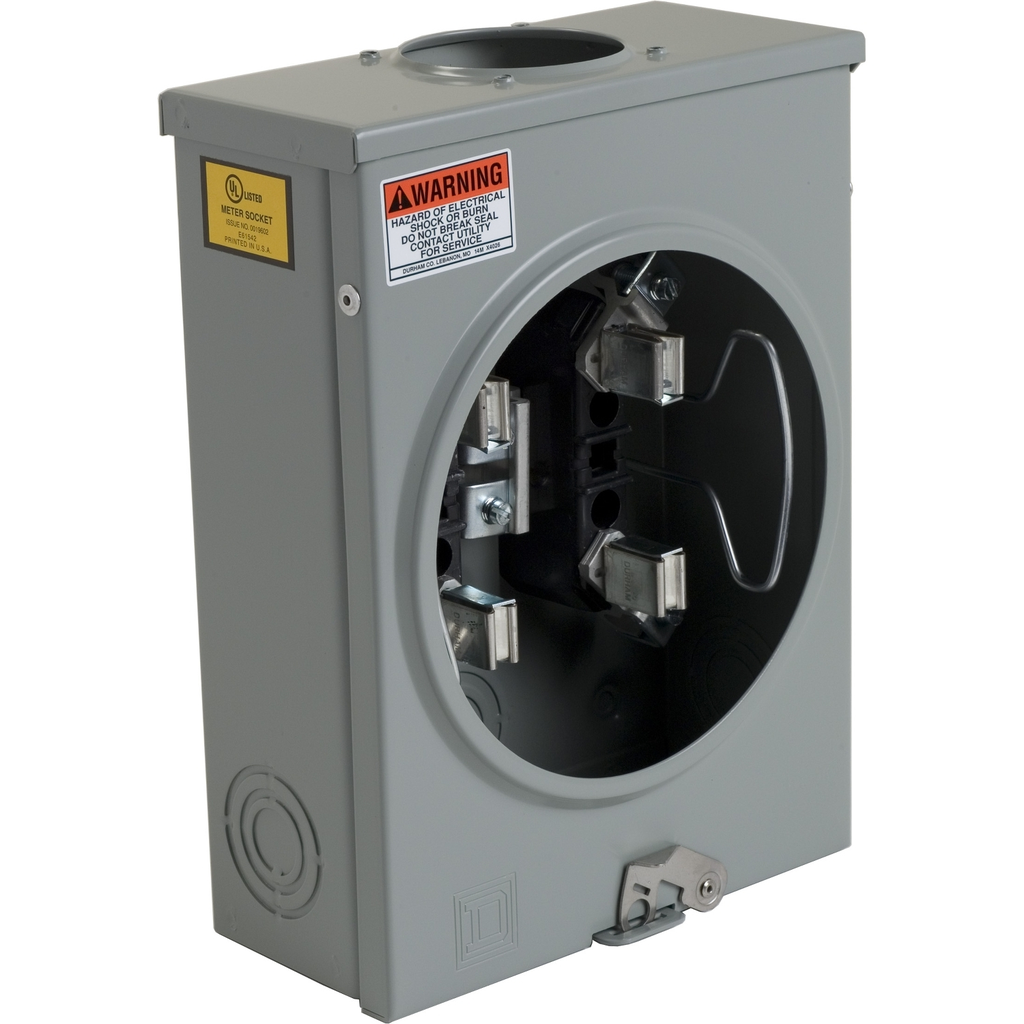

Mayer-DDS-Meter socket, ringless socket, no bypass, 125 A, 600 VAC, 1 phase, 4 jaws, no jaw release, OH/UG-2
  • Country of Origin: USA
  • Depth: 3.5 in
  • Enclosure Material: Steel
  • Height: 10.88 in
  • Warranty Length: 18 mth
  • Width: 8.00 in
Individual Meter Sockets are available for single or three phase with a 600 VAC maximum. These individual meter sockets can be with and without horn or lever bypass. The sockets have a 10 kA short circuit current rating as standard but could have a highe
QTY
  • Product Description
  • Features
  • Specifications
Individual Meter Sockets are available for single or three phase with a 600 VAC maximum. These individual meter sockets can be with and without horn or lever bypass. The sockets have a 10 kA short circuit current rating as standard but could have a highe
  • Hub Type
    • A ACP closing plate
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more
  • Ue Rated Operational Voltage
    • 600 V AC
  • Electrical Connection
    • lugs slotted
  • Persona Type Names
    • End User
    • Consumer
    • Contractor
    • Electrician
  • Persona Type Ids
    • EU
    • EUA
    • LC
    • SC
  • AWG Gauge
    • AWG 8...AWG 2/0 1 aluminium/copper)line
    • AWG 14...AWG 2 1 aluminium/copper)service ground
    • AWG 14...AWG 2 1 aluminium/copper)service gro
  • Number Of Jaws
    • 4 without jaw release
  • Conformance Attributes
    • Product Certifications : UL Listed
  • Complementary Attributes
    • Meter Socket Rated Current : 125 A
  • Important Information Attributes
    • B2B Bullet Point 1 : Individual meter socket, ringless socket, no bypass, 4 jaws no release, OH, UG, 125 A, up to 600 VAC single phase 3W
    • B2B Bullet Point 2 : Protects against accidental shocks through the use of touch-safe terminals
    • B2B Bullet Point 3 : Conforms to the electrical characteristics in the data sheet by UL
    • B2B Bullet Point 4 : Product characteristics conformity is certified by UL
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-09-15
    • Device Type : Relay, Control & Measurement - measuring, monitoring device
    • Serviceability : No
    • Traceability : No
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • ROHS Eur In Scope : Yes
    • ROHS Eur Full Compliance Status : Under investigation
    • ROHS Eur Full Compliance Status Id : UNDER_INVESTIGATION
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Meter enclosures
    • H And D Enrichment Class 4 : Single-phase individual meter enclosure
    • Box Number : 1R
    • Enclosure Material : steel
    • Energy Efficiency Optimized : False
    • Meter Socket Type : ringless
    • Package Weight Lbs : 3.130 kg
    • Phase : 1 phase
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Meter Socket
    • Returnability : Yes
    • Service Feed Location : OH
    • Sustainable Packaging : No
    • Wiring Configuration : 3-wire
  • General Attributes
    • Phase : 1 phase
    • Product Or Component Type : Meter Socket
  • Output Attributes
    • Bypass Type : no bypass
  • Environment Attributes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Eu Rohs Directive : Under investigation
    • Nema Degree Of Protection : NEMA 3R
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : United States
    • Height : 10.88 in
    • Width : 8.00 in
    • Depth : 3.50 in
